M74HC109RM13TR

M74HC109RM13TR Overview

This product is manufactured by STMicroelectronics. This product has 2 circuit. The product uses the 74HC logic family. J-K Type Flip-Flop. Polarity type: Inverting/Non-Inverting Single-Ended input type The output type is Differential. The propagation delay time is 150 ns. This product has a - 5.2 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 5.2 mA Supply Voltage - Min: 2 V Supply Voltage - Max: 6 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SOP-16 package/case type is utilized by this product. Reel packaging for easy dispensing t's a High Speed CMOS Dual J-K Flip-Flop with Preset and Clear The height of the product is 1.65 mm. 10 mm long STMicroelectronics is a trusted brand for quality electronics This product is equipped with 2 for efficient performance. 2 V to 6 V operating supply voltage range Flip Flops product type Set, Reset Reset Type 2500 of 100 Logic ICs as subcategory 1. 0.008536 oz of Unit Weight

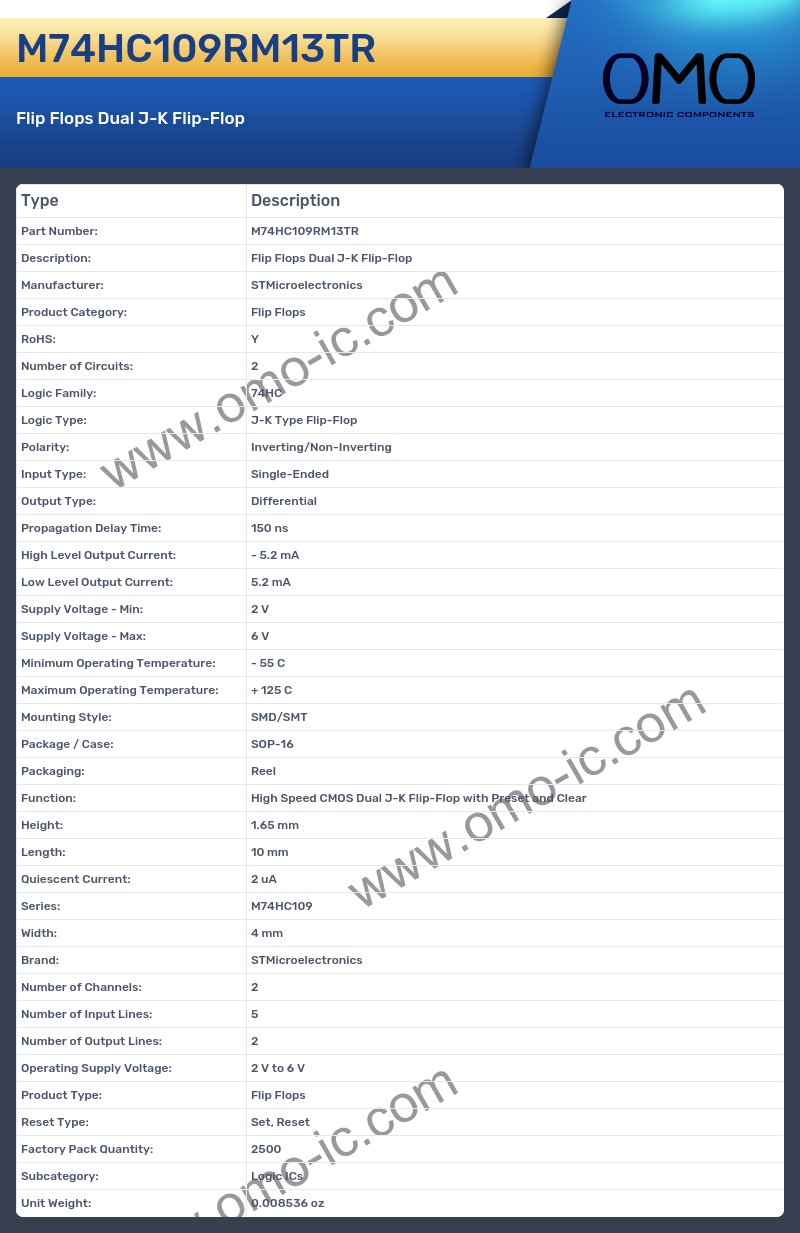

M74HC109RM13TR Image

M74HC109RM13TR Specifications

• Manufacturer: STMicroelectronics
• Product Category: Flip Flops
• RoHS: Y
• Number of Circuits: 2
• Logic Family: 74HC
• Logic Type: J-K Type Flip-Flop
• Polarity: Inverting/Non-Inverting
• Input Type: Single-Ended
• Output Type: Differential
• Propagation Delay Time: 150 ns
• High Level Output Current: - 5.2 mA
• Low Level Output Current: 5.2 mA
• Supply Voltage - Min: 2 V
• Supply Voltage - Max: 6 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SOP-16
• Packaging: Reel
• Function: High Speed CMOS Dual J-K Flip-Flop with Preset and Clear
• Height: 1.65 mm
• Length: 10 mm
• Quiescent Current: 2 uA
• Series: M74HC109
• Width: 4 mm
• Brand: STMicroelectronics
• Number of Channels: 2
• Number of Input Lines: 5
• Number of Output Lines: 2
• Operating Supply Voltage: 2 V to 6 V
• Product Type: Flip Flops
• Reset Type: Set, Reset
• Factory Pack Quantity: 2500
• Subcategory: Logic ICs
• Unit Weight: 0.008536 oz
