M74HC42B1R

M74HC42B1R Overview

This product is manufactured by STMicroelectronics. Decoders The product uses the 74HC logic family. Supply Voltage - Min: 2 V Supply Voltage - Max: 6 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of Through Hole. DIP-16 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Decoder The height of the product is 5.1 mm. - 0.5 V to + 0.5 V Input Voltage 20 mm long This product has Dual circuit. Output current: +/- 25 mA Output Voltage is - 0.5 V to + 0.5 V STMicroelectronics is a trusted brand for quality electronics Decoder. Maximum supply current: 0.004 mA This product has a - 5.2 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 5.2 mA 2 V to 6 V operating supply voltage range 500 mW (1/2 W) Encoders, Decoders, Multiplexers & Demultiplexers product type 1000 of 100 Logic ICs as subcategory 1. 0.057419 oz of Unit Weight

M74HC42B1R Image

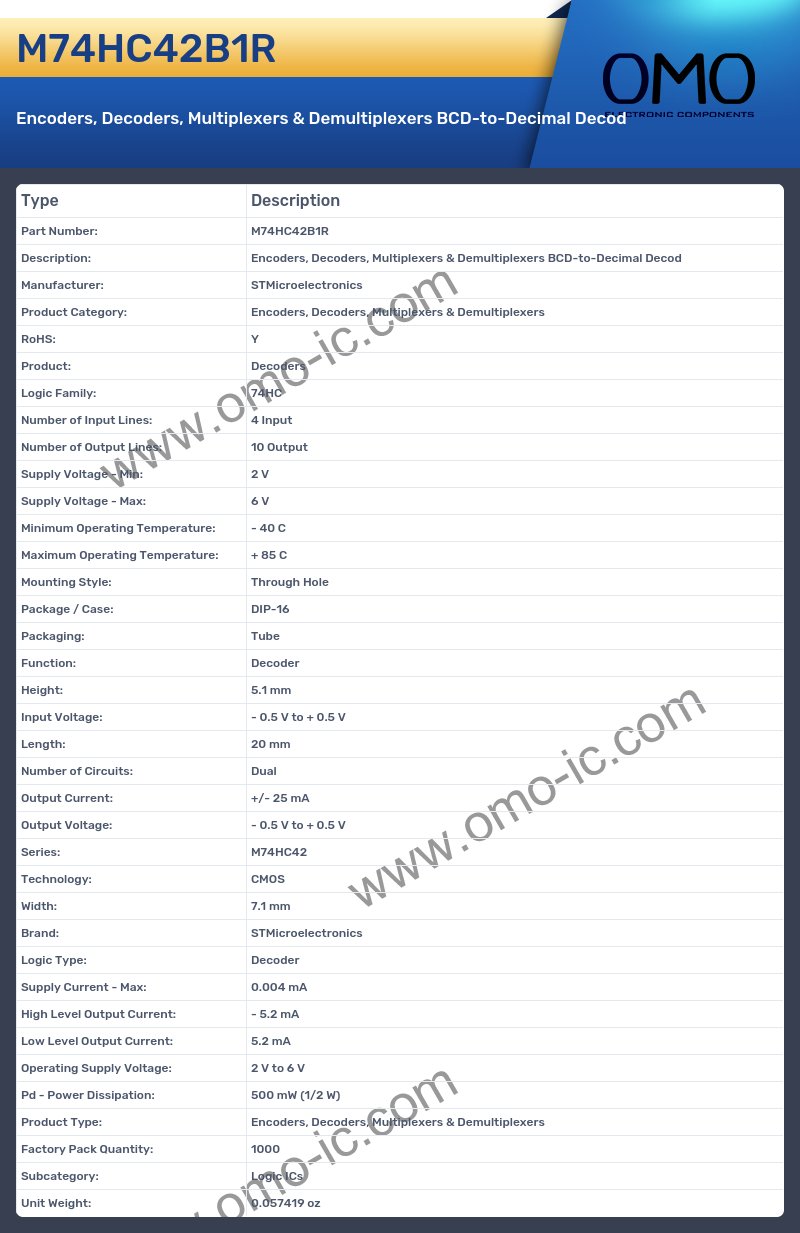

M74HC42B1R Specifications

• Manufacturer: STMicroelectronics
• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• RoHS: Y
• Product: Decoders
• Logic Family: 74HC
• Number of Input Lines: 4 Input
• Number of Output Lines: 10 Output
• Supply Voltage - Min: 2 V
• Supply Voltage - Max: 6 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: Through Hole
• Package / Case: DIP-16
• Packaging: Tube
• Function: Decoder
• Height: 5.1 mm
• Input Voltage: - 0.5 V to + 0.5 V
• Length: 20 mm
• Number of Circuits: Dual
• Output Current: +/- 25 mA
• Output Voltage: - 0.5 V to + 0.5 V
• Series: M74HC42
• Technology: CMOS
• Width: 7.1 mm
• Brand: STMicroelectronics
• Logic Type: Decoder
• Supply Current - Max: 0.004 mA
• High Level Output Current: - 5.2 mA
• Low Level Output Current: 5.2 mA
• Operating Supply Voltage: 2 V to 6 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
• Factory Pack Quantity: 1000
• Subcategory: Logic ICs
• Unit Weight: 0.057419 oz
