MC9S08PL4CTJ

MC9S08PL4CTJ Overview

This product is manufactured by NXP. The product can operate at a maximum temperature of SMD/SMT. TSSOP-20 package/case type is utilized by this product. This product's S08 is an ARM Cortex M3. This product has a Data Bus Width of 8 bit. The Maximum Clock Frequency of this product is 20 MHz. The Program Memory Size of this product is 4 kB. The Data RAM Size of this product is 512 B. The ADC Resolution of this product is 10 bit. 2.7 V to 5.5 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing MCU The Flash of this product is Flash. NXP Semiconductors is a trusted brand for quality electronics The RAM. The Data ROM Size is 128 B. EEPROM is the data ROM type. Interface Type: LIN, SCI, UART Yes regarding Moisture Sensitivity The product has 8 Channel ADC channels. 8-bit Microcontrollers - MCU product type 75 of 100 Microcontrollers - MCU as subcategory Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2.7 V This product is also known by the 935372433574 number of 934069005115.

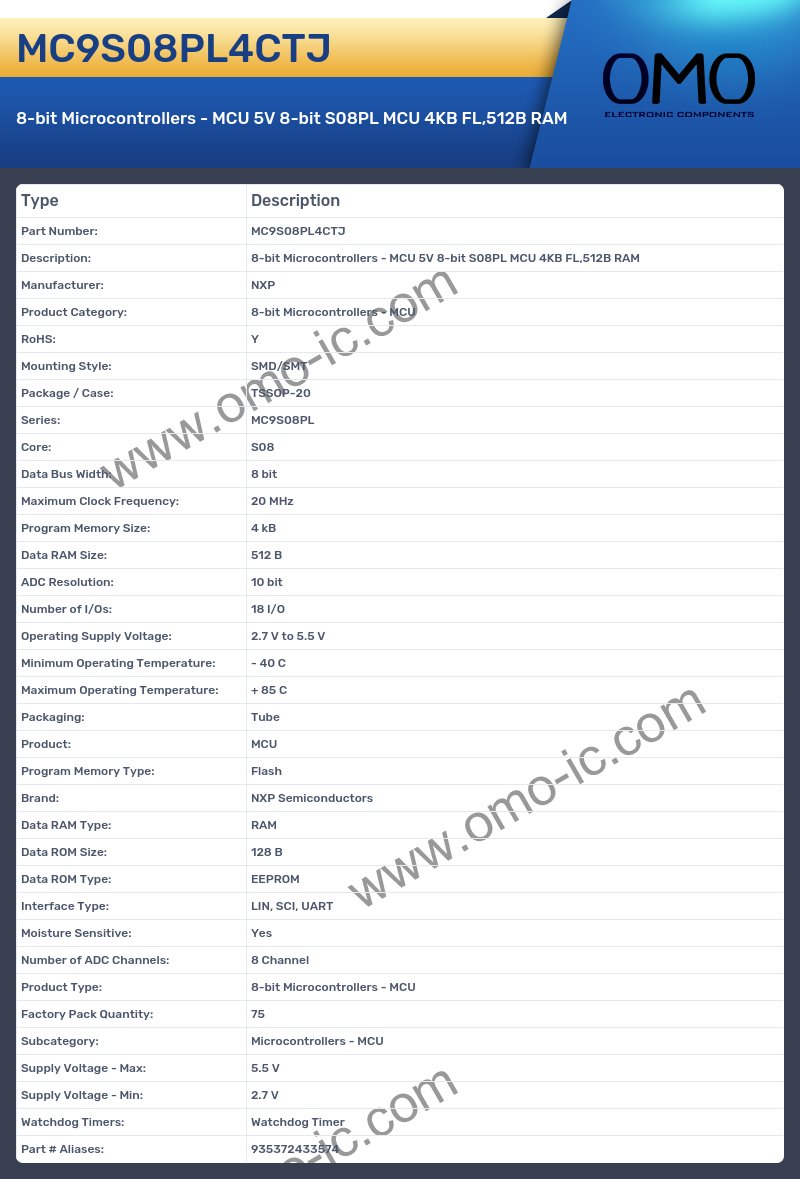

MC9S08PL4CTJ Image

MC9S08PL4CTJ Specifications

• Manufacturer: NXP
• Product Category: 8-bit Microcontrollers - MCU
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-20
• Series: MC9S08PL
• Core: S08
• Data Bus Width: 8 bit
• Maximum Clock Frequency: 20 MHz
• Program Memory Size: 4 kB
• Data RAM Size: 512 B
• ADC Resolution: 10 bit
• Number of I/Os: 18 I/O
• Operating Supply Voltage: 2.7 V to 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Product: MCU
• Program Memory Type: Flash
• Brand: NXP Semiconductors
• Data RAM Type: RAM
• Data ROM Size: 128 B
• Data ROM Type: EEPROM
• Interface Type: LIN, SCI, UART
• Moisture Sensitive: Yes
• Number of ADC Channels: 8 Channel
• Product Type: 8-bit Microcontrollers - MCU
• Factory Pack Quantity: 75
• Subcategory: Microcontrollers - MCU
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2.7 V
• Watchdog Timers: Watchdog Timer
• Part # Aliases: 935372433574
