PGA205BUG4 Overview

This product is manufactured by Texas Instruments. This product is equipped with 1 Channel for efficient performance. This product has a 80 dB of 50 dB, ensuring reliable signal acquisition. This product has an 2 nA of 5 uA for precise signal processing. Supply Voltage - Max: 36 V Supply Voltage - Min: 9 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is PGA. This product has a 1 MHz of 2.7 GHz to 3.5 GHz. Instrumentation Amplifiers Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. Voltage Feedback Topology Bandwidth at -3 dB is 1 MHz 0.024 % is 0.2%. Gain ratio is 1 V/V, 2 V/V, 4 V/V, 8 V/V. INL is within 0.002 % Yes regarding Moisture Sensitivity 9 V to 36 V operating supply voltage range Instrumentation Amplifiers product type 40 of 100 Amplifier ICs as subcategory 1. 0.014829 oz of Unit Weight

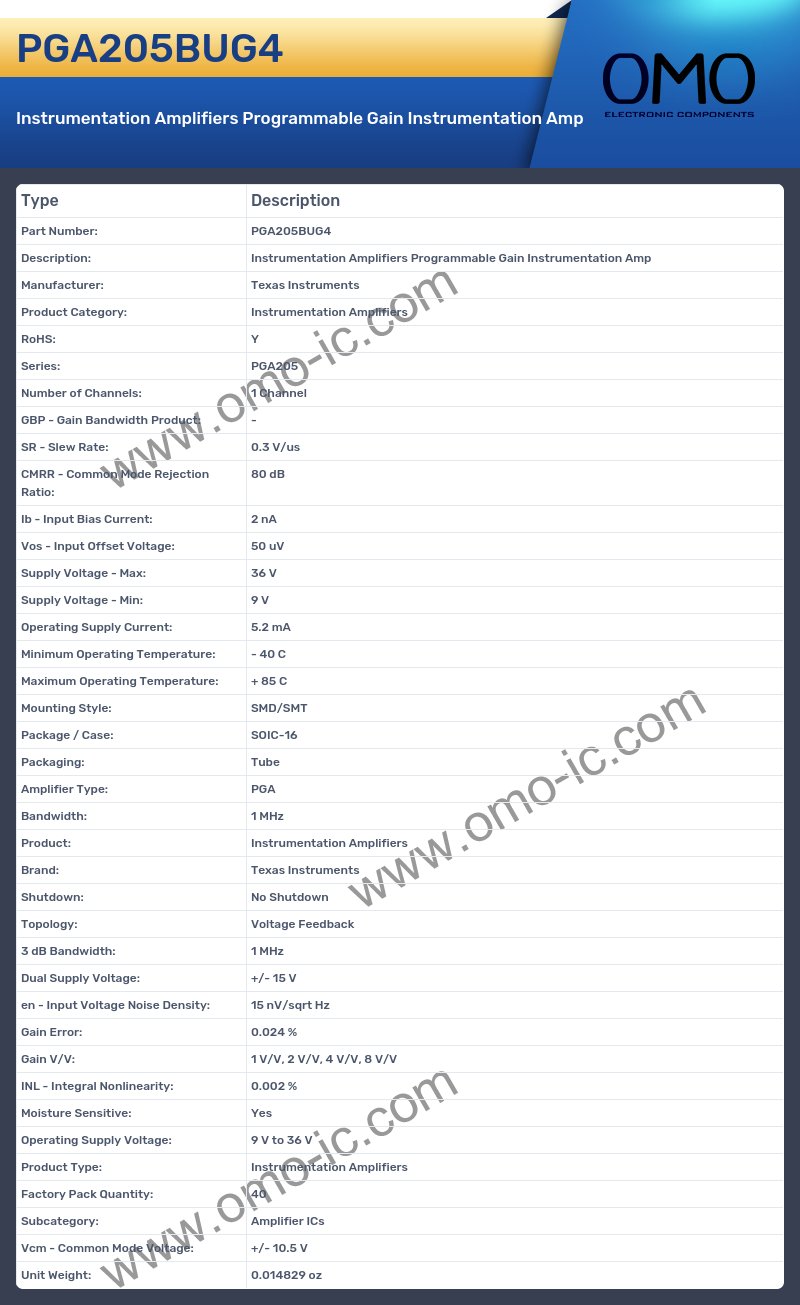

PGA205BUG4 Image

PGA205BUG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Instrumentation Amplifiers
• RoHS: Y
• Series: PGA205
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: -
• SR - Slew Rate: 0.3 V/us
• CMRR - Common Mode Rejection Ratio: 80 dB
• Ib - Input Bias Current: 2 nA
• Vos - Input Offset Voltage: 50 uV
• Supply Voltage - Max: 36 V
• Supply Voltage - Min: 9 V
• Operating Supply Current: 5.2 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Packaging: Tube
• Amplifier Type: PGA
• Bandwidth: 1 MHz
• Product: Instrumentation Amplifiers
• Brand: Texas Instruments
• Shutdown: No Shutdown
• Topology: Voltage Feedback
• 3 dB Bandwidth: 1 MHz
• Dual Supply Voltage: +/- 15 V
• en - Input Voltage Noise Density: 15 nV/sqrt Hz
• Gain Error: 0.024 %
• Gain V/V: 1 V/V, 2 V/V, 4 V/V, 8 V/V
• INL - Integral Nonlinearity: 0.002 %
• Moisture Sensitive: Yes
• Operating Supply Voltage: 9 V to 36 V
• Product Type: Instrumentation Amplifiers
• Factory Pack Quantity: 40
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: +/- 10.5 V
• Unit Weight: 0.014829 oz
