SG2525AP

SG2525AP Overview

This product is manufactured by STMicroelectronics. 2 Output is the number of outputs provided by this product. 100 Hz to 400 kHz is 60 kHz. 8 V to 35 V Input Voltage Output Voltage is 5.1 V Output current: 500 mA The minimum operating temperature of this product is - 25 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SO-16 package/case type is utilized by this product. Tube packaging for easy dispensing Non-Isolated is the isolation property. Voltage Controllers This device belongs to the PWM Controllers type. STMicroelectronics is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. 50 ns fall time Yes regarding Moisture Sensitivity 8 V to 35 V operating supply voltage range Switching Controllers product type Rise Time is 100 ns. 1000 of 100 PMIC - Power Management ICs as subcategory 1. 0.007079 oz of Unit Weight

SG2525AP Image

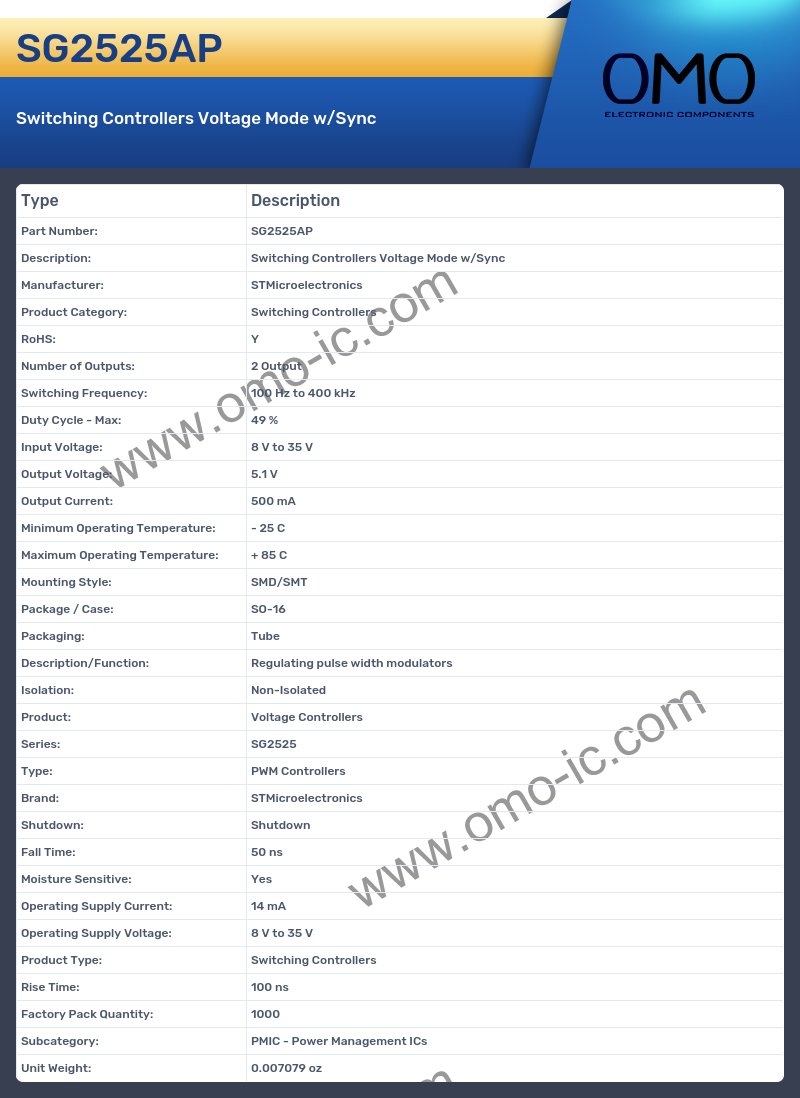

SG2525AP Specifications

• Manufacturer: STMicroelectronics
• Product Category: Switching Controllers
• RoHS: Y
• Number of Outputs: 2 Output
• Switching Frequency: 100 Hz to 400 kHz
• Duty Cycle - Max: 49 %
• Input Voltage: 8 V to 35 V
• Output Voltage: 5.1 V
• Output Current: 500 mA
• Minimum Operating Temperature: - 25 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SO-16
• Packaging: Tube
• Description/Function: Regulating pulse width modulators
• Isolation: Non-Isolated
• Product: Voltage Controllers
• Series: SG2525
• Type: PWM Controllers
• Brand: STMicroelectronics
• Shutdown: Shutdown
• Fall Time: 50 ns
• Moisture Sensitive: Yes
• Operating Supply Current: 14 mA
• Operating Supply Voltage: 8 V to 35 V
• Product Type: Switching Controllers
• Rise Time: 100 ns
• Factory Pack Quantity: 1000
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.007079 oz
