SN74F04DR

SN74F04DR Overview

This product is manufactured by Texas Instruments. This product has 6 Circuit circuit. The product uses the F logic family. Bipolar. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. Reel packaging for easy dispensing t's a Hex TTL input type The output type is CMOS. Texas Instruments is a trusted brand for quality electronics This product has a - 1 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 20 mA 5 V operating supply voltage range Inverters product type The propagation delay time is 6 ns. 2500 of 100 Logic ICs as subcategory 1. 0.004564 oz of Unit Weight

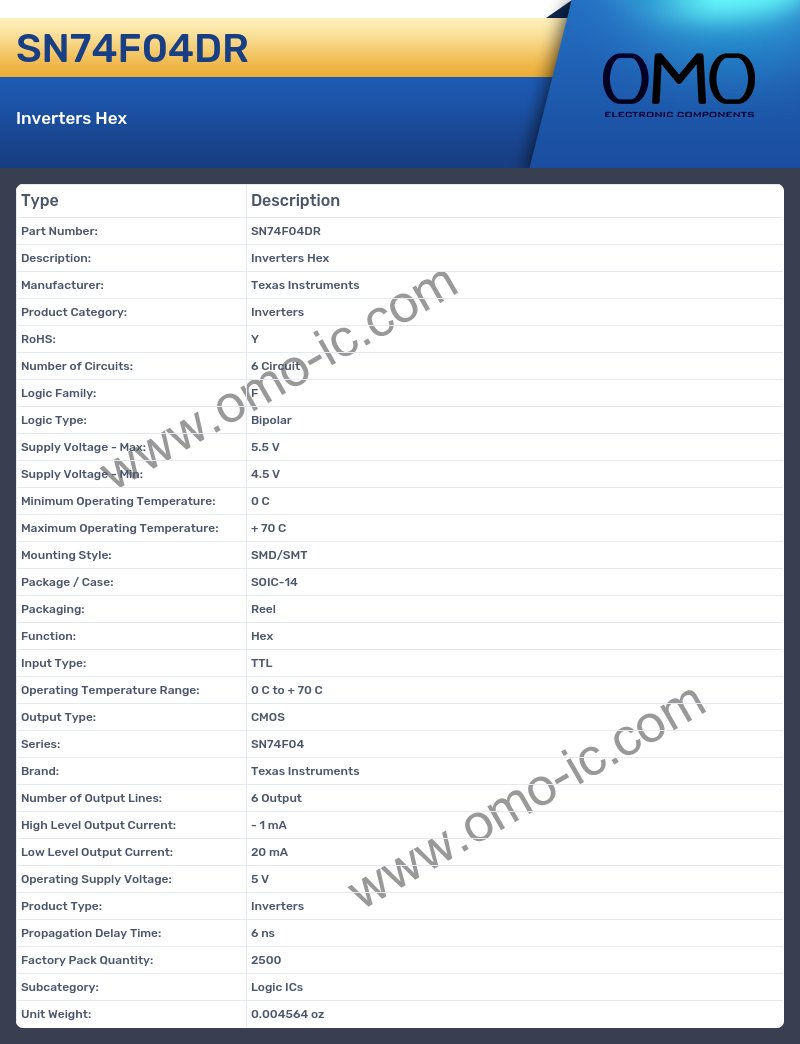

SN74F04DR Image

SN74F04DR Specifications

• Manufacturer: Texas Instruments
• Product Category: Inverters
• RoHS: Y
• Number of Circuits: 6 Circuit
• Logic Family: F
• Logic Type: Bipolar
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-14
• Packaging: Reel
• Function: Hex
• Input Type: TTL
• Operating Temperature Range: 0 C to + 70 C
• Output Type: CMOS
• Series: SN74F04
• Brand: Texas Instruments
• Number of Output Lines: 6 Output
• High Level Output Current: - 1 mA
• Low Level Output Current: 20 mA
• Operating Supply Voltage: 5 V
• Product Type: Inverters
• Propagation Delay Time: 6 ns
• Factory Pack Quantity: 2500
• Subcategory: Logic ICs
• Unit Weight: 0.004564 oz
