SN74HC595PW Overview

This product is manufactured by Texas Instruments. Serial to Serial/Parallel is the counting sequence used. This product has 1 circuit. Number of bits: 8 bit TSSOP-16 package/case type is utilized by this product. The product uses the HC logic family. CMOS. The output type is 3-State. The propagation delay time is 200 ns, 40 ns, 34 ns. Supply Voltage - Min: 2 V Supply Voltage - Max: 6 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing t's a Shift Register The height of the product is 1.15 mm. 5 mm long Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. Maximum supply current: 0.008 mA 5 V operating supply voltage range Counter Shift Registers product type Asynchronous Reset Type 90 of 100 Logic ICs as subcategory This product's Positive Edge. 1. 0.002116 oz of Unit Weight

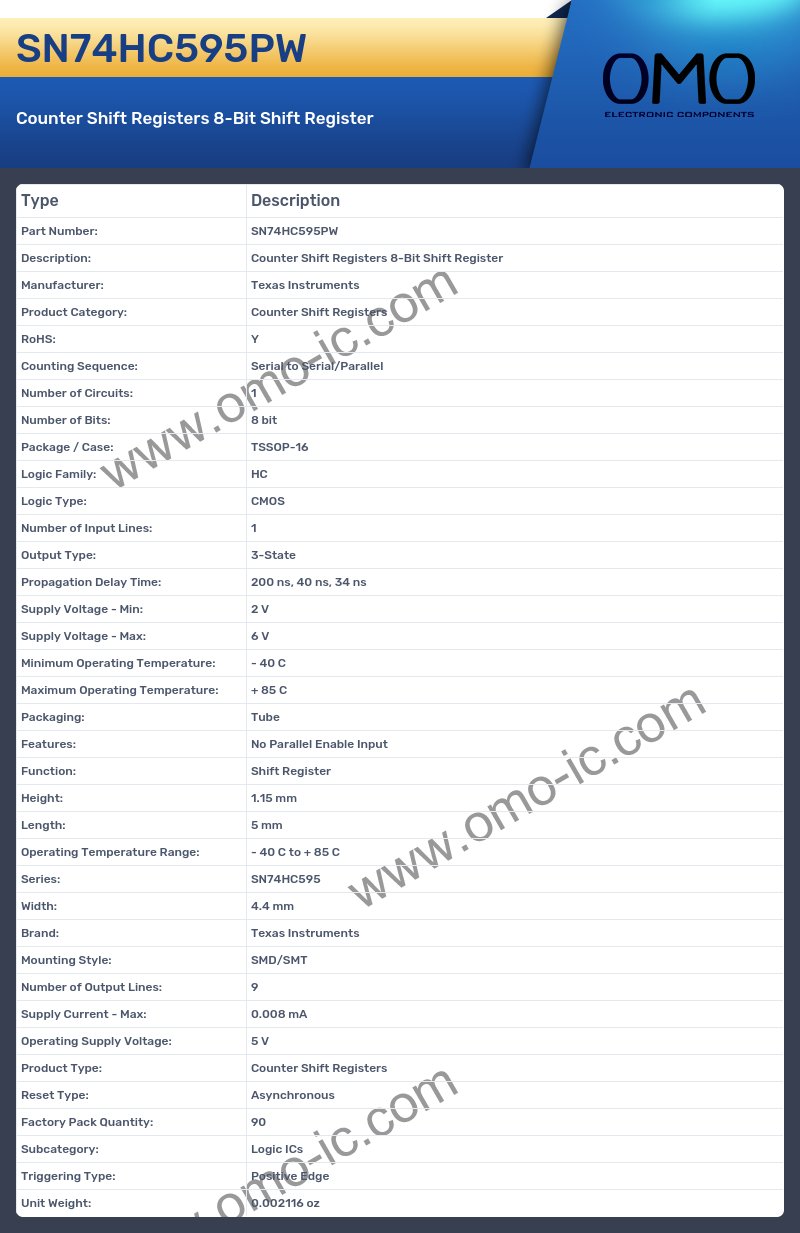

SN74HC595PW Image

SN74HC595PW Specifications

• Manufacturer: Texas Instruments
• Product Category: Counter Shift Registers
• RoHS: Y
• Counting Sequence: Serial to Serial/Parallel
• Number of Circuits: 1
• Number of Bits: 8 bit
• Package / Case: TSSOP-16
• Logic Family: HC
• Logic Type: CMOS
• Number of Input Lines: 1
• Output Type: 3-State
• Propagation Delay Time: 200 ns, 40 ns, 34 ns
• Supply Voltage - Min: 2 V
• Supply Voltage - Max: 6 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Features: No Parallel Enable Input
• Function: Shift Register
• Height: 1.15 mm
• Length: 5 mm
• Operating Temperature Range: - 40 C to + 85 C
• Series: SN74HC595
• Width: 4.4 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Output Lines: 9
• Supply Current - Max: 0.008 mA
• Operating Supply Voltage: 5 V
• Product Type: Counter Shift Registers
• Reset Type: Asynchronous
• Factory Pack Quantity: 90
• Subcategory: Logic ICs
• Triggering Type: Positive Edge
• Unit Weight: 0.002116 oz
