SN74HC646DWG4

SN74HC646DWG4 Overview

This product is manufactured by Texas Instruments. The product uses the HC logic family. The product's CMOS input level ensures compatibility with a wide range of devices. CMOS Output Level for flexible output configuration The output type is 3-State. This product has a - 7.8 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 7.8 mA The propagation delay time is 265 ns. Supply Voltage - Max: 6 V Supply Voltage - Min: 2 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. SOIC-24 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Bus Transceiver / Register The height of the product is 2.35 mm. 15.4 mm long This product has 1 circuit. CMOS Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. This product is equipped with 8 for efficient performance. Maximum supply current: 8 uA 5 V operating supply voltage range Polarity type: Non-Inverting Bus Transceivers product type 25 of 100 Logic ICs as subcategory This product's Positive Edge. 1. 0.022025 oz of Unit Weight

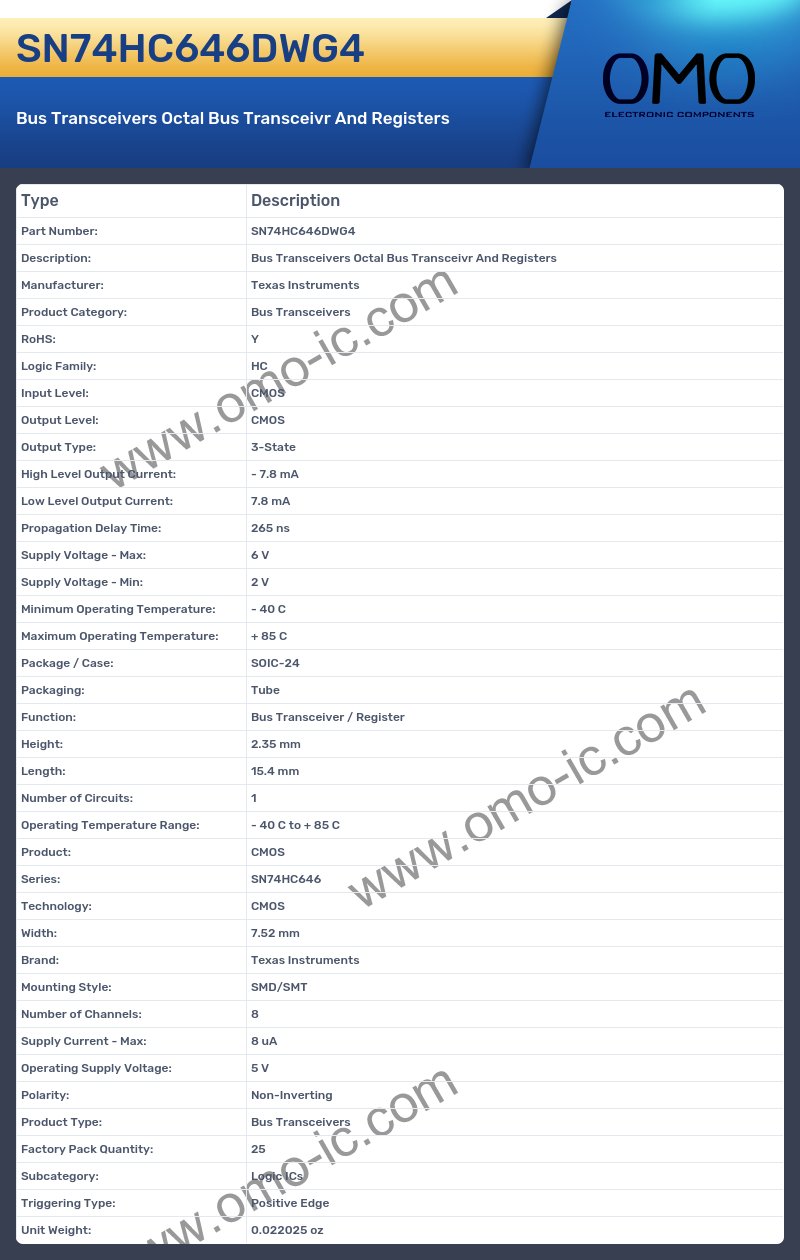

SN74HC646DWG4 Image

SN74HC646DWG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Bus Transceivers
• RoHS: Y
• Logic Family: HC
• Input Level: CMOS
• Output Level: CMOS
• Output Type: 3-State
• High Level Output Current: - 7.8 mA
• Low Level Output Current: 7.8 mA
• Propagation Delay Time: 265 ns
• Supply Voltage - Max: 6 V
• Supply Voltage - Min: 2 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Package / Case: SOIC-24
• Packaging: Tube
• Function: Bus Transceiver / Register
• Height: 2.35 mm
• Length: 15.4 mm
• Number of Circuits: 1
• Operating Temperature Range: - 40 C to + 85 C
• Product: CMOS
• Series: SN74HC646
• Technology: CMOS
• Width: 7.52 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Channels: 8
• Supply Current - Max: 8 uA
• Operating Supply Voltage: 5 V
• Polarity: Non-Inverting
• Product Type: Bus Transceivers
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Triggering Type: Positive Edge
• Unit Weight: 0.022025 oz
