SN74LS684NSR

SN74LS684NSR Overview

This product is manufactured by Texas Instruments. The comparator type of this product is Magnitude/Identity for versatile use. Number of bits: 8 bit A = B, A > B logic function The output type is Active Low. Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.85 V Maximum supply current: 65 mA The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The propagation delay time is 30 ns. The product can operate at a maximum temperature of SMD/SMT. SO-20 package/case type is utilized by this product. Reel packaging for easy dispensing Digital Comparators Texas Instruments is a trusted brand for quality electronics 4.85 V to 5.25 V operating supply voltage range Polarity type: Inverting Logic Comparators product type 2000 of 100 Logic ICs as subcategory 1. 0.009408 oz of Unit Weight

SN74LS684NSR Image

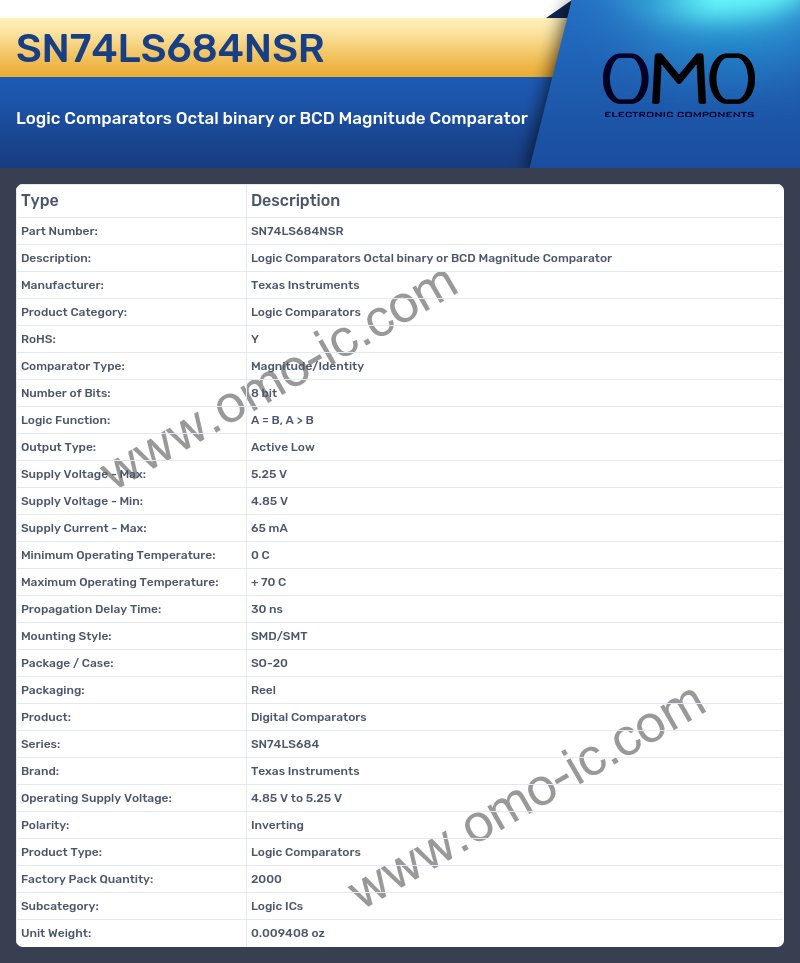

SN74LS684NSR Specifications

• Manufacturer: Texas Instruments
• Product Category: Logic Comparators
• RoHS: Y
• Comparator Type: Magnitude/Identity
• Number of Bits: 8 bit
• Logic Function: A = B, A > B
• Output Type: Active Low
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.85 V
• Supply Current - Max: 65 mA
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Propagation Delay Time: 30 ns
• Mounting Style: SMD/SMT
• Package / Case: SO-20
• Packaging: Reel
• Product: Digital Comparators
• Series: SN74LS684
• Brand: Texas Instruments
• Operating Supply Voltage: 4.85 V to 5.25 V
• Polarity: Inverting
• Product Type: Logic Comparators
• Factory Pack Quantity: 2000
• Subcategory: Logic ICs
• Unit Weight: 0.009408 oz
