STB75NF20

STB75NF20 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. TO-263-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 200 V 75 A continuous drain current Rds On value of 34 mOhms Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 50 C. The product can operate at a maximum temperature of + 150 C. 190 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's STripFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 4.6 mm. 10.4 mm long The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics Minimum forward transconductance of 40 S 29 ns fall time MOSFET product type Rise Time is 33 ns. 1000 of 100 MOSFETs as subcategory Turn-off delay time is 75 ns. The typical turn-on delay time is 53 ns. 1. 0.139332 oz of Unit Weight

STB75NF20 Image

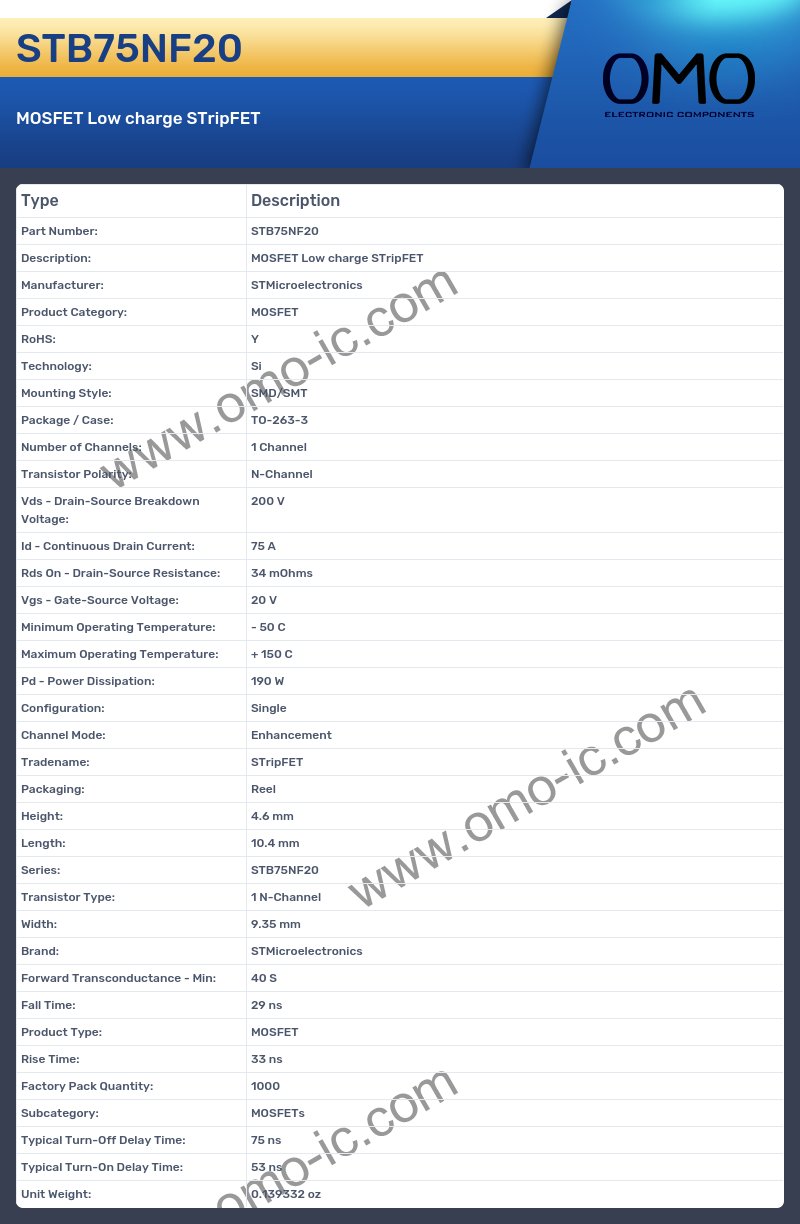

STB75NF20 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: TO-263-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 200 V
• Id - Continuous Drain Current: 75 A
• Rds On - Drain-Source Resistance: 34 mOhms
• Vgs - Gate-Source Voltage: 20 V
• Minimum Operating Temperature: - 50 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 190 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: STripFET
• Packaging: Reel
• Height: 4.6 mm
• Length: 10.4 mm
• Series: STB75NF20
• Transistor Type: 1 N-Channel
• Width: 9.35 mm
• Brand: STMicroelectronics
• Forward Transconductance - Min: 40 S
• Fall Time: 29 ns
• Product Type: MOSFET
• Rise Time: 33 ns
• Factory Pack Quantity: 1000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 75 ns
• Typical Turn-On Delay Time: 53 ns
• Unit Weight: 0.139332 oz
