STD9HN65M2

STD9HN65M2 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. TO-252-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 600 V 5.5 A continuous drain current Rds On value of 820 mOhms Gate-Source Threshold Voltage Range: 4 V Gate-Source Voltage: 25 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 60 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's MDmesh is Blue Gecko. Reel packaging for easy dispensing The height of the product is 2.4 mm. 10.1 mm long Power MOSFET The Transistor Type is 1 N-Channel. This device belongs to the MDmesh M2 type. STMicroelectronics is a trusted brand for quality electronics 14.5 ns fall time MOSFET product type Rise Time is 4.6 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 24 ns. The typical turn-on delay time is 7.5 ns. 1. 0.139332 oz of Unit Weight

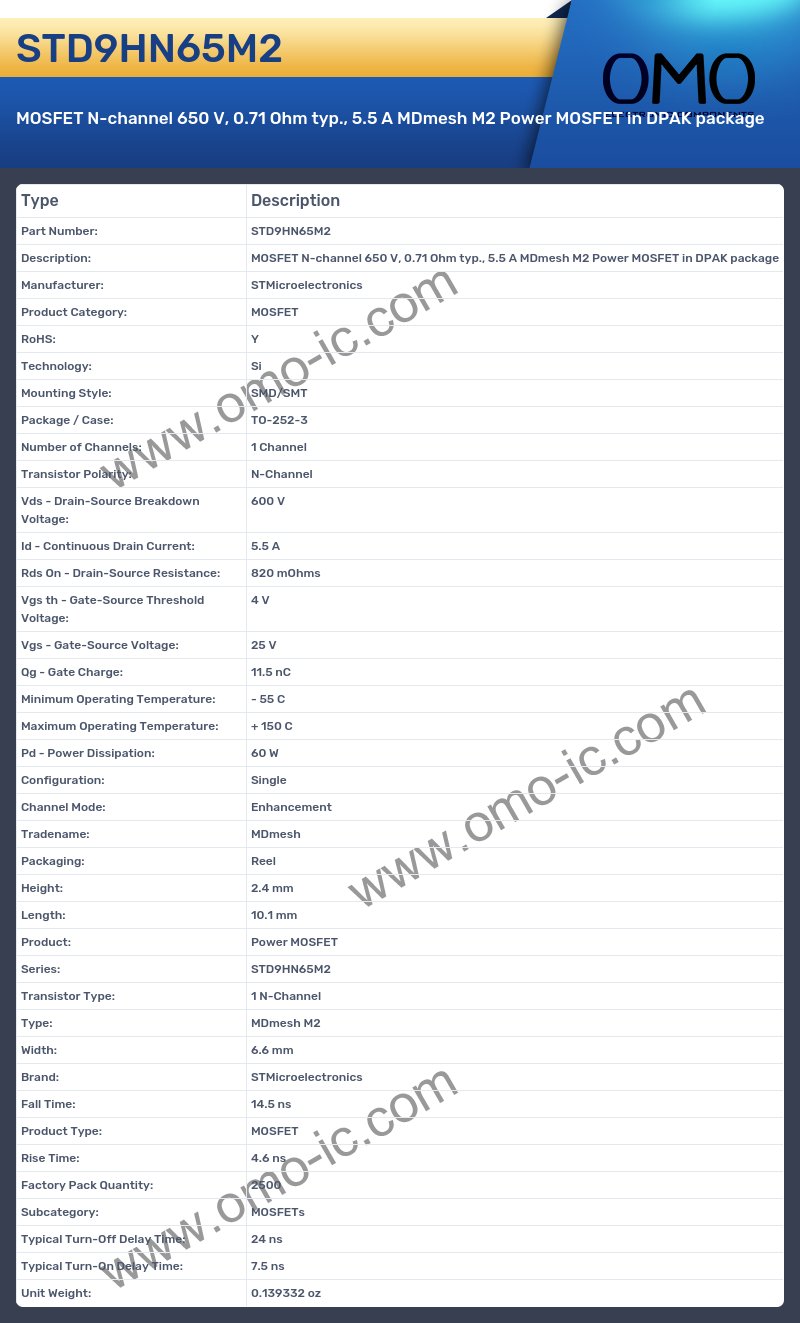

STD9HN65M2 Image

STD9HN65M2 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: TO-252-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 600 V
• Id - Continuous Drain Current: 5.5 A
• Rds On - Drain-Source Resistance: 820 mOhms
• Vgs th - Gate-Source Threshold Voltage: 4 V
• Vgs - Gate-Source Voltage: 25 V
• Qg - Gate Charge: 11.5 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 60 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: MDmesh
• Packaging: Reel
• Height: 2.4 mm
• Length: 10.1 mm
• Product: Power MOSFET
• Series: STD9HN65M2
• Transistor Type: 1 N-Channel
• Type: MDmesh M2
• Width: 6.6 mm
• Brand: STMicroelectronics
• Fall Time: 14.5 ns
• Product Type: MOSFET
• Rise Time: 4.6 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 24 ns
• Typical Turn-On Delay Time: 7.5 ns
• Unit Weight: 0.139332 oz
