STGF10NB60SD

STGF10NB60SD Overview

This product is manufactured by STMicroelectronics. TO-220-3 FP package/case type is utilized by this product. The product can operate at a maximum temperature of Through Hole. This product has a Single configuration. The maximum 600 V. The 1.8 V. Maximum gate emitter voltage is 20 V Continuous Collector Current at 25 C is 20 A 25 W The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. Tube packaging for easy dispensing Max continuous collector current of 20 A The height of the product is 9.3 mm. 10.4 mm long STMicroelectronics is a trusted brand for quality electronics Gate-Emitter Leakage Current: +/- 100 nA IGBT Transistors product type 1000 of 100 IGBTs as subcategory 1. 0.081130 oz of Unit Weight

STGF10NB60SD Image

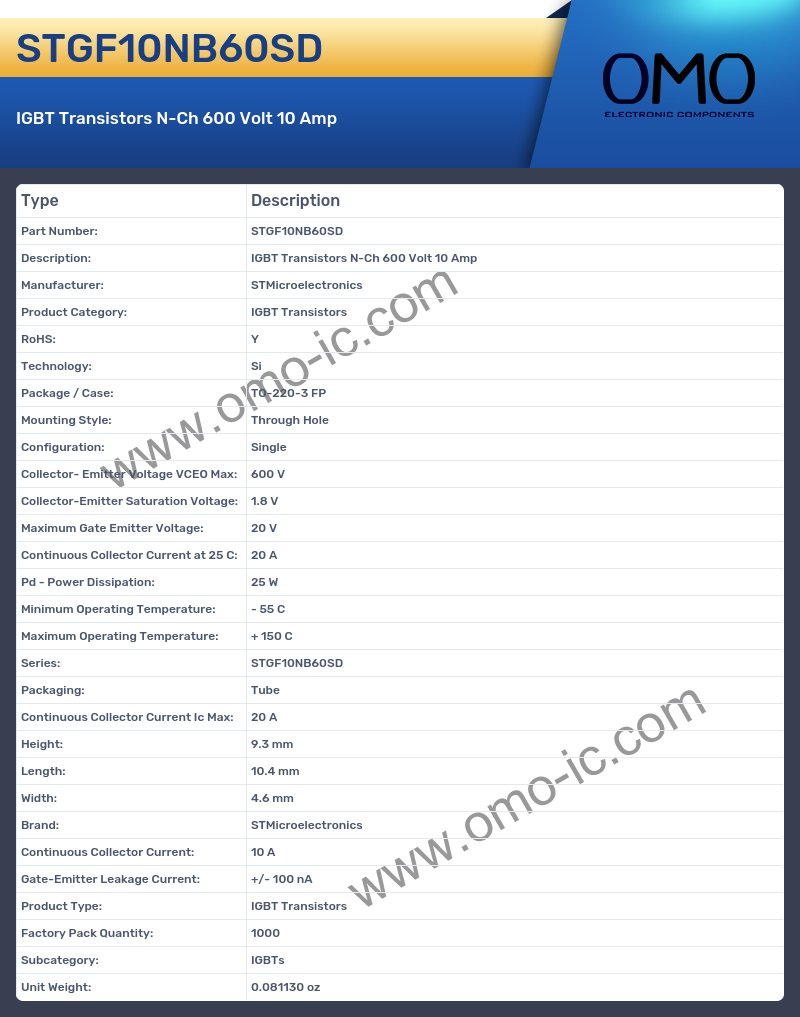

STGF10NB60SD Specifications

• Manufacturer: STMicroelectronics
• Product Category: IGBT Transistors
• RoHS: Y
• Technology: Si
• Package / Case: TO-220-3 FP
• Mounting Style: Through Hole
• Configuration: Single
• Collector- Emitter Voltage VCEO Max: 600 V
• Collector-Emitter Saturation Voltage: 1.8 V
• Maximum Gate Emitter Voltage: 20 V
• Continuous Collector Current at 25 C: 20 A
• Pd - Power Dissipation: 25 W
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Series: STGF10NB60SD
• Packaging: Tube
• Continuous Collector Current Ic Max: 20 A
• Height: 9.3 mm
• Length: 10.4 mm
• Width: 4.6 mm
• Brand: STMicroelectronics
• Continuous Collector Current: 10 A
• Gate-Emitter Leakage Current: +/- 100 nA
• Product Type: IGBT Transistors
• Factory Pack Quantity: 1000
• Subcategory: IGBTs
• Unit Weight: 0.081130 oz
