STIB1560DM2T-L

STIB1560DM2T-L Overview

This product is manufactured by STMicroelectronics. Power MOSFET Modules This device belongs to the 3-Phase Inverter type. The Vf - Forward Voltage of the product is 0.98 V. The product can operate at a maximum temperature of Through Hole. SDIP2B-26L package/case type is utilized by this product. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing This product has a High Side, Low Side configuration. STMicroelectronics is a trusted brand for quality electronics 17 A continuous drain current 450 V operating supply voltage range 113 W Discrete Semiconductor Modules product type Rds On value of 170 mOhms 156 of 100 Discrete Semiconductor Modules as subcategory The product's SLLIMM is Blue Gecko. Turn-off delay time is 1100 ns. The typical turn-on delay time is 690 ns. Vds rating of 600 V

STIB1560DM2T-L Image

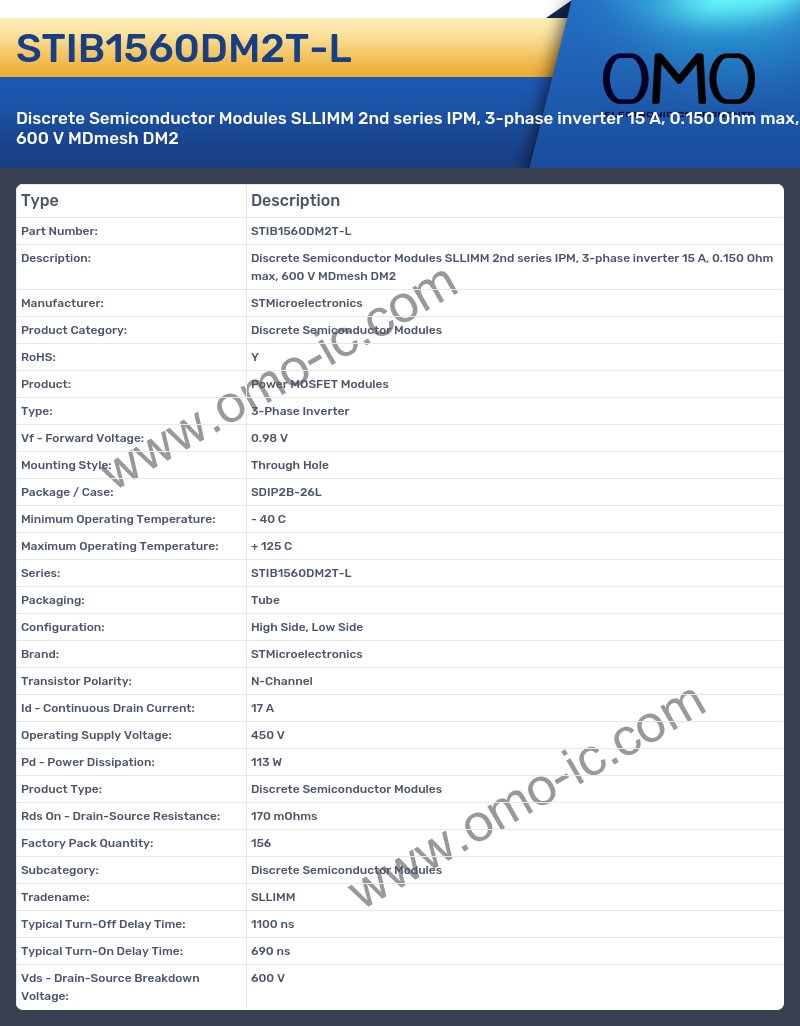

STIB1560DM2T-L Specifications

• Manufacturer: STMicroelectronics
• Product Category: Discrete Semiconductor Modules
• RoHS: Y
• Product: Power MOSFET Modules
• Type: 3-Phase Inverter
• Vf - Forward Voltage: 0.98 V
• Mounting Style: Through Hole
• Package / Case: SDIP2B-26L
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: STIB1560DM2T-L
• Packaging: Tube
• Configuration: High Side, Low Side
• Brand: STMicroelectronics
• Transistor Polarity: N-Channel
• Id - Continuous Drain Current: 17 A
• Operating Supply Voltage: 450 V
• Pd - Power Dissipation: 113 W
• Product Type: Discrete Semiconductor Modules
• Rds On - Drain-Source Resistance: 170 mOhms
• Factory Pack Quantity: 156
• Subcategory: Discrete Semiconductor Modules
• Tradename: SLLIMM
• Typical Turn-Off Delay Time: 1100 ns
• Typical Turn-On Delay Time: 690 ns
• Vds - Drain-Source Breakdown Voltage: 600 V
