STL105N4LF7AG

STL105N4LF7AG Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. PowerFLAT5x6-4 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 40 V 105 A continuous drain current Rds On value of 4.5 mOhms Gate-Source Threshold Voltage Range: 1.5 V Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 94 W This product has a Single configuration. The Channel Mode is set to Enhancement. The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 15 ns fall time MOSFET product type Rise Time is 6.5 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 43 ns. The typical turn-on delay time is 10 ns.

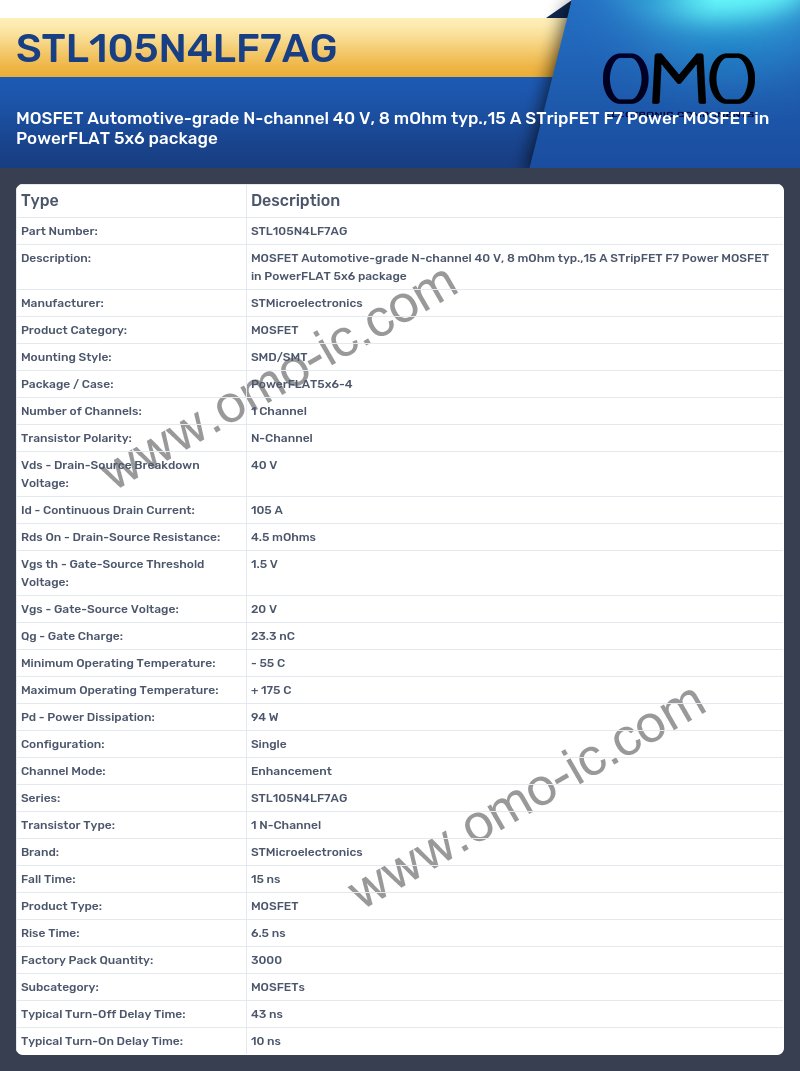

STL105N4LF7AG Image

STL105N4LF7AG Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• Mounting Style: SMD/SMT
• Package / Case: PowerFLAT5x6-4
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 40 V
• Id - Continuous Drain Current: 105 A
• Rds On - Drain-Source Resistance: 4.5 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1.5 V
• Vgs - Gate-Source Voltage: 20 V
• Qg - Gate Charge: 23.3 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 94 W
• Configuration: Single
• Channel Mode: Enhancement
• Series: STL105N4LF7AG
• Transistor Type: 1 N-Channel
• Brand: STMicroelectronics
• Fall Time: 15 ns
• Product Type: MOSFET
• Rise Time: 6.5 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 43 ns
• Typical Turn-On Delay Time: 10 ns
