STL86N3LLH6AG

STL86N3LLH6AG Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. PowerFLAT-5x6-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 30 V 80 A continuous drain current Rds On value of 5.2 mOhms Gate-Source Threshold Voltage Range: 2.5 V Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 60 W This product has a Single configuration. The Channel Mode is set to Enhancement. The AEC-Q101 Qualification Reel packaging for easy dispensing The height of the product is 1 mm. 6.6 mm long Power MOSFET The Transistor Type is 1 N-Channel. This device belongs to the STripFET H6 type. STMicroelectronics is a trusted brand for quality electronics 12 ns fall time MOSFET product type Rise Time is 30 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 37 ns. The typical turn-on delay time is 9.5 ns.

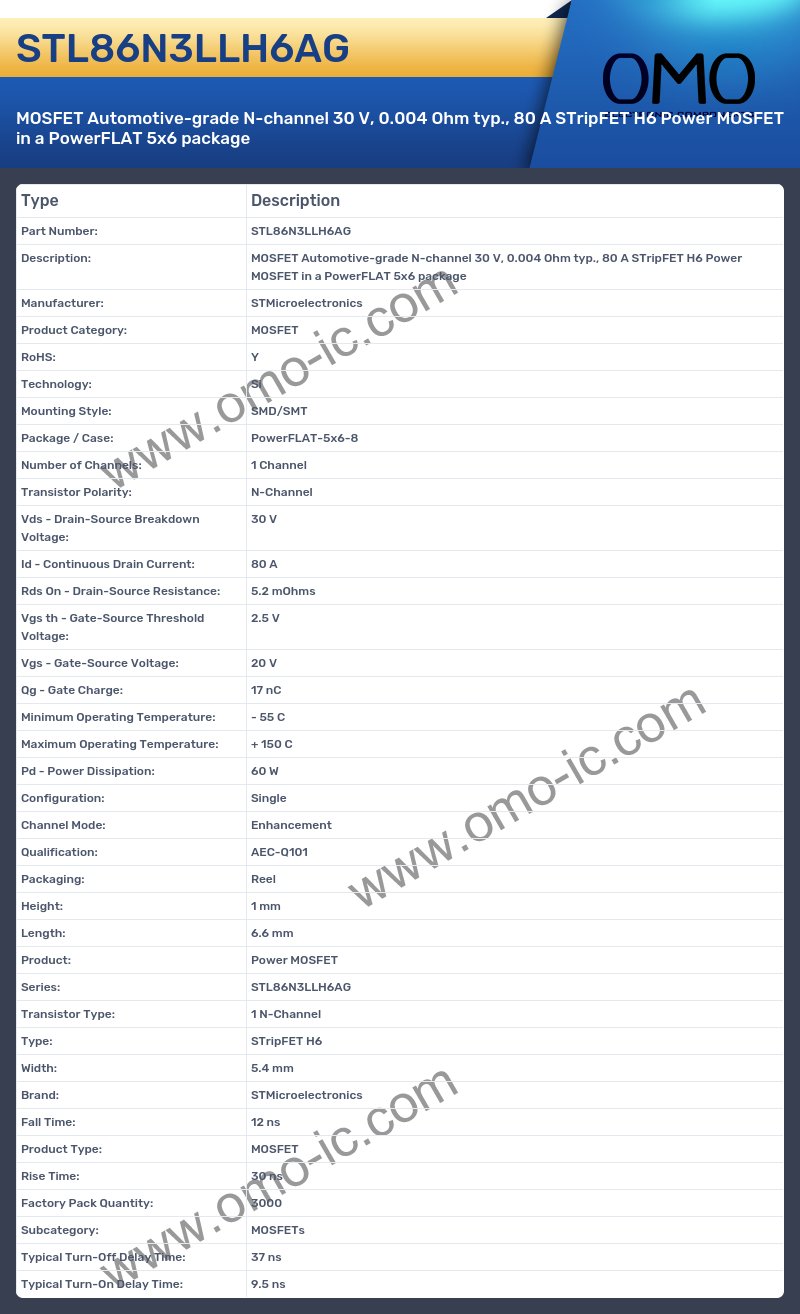

STL86N3LLH6AG Image

STL86N3LLH6AG Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: PowerFLAT-5x6-8
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 80 A
• Rds On - Drain-Source Resistance: 5.2 mOhms
• Vgs th - Gate-Source Threshold Voltage: 2.5 V
• Vgs - Gate-Source Voltage: 20 V
• Qg - Gate Charge: 17 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 60 W
• Configuration: Single
• Channel Mode: Enhancement
• Qualification: AEC-Q101
• Packaging: Reel
• Height: 1 mm
• Length: 6.6 mm
• Product: Power MOSFET
• Series: STL86N3LLH6AG
• Transistor Type: 1 N-Channel
• Type: STripFET H6
• Width: 5.4 mm
• Brand: STMicroelectronics
• Fall Time: 12 ns
• Product Type: MOSFET
• Rise Time: 30 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 37 ns
• Typical Turn-On Delay Time: 9.5 ns
