STN1NF20

STN1NF20 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. SOT-223-4 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 200 V 1 A continuous drain current Rds On value of 1.5 Ohms Gate-Source Threshold Voltage Range: 2 V Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 2 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's STripFET is Blue Gecko. Reel packaging for easy dispensing The Transistor Type is 1 N-Channel Power MOSFET. STMicroelectronics is a trusted brand for quality electronics 12.4 ns fall time MOSFET product type Rise Time is 5.6 ns. 4000 of 100 MOSFETs as subcategory 1. 0.008818 oz of Unit Weight

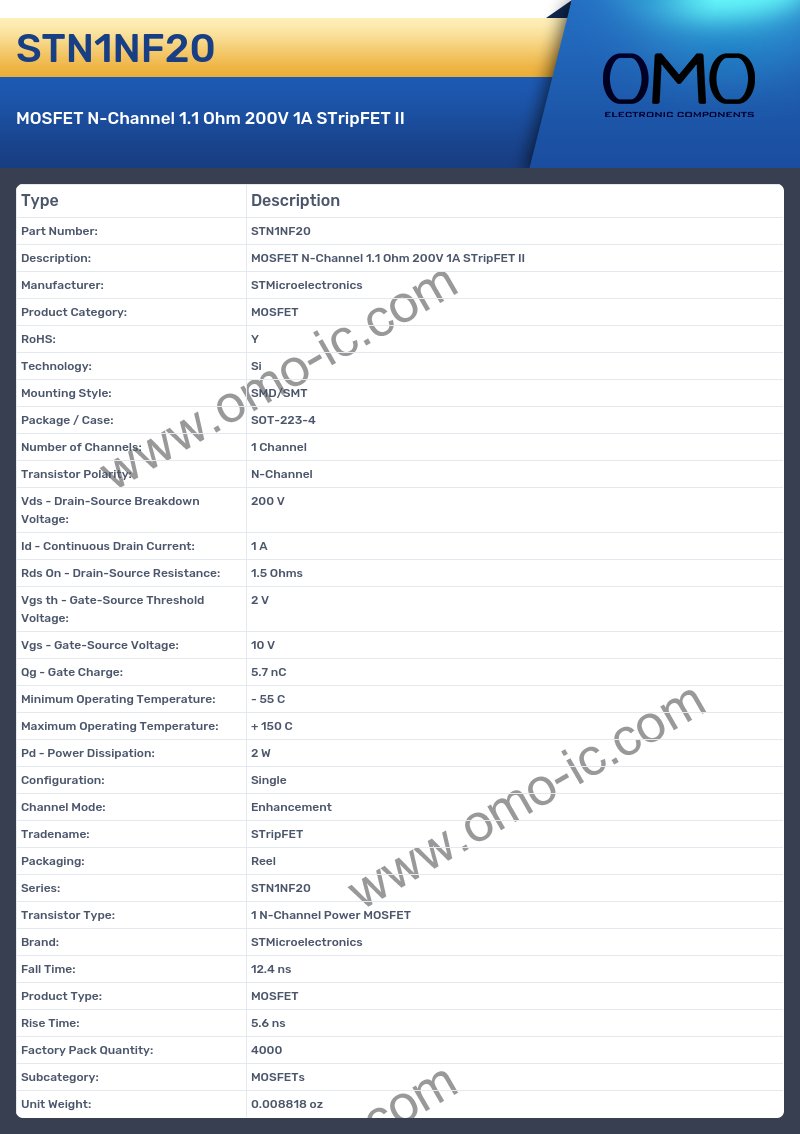

STN1NF20 Image

STN1NF20 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: SOT-223-4
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 200 V
• Id - Continuous Drain Current: 1 A
• Rds On - Drain-Source Resistance: 1.5 Ohms
• Vgs th - Gate-Source Threshold Voltage: 2 V
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 5.7 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 2 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: STripFET
• Packaging: Reel
• Series: STN1NF20
• Transistor Type: 1 N-Channel Power MOSFET
• Brand: STMicroelectronics
• Fall Time: 12.4 ns
• Product Type: MOSFET
• Rise Time: 5.6 ns
• Factory Pack Quantity: 4000
• Subcategory: MOSFETs
• Unit Weight: 0.008818 oz
