STP120N4F6

STP120N4F6 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. TO-220-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 40 V 80 A continuous drain current Rds On value of 4.3 mOhms Gate-Source Threshold Voltage Range: 4 V Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 110 W This product has a Single configuration. The Channel Mode is set to Enhancement. The AEC-Q101 Qualification The product's STripFET is Blue Gecko. Tube packaging for easy dispensing The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 20 ns fall time MOSFET product type Rise Time is 70 ns. 1000 of 100 MOSFETs as subcategory Turn-off delay time is 40 ns. The typical turn-on delay time is 20 ns. 1. 0.011640 oz of Unit Weight

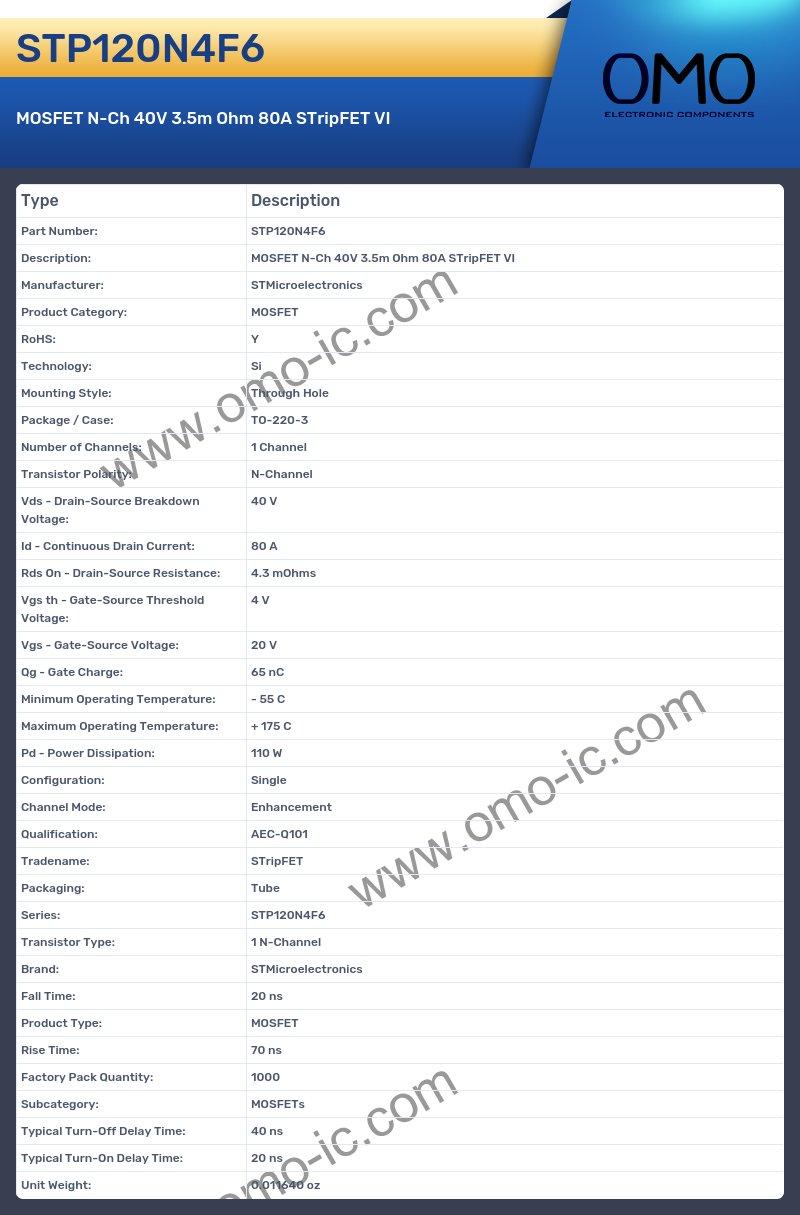

STP120N4F6 Image

STP120N4F6 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-220-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 40 V
• Id - Continuous Drain Current: 80 A
• Rds On - Drain-Source Resistance: 4.3 mOhms
• Vgs th - Gate-Source Threshold Voltage: 4 V
• Vgs - Gate-Source Voltage: 20 V
• Qg - Gate Charge: 65 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 110 W
• Configuration: Single
• Channel Mode: Enhancement
• Qualification: AEC-Q101
• Tradename: STripFET
• Packaging: Tube
• Series: STP120N4F6
• Transistor Type: 1 N-Channel
• Brand: STMicroelectronics
• Fall Time: 20 ns
• Product Type: MOSFET
• Rise Time: 70 ns
• Factory Pack Quantity: 1000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 40 ns
• Typical Turn-On Delay Time: 20 ns
• Unit Weight: 0.011640 oz
