STS15N4LLF5

STS15N4LLF5 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 40 V 15 A continuous drain current Rds On value of 6.25 mOhms Gate-Source Threshold Voltage Range: 1 V Gate-Source Voltage: 16 V, 18 V 3 W This product has a Single configuration. Reel packaging for easy dispensing The Transistor Type is 1 N-Channel. This device belongs to the Power MOSFET type. STMicroelectronics is a trusted brand for quality electronics 5.2 ns fall time MOSFET product type Rise Time is 42 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 37 ns. The typical turn-on delay time is 14 ns. 1. 0.017870 oz of Unit Weight

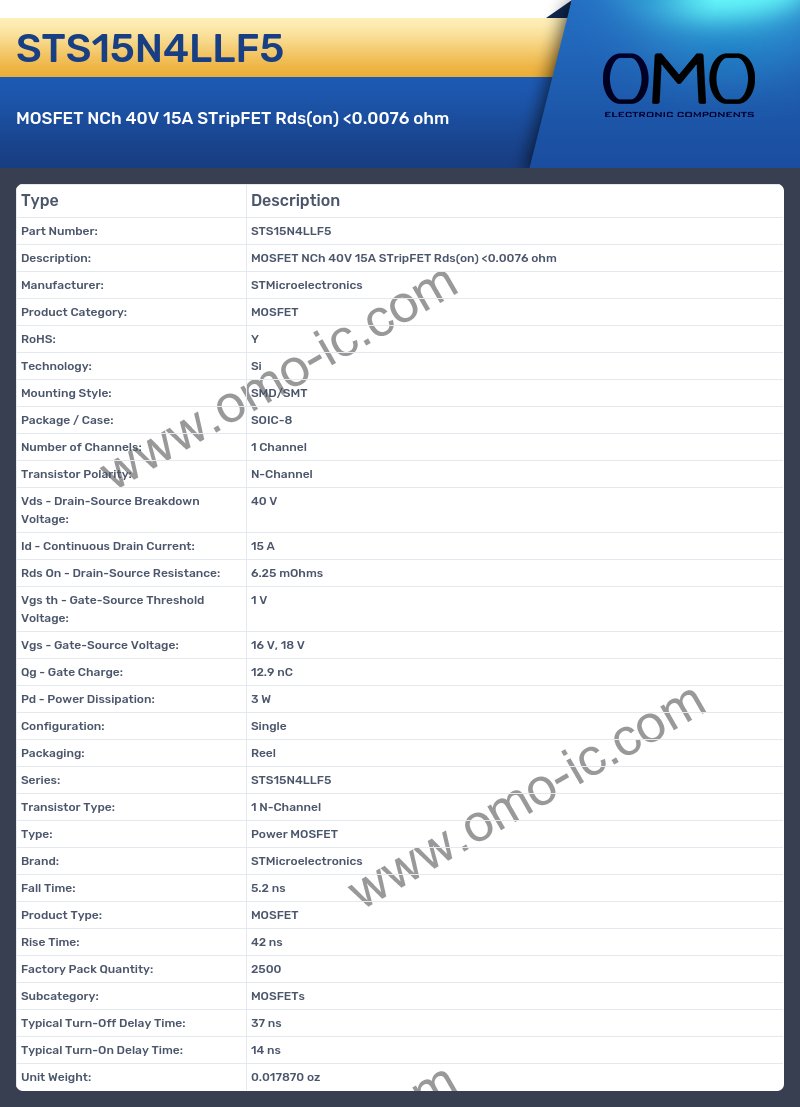

STS15N4LLF5 Image

STS15N4LLF5 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 40 V
• Id - Continuous Drain Current: 15 A
• Rds On - Drain-Source Resistance: 6.25 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1 V
• Vgs - Gate-Source Voltage: 16 V, 18 V
• Qg - Gate Charge: 12.9 nC
• Pd - Power Dissipation: 3 W
• Configuration: Single
• Packaging: Reel
• Series: STS15N4LLF5
• Transistor Type: 1 N-Channel
• Type: Power MOSFET
• Brand: STMicroelectronics
• Fall Time: 5.2 ns
• Product Type: MOSFET
• Rise Time: 42 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 37 ns
• Typical Turn-On Delay Time: 14 ns
• Unit Weight: 0.017870 oz
