STV300NH02L

STV300NH02L Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. PowerSO-10 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 24 V 280 A continuous drain current Rds On value of 1 mOhms Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 300 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's STripFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 3.65 mm. 7.6 mm long The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 94.4 ns fall time MOSFET product type Rise Time is 275 ns. 600 of 100 MOSFETs as subcategory Turn-off delay time is 138 ns. The typical turn-on delay time is 18 ns. 1. 0.067021 oz of Unit Weight

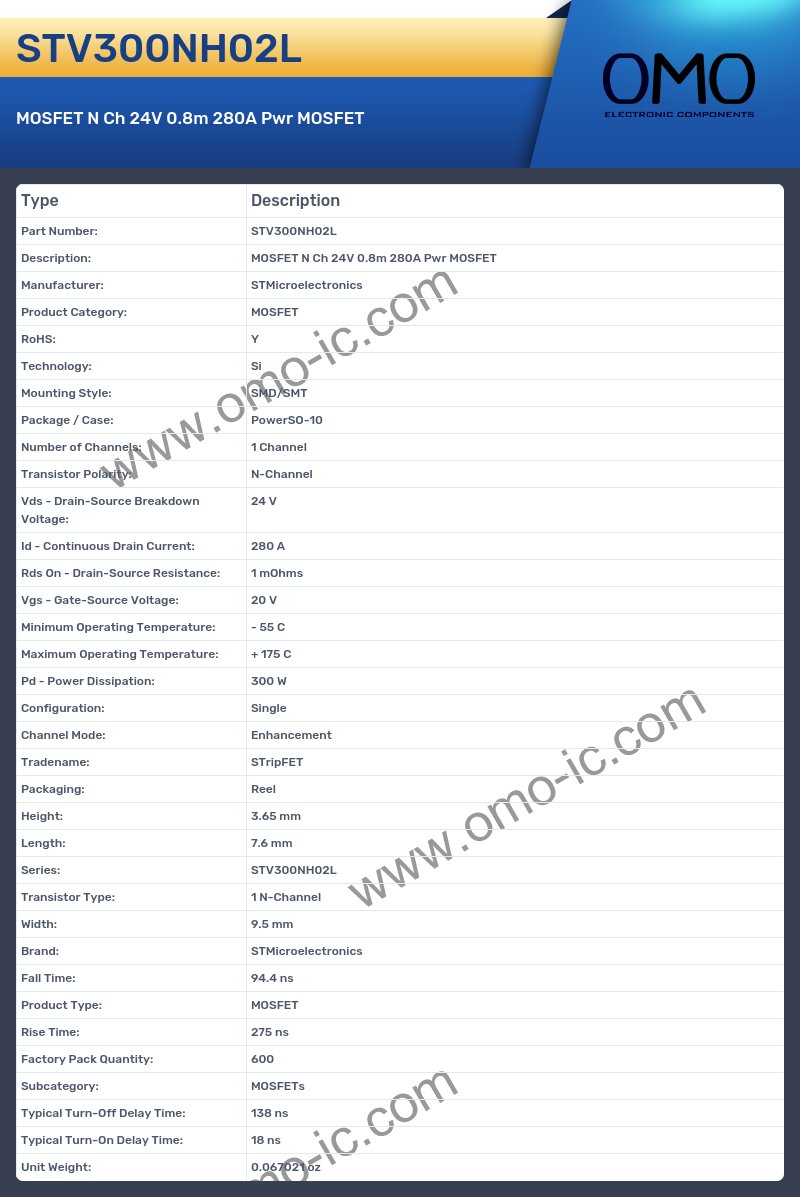

STV300NH02L Image

STV300NH02L Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: PowerSO-10
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 24 V
• Id - Continuous Drain Current: 280 A
• Rds On - Drain-Source Resistance: 1 mOhms
• Vgs - Gate-Source Voltage: 20 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 300 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: STripFET
• Packaging: Reel
• Height: 3.65 mm
• Length: 7.6 mm
• Series: STV300NH02L
• Transistor Type: 1 N-Channel
• Width: 9.5 mm
• Brand: STMicroelectronics
• Fall Time: 94.4 ns
• Product Type: MOSFET
• Rise Time: 275 ns
• Factory Pack Quantity: 600
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 138 ns
• Typical Turn-On Delay Time: 18 ns
• Unit Weight: 0.067021 oz
