STW36NM60ND

STW36NM60ND Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. TO-247-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 650 V 29 A continuous drain current Rds On value of 110 mOhms Gate-Source Threshold Voltage Range: 4 V Gate-Source Voltage: 25 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 190 W This product has a Single configuration. The AEC-Q101 Qualification Tube packaging for easy dispensing The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 61.8 ns fall time MOSFET product type Rise Time is 53.4 ns. 600 of 100 MOSFETs as subcategory Turn-off delay time is 111 ns. The typical turn-on delay time is 30 ns. 1. 1.340411 oz of Unit Weight

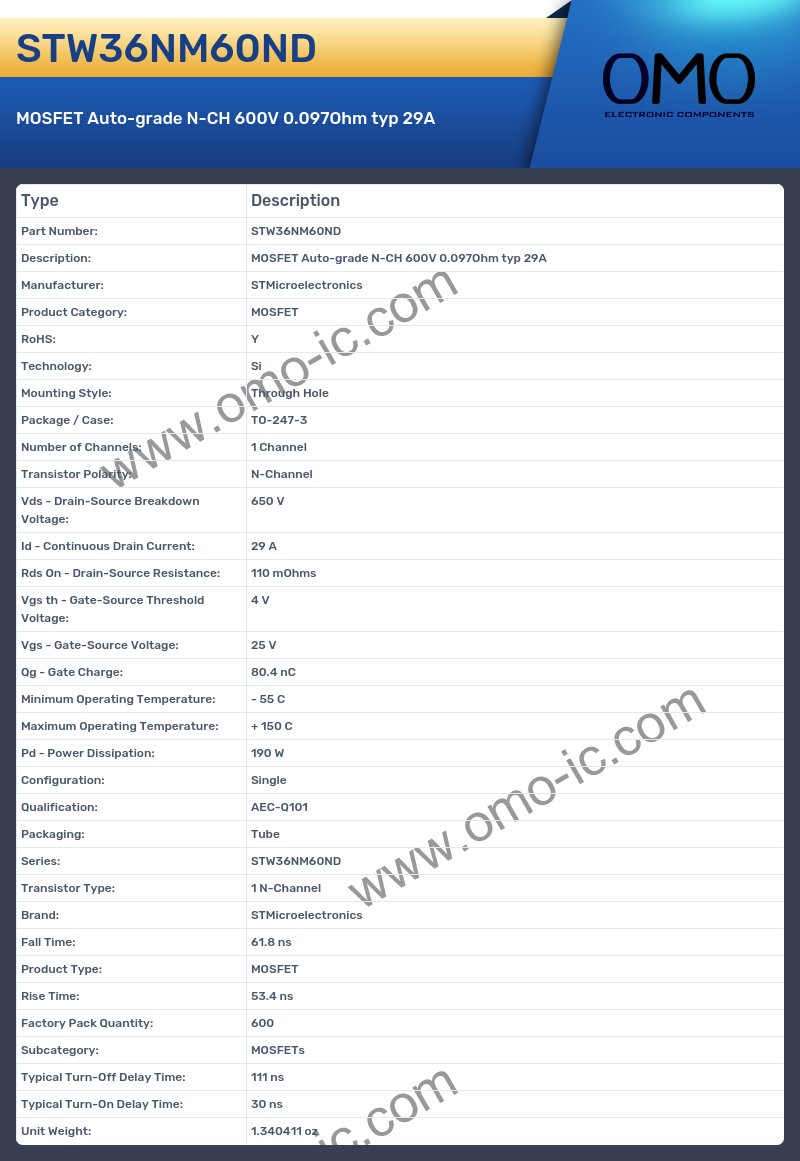

STW36NM60ND Image

STW36NM60ND Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-247-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 650 V
• Id - Continuous Drain Current: 29 A
• Rds On - Drain-Source Resistance: 110 mOhms
• Vgs th - Gate-Source Threshold Voltage: 4 V
• Vgs - Gate-Source Voltage: 25 V
• Qg - Gate Charge: 80.4 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 190 W
• Configuration: Single
• Qualification: AEC-Q101
• Packaging: Tube
• Series: STW36NM60ND
• Transistor Type: 1 N-Channel
• Brand: STMicroelectronics
• Fall Time: 61.8 ns
• Product Type: MOSFET
• Rise Time: 53.4 ns
• Factory Pack Quantity: 600
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 111 ns
• Typical Turn-On Delay Time: 30 ns
• Unit Weight: 1.340411 oz
