TC4420MJA

TC4420MJA Overview

This product is manufactured by Microchip. MOSFET Gate Drivers This device belongs to the Non-Inverting type. The product can operate at a maximum temperature of Through Hole. CDIP-8 package/case type is utilized by this product. 1 Output is the number of outputs provided by this product. Output current: 6 A Rise Time is 25 ns. 25 ns fall time Supply Voltage - Min: 4.5 V Supply Voltage - Max: 18 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing Microchip Technology is a trusted brand for quality electronics CMOS, TTL. 4.5 V to 18 V operating supply voltage range Gate Drivers product type 56 of 100 PMIC - Power Management ICs as subcategory 1. 0.036064 oz of Unit Weight

TC4420MJA Image

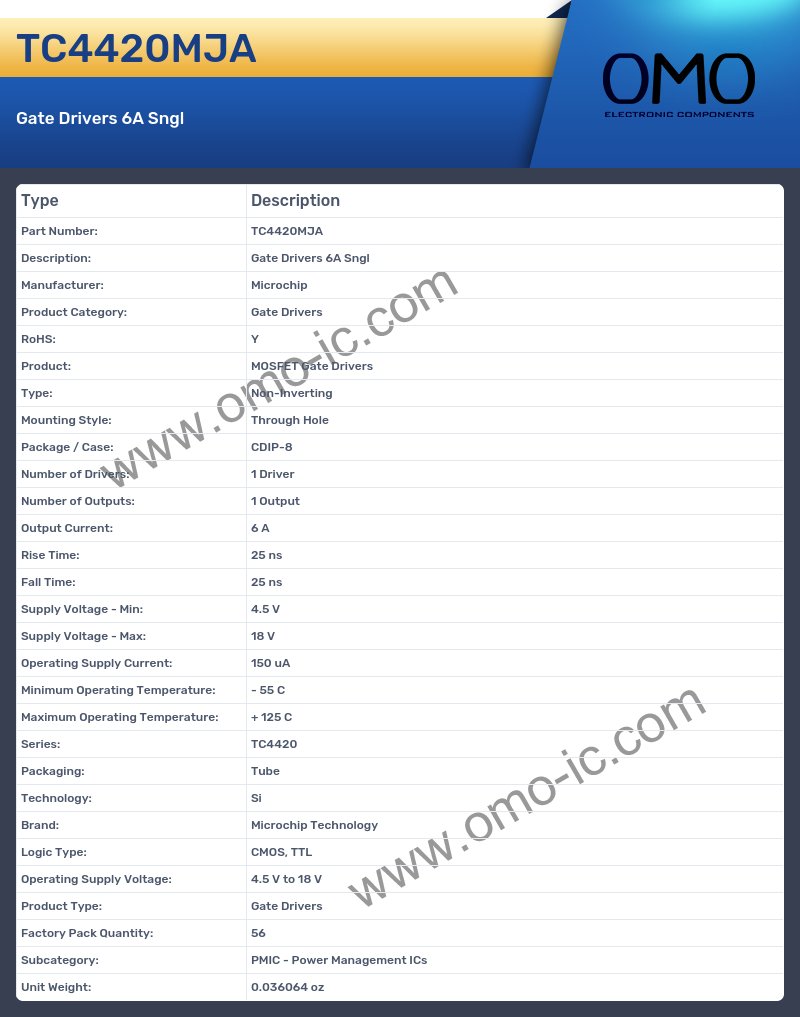

TC4420MJA Specifications

• Manufacturer: Microchip
• Product Category: Gate Drivers
• RoHS: Y
• Product: MOSFET Gate Drivers
• Type: Non-Inverting
• Mounting Style: Through Hole
• Package / Case: CDIP-8
• Number of Drivers: 1 Driver
• Number of Outputs: 1 Output
• Output Current: 6 A
• Rise Time: 25 ns
• Fall Time: 25 ns
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 18 V
• Operating Supply Current: 150 uA
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Series: TC4420
• Packaging: Tube
• Technology: Si
• Brand: Microchip Technology
• Logic Type: CMOS, TTL
• Operating Supply Voltage: 4.5 V to 18 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 56
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.036064 oz
