TL7770-5IDW Overview

This product is manufactured by Texas Instruments. This device belongs to the Voltage Supervisory type. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. 4.55 V, 1.5 V threshold voltage range The output type is Active-high,Active-low,Open-drain. Adjustable. Supply Voltage - Max: 18 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 2.35 mm. 10.28 mm long Output current: 50 mA Texas Instruments is a trusted brand for quality electronics Adjustable is specified as a product attribute. The Adjustable, 4.46 V is a critical parameter in this product. Supervisory Circuits product type 40 of 100 PMIC - Power Management ICs as subcategory Supply Voltage - Min: 3.5 V 1. 0.014829 oz of Unit Weight

TL7770-5IDW Image

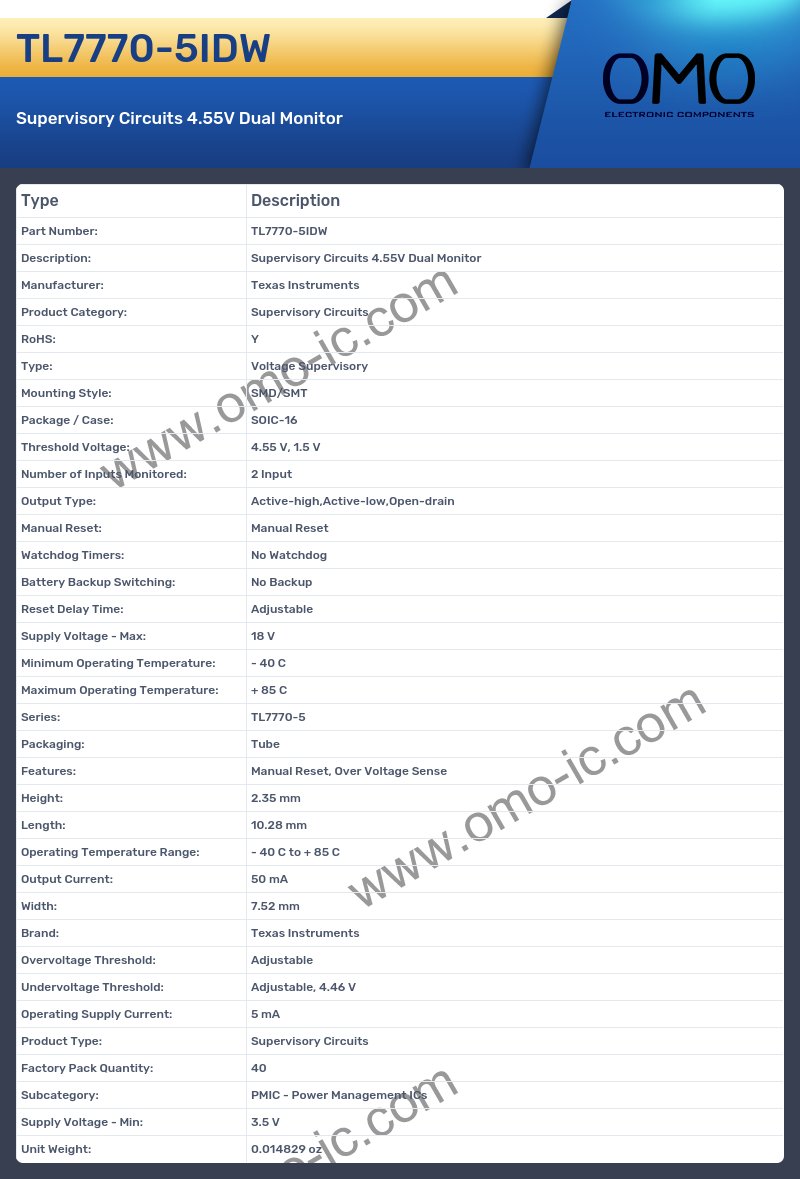

TL7770-5IDW Specifications

• Manufacturer: Texas Instruments
• Product Category: Supervisory Circuits
• RoHS: Y
• Type: Voltage Supervisory
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Threshold Voltage: 4.55 V, 1.5 V
• Number of Inputs Monitored: 2 Input
• Output Type: Active-high,Active-low,Open-drain
• Manual Reset: Manual Reset
• Watchdog Timers: No Watchdog
• Battery Backup Switching: No Backup
• Reset Delay Time: Adjustable
• Supply Voltage - Max: 18 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Series: TL7770-5
• Packaging: Tube
• Features: Manual Reset, Over Voltage Sense
• Height: 2.35 mm
• Length: 10.28 mm
• Operating Temperature Range: - 40 C to + 85 C
• Output Current: 50 mA
• Width: 7.52 mm
• Brand: Texas Instruments
• Overvoltage Threshold: Adjustable
• Undervoltage Threshold: Adjustable, 4.46 V
• Operating Supply Current: 5 mA
• Product Type: Supervisory Circuits
• Factory Pack Quantity: 40
• Subcategory: PMIC - Power Management ICs
• Supply Voltage - Min: 3.5 V
• Unit Weight: 0.014829 oz
