TLC2554ID

TLC2554ID Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOP-16 package/case type is utilized by this product. This product is equipped with 4 Channel for efficient performance. The sampling rate of this product is 400 kS/s. Pseudo-Differential/Single-Ended input type Interface Type: SPI SAR architecture External, Internal is the reference type. This product requires an 4.5 V to 5.5 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.58 mm. 9.9 mm long This device belongs to the Precision ADC type. Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. The 1 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within 1 LSB 4.5 V to 5.5 V operating supply voltage range ADCs - Analog to Digital Converters product type 40 of 100 Data Converter ICs as subcategory THD is as low as - 82 dB. 1. 0.005471 oz of Unit Weight

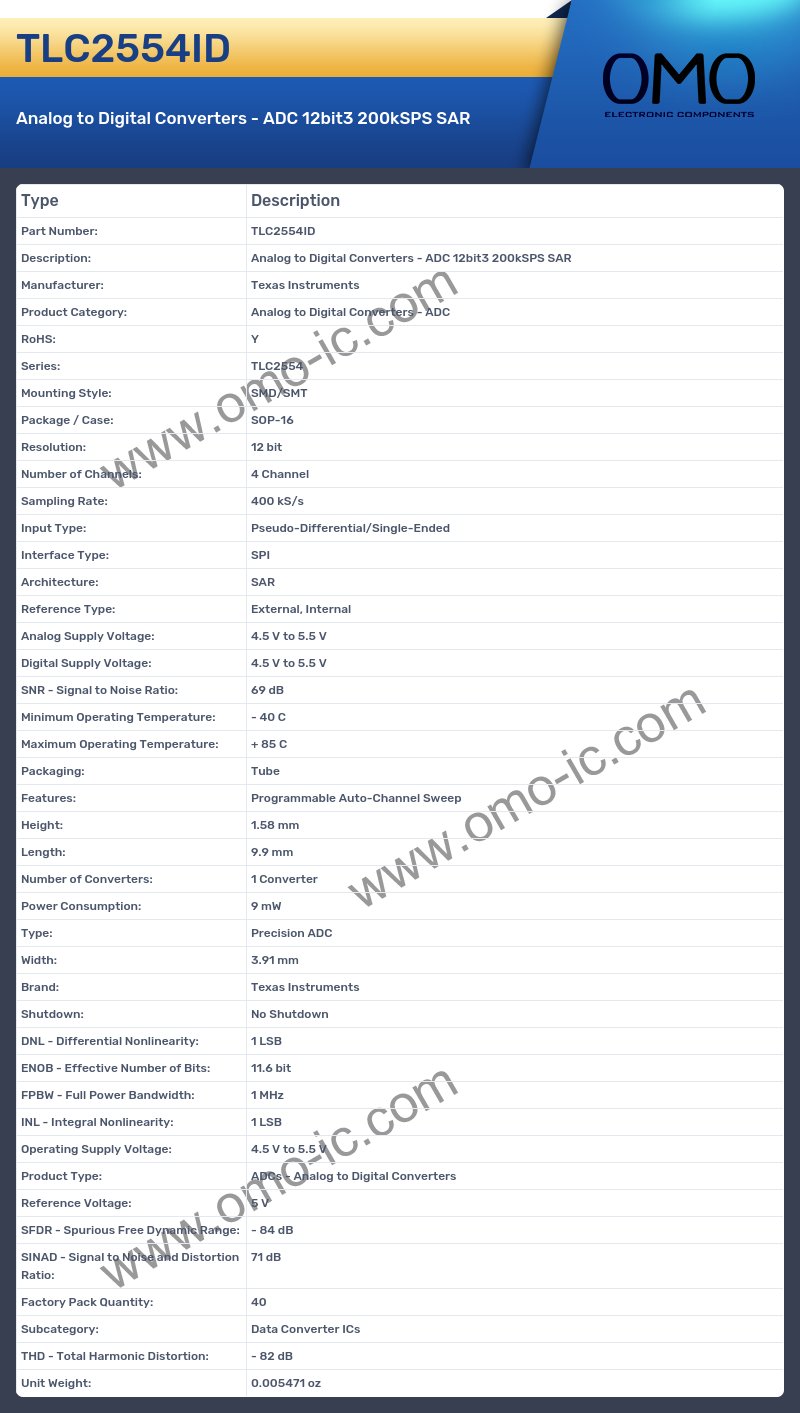

TLC2554ID Image

TLC2554ID Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: TLC2554
• Mounting Style: SMD/SMT
• Package / Case: SOP-16
• Resolution: 12 bit
• Number of Channels: 4 Channel
• Sampling Rate: 400 kS/s
• Input Type: Pseudo-Differential/Single-Ended
• Interface Type: SPI
• Architecture: SAR
• Reference Type: External, Internal
• Analog Supply Voltage: 4.5 V to 5.5 V
• Digital Supply Voltage: 4.5 V to 5.5 V
• SNR - Signal to Noise Ratio: 69 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Features: Programmable Auto-Channel Sweep
• Height: 1.58 mm
• Length: 9.9 mm
• Number of Converters: 1 Converter
• Power Consumption: 9 mW
• Type: Precision ADC
• Width: 3.91 mm
• Brand: Texas Instruments
• Shutdown: No Shutdown
• DNL - Differential Nonlinearity: 1 LSB
• ENOB - Effective Number of Bits: 11.6 bit
• FPBW - Full Power Bandwidth: 1 MHz
• INL - Integral Nonlinearity: 1 LSB
• Operating Supply Voltage: 4.5 V to 5.5 V
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 5 V
• SFDR - Spurious Free Dynamic Range: - 84 dB
• SINAD - Signal to Noise and Distortion Ratio: 71 dB
• Factory Pack Quantity: 40
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 82 dB
• Unit Weight: 0.005471 oz
