TLV1571IDW Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-24 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 1.25 MS/s. Single-Ended input type Interface Type: Parallel SAR architecture External is the reference type. This product requires an 2.7 V to 5.5 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 2.35 mm. 15.4 mm long This device belongs to the Precision ADC type. Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. The 1 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within 1 LSB 2.7 V to 5.5 V operating supply voltage range 43 mW ADCs - Analog to Digital Converters product type 25 of 100 Data Converter ICs as subcategory THD is as low as - 60 dB. 1. 0.022025 oz of Unit Weight

TLV1571IDW Image

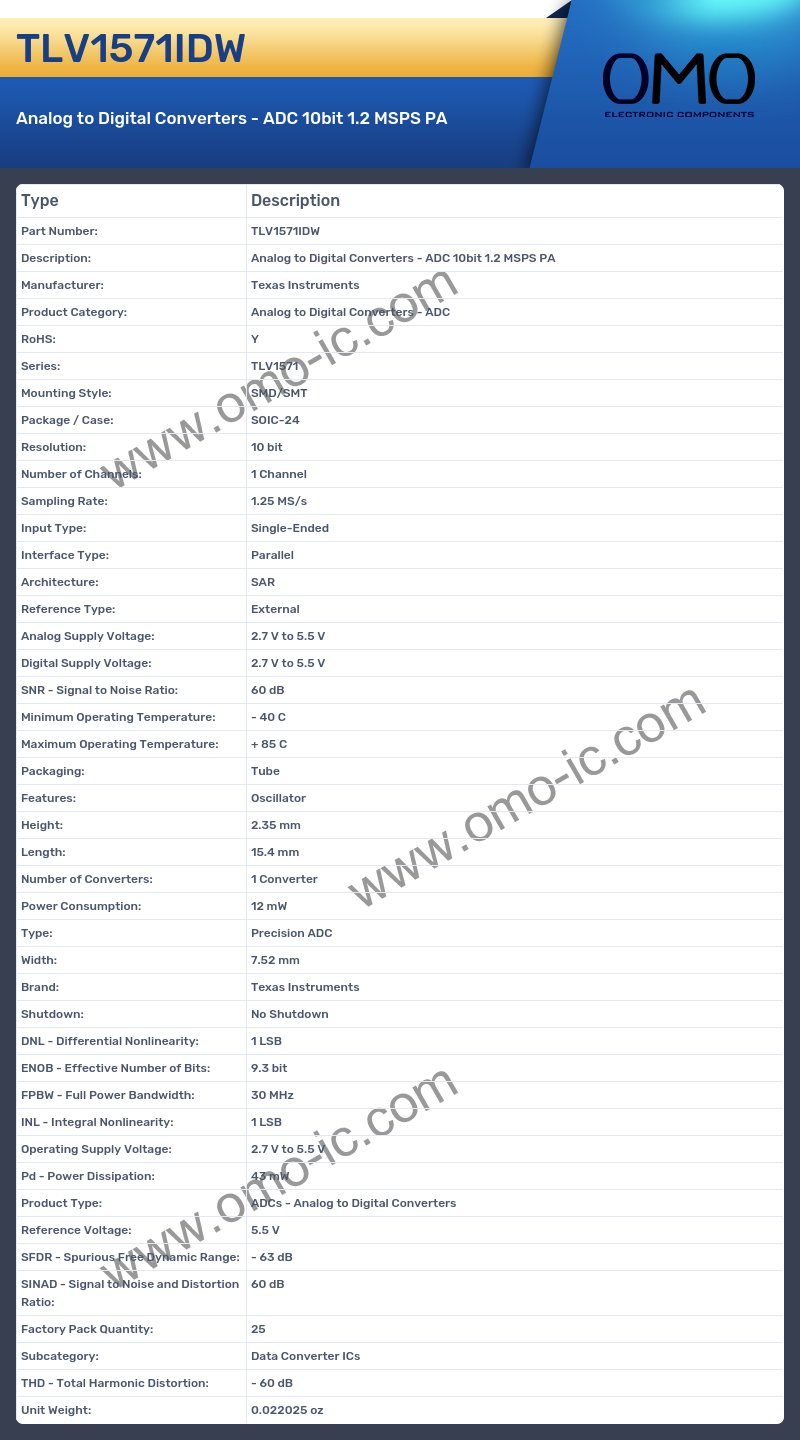

TLV1571IDW Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: TLV1571
• Mounting Style: SMD/SMT
• Package / Case: SOIC-24
• Resolution: 10 bit
• Number of Channels: 1 Channel
• Sampling Rate: 1.25 MS/s
• Input Type: Single-Ended
• Interface Type: Parallel
• Architecture: SAR
• Reference Type: External
• Analog Supply Voltage: 2.7 V to 5.5 V
• Digital Supply Voltage: 2.7 V to 5.5 V
• SNR - Signal to Noise Ratio: 60 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Features: Oscillator
• Height: 2.35 mm
• Length: 15.4 mm
• Number of Converters: 1 Converter
• Power Consumption: 12 mW
• Type: Precision ADC
• Width: 7.52 mm
• Brand: Texas Instruments
• Shutdown: No Shutdown
• DNL - Differential Nonlinearity: 1 LSB
• ENOB - Effective Number of Bits: 9.3 bit
• FPBW - Full Power Bandwidth: 30 MHz
• INL - Integral Nonlinearity: 1 LSB
• Operating Supply Voltage: 2.7 V to 5.5 V
• Pd - Power Dissipation: 43 mW
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 5.5 V
• SFDR - Spurious Free Dynamic Range: - 63 dB
• SINAD - Signal to Noise and Distortion Ratio: 60 dB
• Factory Pack Quantity: 25
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 60 dB
• Unit Weight: 0.022025 oz
