TLV2242IP

TLV2242IP Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. Supply Voltage - Max: 12 V This product is equipped with 2 Channel for efficient performance. This product has a 60 dB to 100 dB of 50 dB, ensuring reliable signal acquisition. This product has an 500 pA of 5 uA for precise signal processing. Supply Voltage - Min: 2.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. This product does not have a No Shutdown feature, ensuring continuous operation. Tube packaging for easy dispensing The amplifier type is Low Power Amplifier. The height of the product is 4.57 mm. Rail-to-Rail input type 9.81 mm long The output type is Rail-to-Rail. Operational Amplifiers Supply Type: Single, Dual Texas Instruments is a trusted brand for quality electronics The 0.008 pA/sqrt Hz is 0.7 pA/rtHz. 1. The maximum dual supply voltage is +/- 6 V. +/- 1.25 V minimum dual supply voltage 2.5 V to 12 V, +/- 1.25 V to +/- 6 V operating supply voltage range 1200 mW Op Amps - Operational Amplifiers product type This product has a 70 dB of 50 dB, providing reliable power supply noise rejection. 50 of 100 Amplifier ICs as subcategory 1. 0.015535 oz of Unit Weight

TLV2242IP Image

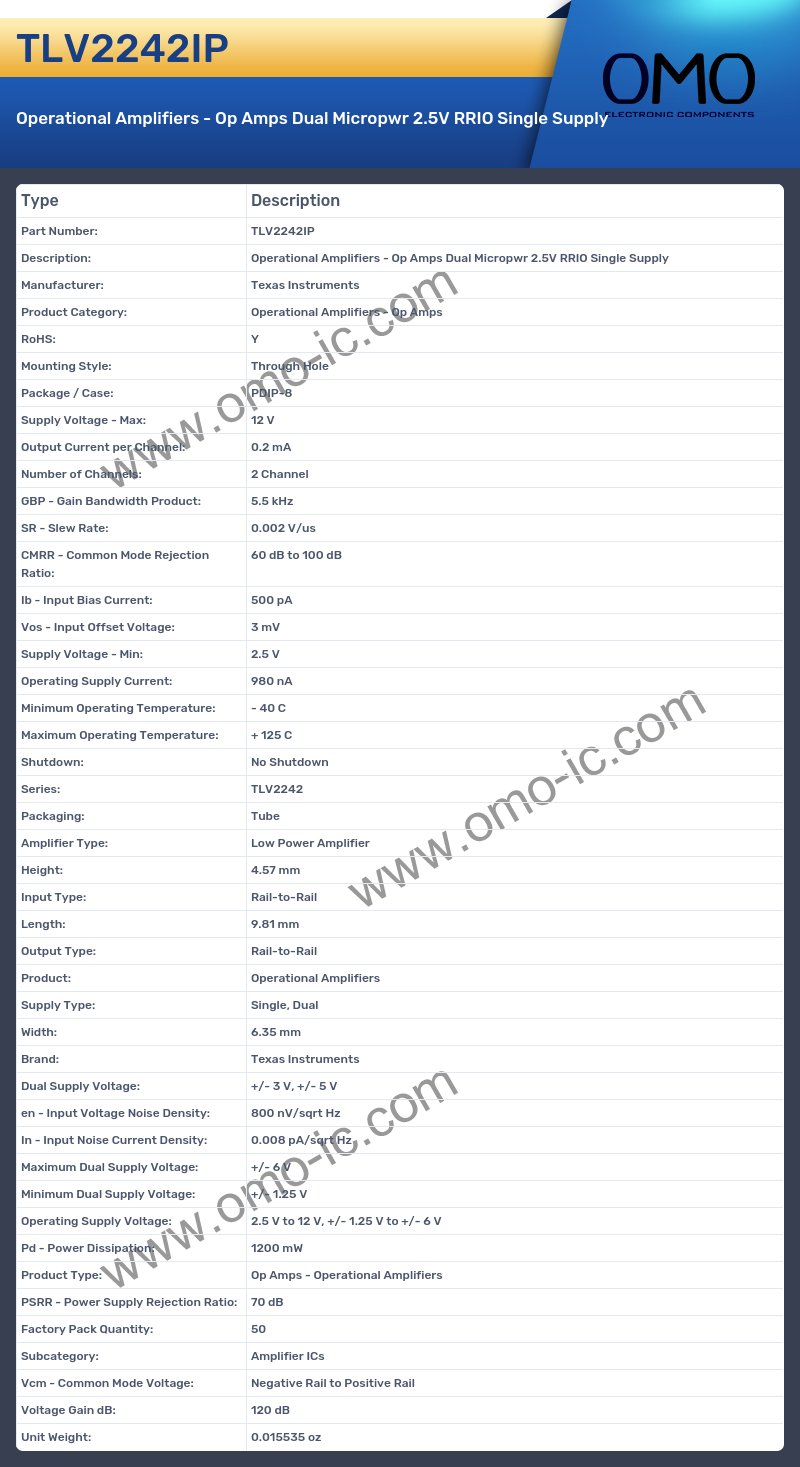

TLV2242IP Specifications

• Manufacturer: Texas Instruments
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Y
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Supply Voltage - Max: 12 V
• Output Current per Channel: 0.2 mA
• Number of Channels: 2 Channel
• GBP - Gain Bandwidth Product: 5.5 kHz
• SR - Slew Rate: 0.002 V/us
• CMRR - Common Mode Rejection Ratio: 60 dB to 100 dB
• Ib - Input Bias Current: 500 pA
• Vos - Input Offset Voltage: 3 mV
• Supply Voltage - Min: 2.5 V
• Operating Supply Current: 980 nA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Shutdown: No Shutdown
• Series: TLV2242
• Packaging: Tube
• Amplifier Type: Low Power Amplifier
• Height: 4.57 mm
• Input Type: Rail-to-Rail
• Length: 9.81 mm
• Output Type: Rail-to-Rail
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Width: 6.35 mm
• Brand: Texas Instruments
• Dual Supply Voltage: +/- 3 V, +/- 5 V
• en - Input Voltage Noise Density: 800 nV/sqrt Hz
• In - Input Noise Current Density: 0.008 pA/sqrt Hz
• Maximum Dual Supply Voltage: +/- 6 V
• Minimum Dual Supply Voltage: +/- 1.25 V
• Operating Supply Voltage: 2.5 V to 12 V, +/- 1.25 V to +/- 6 V
• Pd - Power Dissipation: 1200 mW
• Product Type: Op Amps - Operational Amplifiers
• PSRR - Power Supply Rejection Ratio: 70 dB
• Factory Pack Quantity: 50
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: Negative Rail to Positive Rail
• Voltage Gain dB: 120 dB
• Unit Weight: 0.015535 oz
