TLV2342ID Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Supply Voltage - Max: 8 V This product is equipped with 2 Channel for efficient performance. This product has a 65 dB to 80 dB of 50 dB, ensuring reliable signal acquisition. This product has an 200 pA of 5 uA for precise signal processing. Supply Voltage - Min: 2 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. This product does not have a No Shutdown feature, ensuring continuous operation. Tube packaging for easy dispensing The amplifier type is Low Power Amplifier. The height of the product is 1.58 mm. Rail-to-Rail input type 4.9 mm long The output type is Rail-to-Rail. Operational Amplifiers Supply Type: Single, Dual Texas Instruments is a trusted brand for quality electronics 1. The maximum dual supply voltage is +/- 4 V. +/- 1 V minimum dual supply voltage 2 V to 8 V, +/- 1 V to +/- 4 V operating supply voltage range 725 mW Op Amps - Operational Amplifiers product type 75 of 100 Amplifier ICs as subcategory The product's LinCMOS is Blue Gecko. 1. 0.002677 oz of Unit Weight

TLV2342ID Image

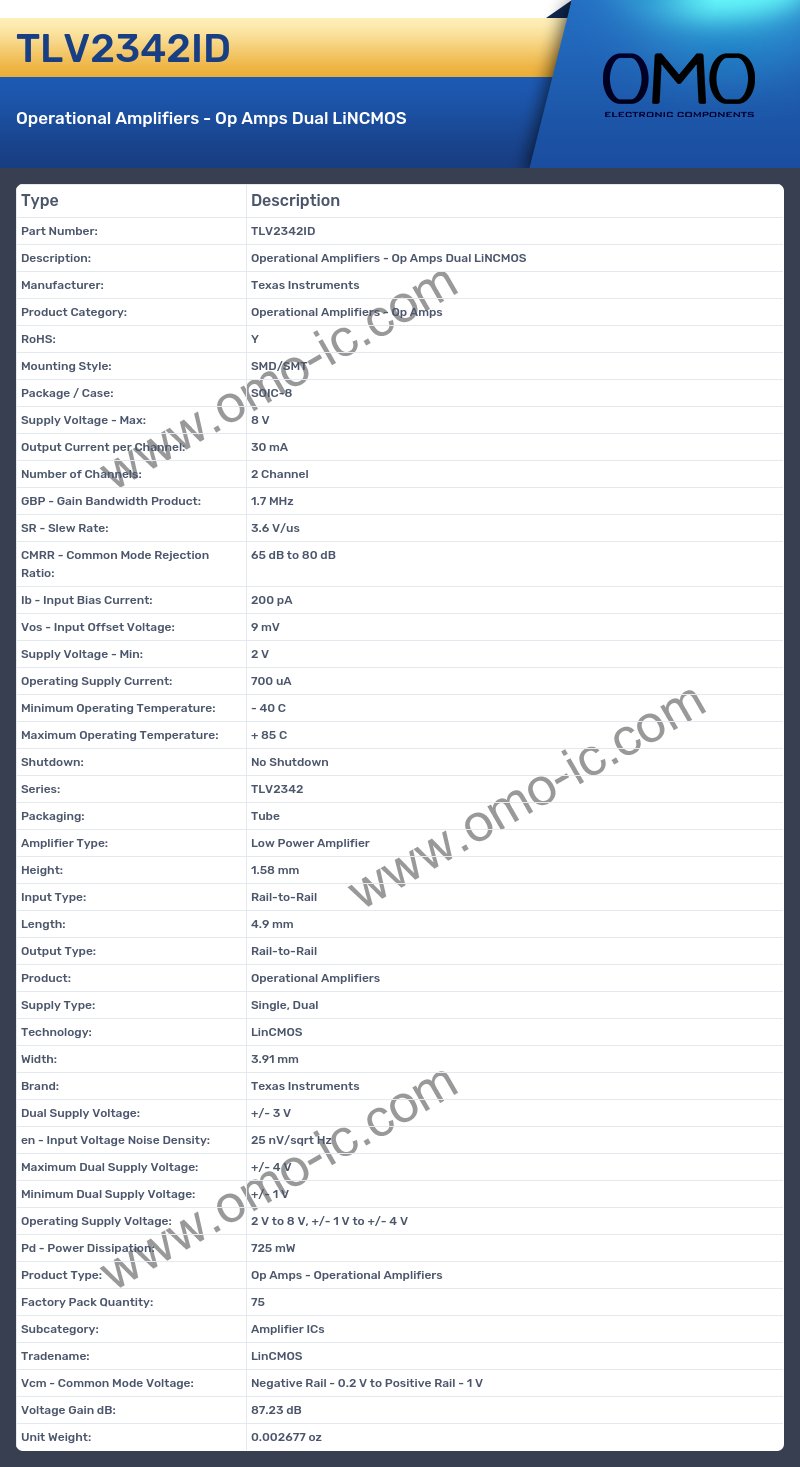

TLV2342ID Specifications

• Manufacturer: Texas Instruments
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Supply Voltage - Max: 8 V
• Output Current per Channel: 30 mA
• Number of Channels: 2 Channel
• GBP - Gain Bandwidth Product: 1.7 MHz
• SR - Slew Rate: 3.6 V/us
• CMRR - Common Mode Rejection Ratio: 65 dB to 80 dB
• Ib - Input Bias Current: 200 pA
• Vos - Input Offset Voltage: 9 mV
• Supply Voltage - Min: 2 V
• Operating Supply Current: 700 uA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Shutdown: No Shutdown
• Series: TLV2342
• Packaging: Tube
• Amplifier Type: Low Power Amplifier
• Height: 1.58 mm
• Input Type: Rail-to-Rail
• Length: 4.9 mm
• Output Type: Rail-to-Rail
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Technology: LinCMOS
• Width: 3.91 mm
• Brand: Texas Instruments
• Dual Supply Voltage: +/- 3 V
• en - Input Voltage Noise Density: 25 nV/sqrt Hz
• Maximum Dual Supply Voltage: +/- 4 V
• Minimum Dual Supply Voltage: +/- 1 V
• Operating Supply Voltage: 2 V to 8 V, +/- 1 V to +/- 4 V
• Pd - Power Dissipation: 725 mW
• Product Type: Op Amps - Operational Amplifiers
• Factory Pack Quantity: 75
• Subcategory: Amplifier ICs
• Tradename: LinCMOS
• Vcm - Common Mode Voltage: Negative Rail - 0.2 V to Positive Rail - 1 V
• Voltage Gain dB: 87.23 dB
• Unit Weight: 0.002677 oz
