TLV2422AQDG4

TLV2422AQDG4 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Supply Voltage - Max: 10 V This product is equipped with 2 Channel for efficient performance. This product has a 70 dB of 50 dB, ensuring reliable signal acquisition. This product has an 60 pA of 5 uA for precise signal processing. Supply Voltage - Min: 2.7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. This product does not have a No Shutdown feature, ensuring continuous operation. Tube packaging for easy dispensing The amplifier type is Micropower Amplifier. The height of the product is 1.58 mm. 4.9 mm long Operational Amplifiers Supply Type: Single, Dual Texas Instruments is a trusted brand for quality electronics The 0.0006 pA/sqrt Hz is 0.7 pA/rtHz. 1. The maximum dual supply voltage is +/- 5 V. +/- 1.35 V minimum dual supply voltage 2.7 V to 10 V, +/- 1.35 V to +/- 5 V operating supply voltage range 725 mW Op Amps - Operational Amplifiers product type 75 of 100 Amplifier ICs as subcategory 1. 0.002561 oz of Unit Weight

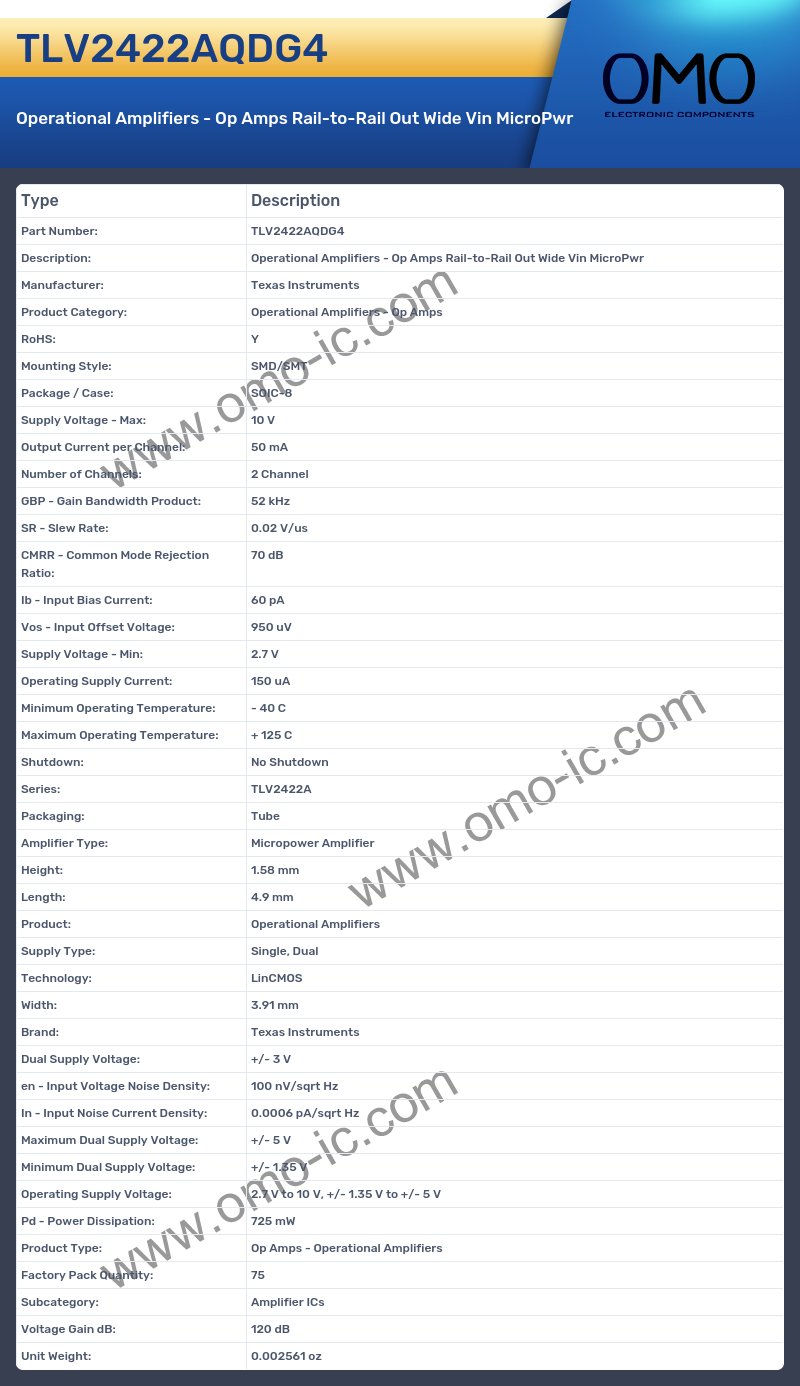

TLV2422AQDG4 Image

TLV2422AQDG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Supply Voltage - Max: 10 V
• Output Current per Channel: 50 mA
• Number of Channels: 2 Channel
• GBP - Gain Bandwidth Product: 52 kHz
• SR - Slew Rate: 0.02 V/us
• CMRR - Common Mode Rejection Ratio: 70 dB
• Ib - Input Bias Current: 60 pA
• Vos - Input Offset Voltage: 950 uV
• Supply Voltage - Min: 2.7 V
• Operating Supply Current: 150 uA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Shutdown: No Shutdown
• Series: TLV2422A
• Packaging: Tube
• Amplifier Type: Micropower Amplifier
• Height: 1.58 mm
• Length: 4.9 mm
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Technology: LinCMOS
• Width: 3.91 mm
• Brand: Texas Instruments
• Dual Supply Voltage: +/- 3 V
• en - Input Voltage Noise Density: 100 nV/sqrt Hz
• In - Input Noise Current Density: 0.0006 pA/sqrt Hz
• Maximum Dual Supply Voltage: +/- 5 V
• Minimum Dual Supply Voltage: +/- 1.35 V
• Operating Supply Voltage: 2.7 V to 10 V, +/- 1.35 V to +/- 5 V
• Pd - Power Dissipation: 725 mW
• Product Type: Op Amps - Operational Amplifiers
• Factory Pack Quantity: 75
• Subcategory: Amplifier ICs
• Voltage Gain dB: 120 dB
• Unit Weight: 0.002561 oz
