TLV5535IPW

TLV5535IPW Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. TSSOP-28 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 35 MS/s. Single-Ended input type Interface Type: Parallel Pipeline architecture External, Internal is the reference type. This product requires an 3.3 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1 mm. 9.7 mm long Texas Instruments is a trusted brand for quality electronics TLV5535EVM is a versatile development platform for hardware and software The +/- 1.3 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 2.4 LSB 3 V to 3.6 V operating supply voltage range 139 mW ADCs - Analog to Digital Converters product type 50 of 100 Data Converter ICs as subcategory 1. 0.004145 oz of Unit Weight

TLV5535IPW Image

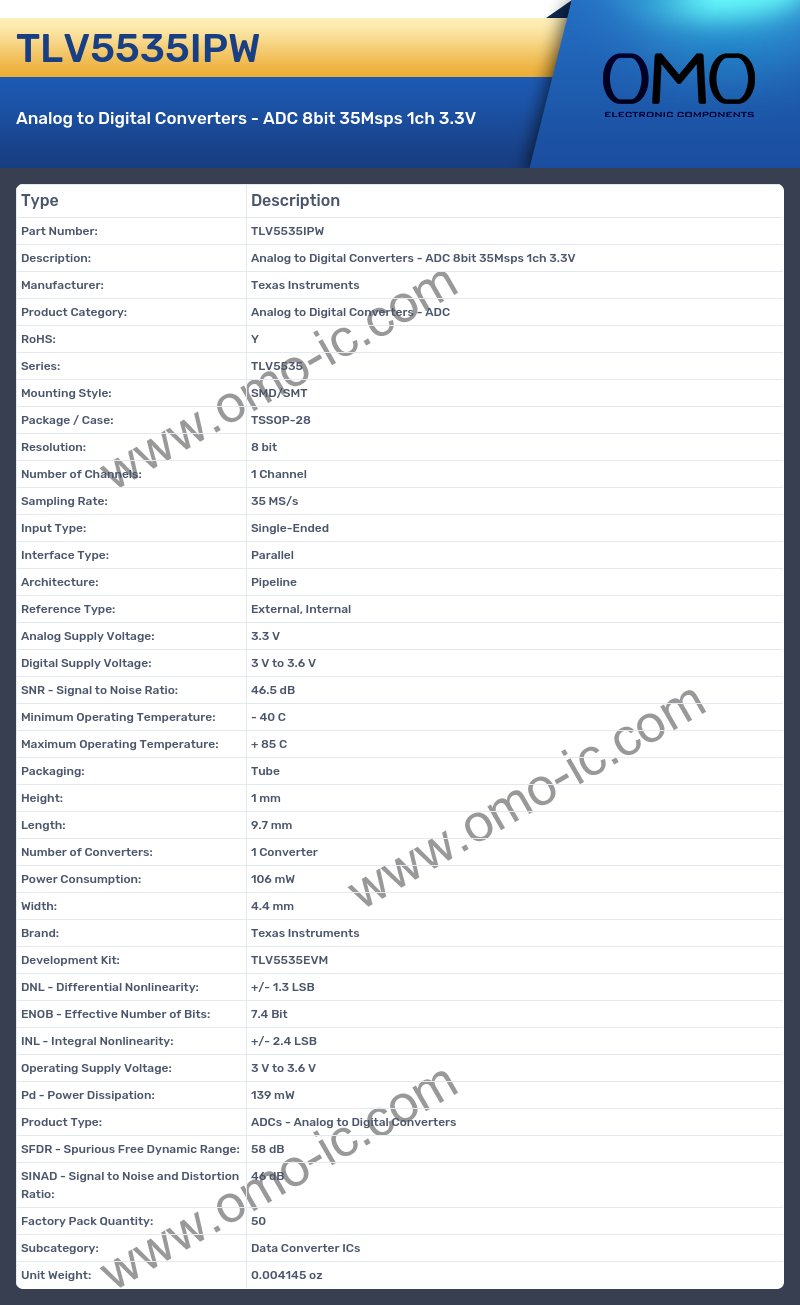

TLV5535IPW Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: TLV5535
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-28
• Resolution: 8 bit
• Number of Channels: 1 Channel
• Sampling Rate: 35 MS/s
• Input Type: Single-Ended
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: External, Internal
• Analog Supply Voltage: 3.3 V
• Digital Supply Voltage: 3 V to 3.6 V
• SNR - Signal to Noise Ratio: 46.5 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 1 mm
• Length: 9.7 mm
• Number of Converters: 1 Converter
• Power Consumption: 106 mW
• Width: 4.4 mm
• Brand: Texas Instruments
• Development Kit: TLV5535EVM
• DNL - Differential Nonlinearity: +/- 1.3 LSB
• ENOB - Effective Number of Bits: 7.4 Bit
• INL - Integral Nonlinearity: +/- 2.4 LSB
• Operating Supply Voltage: 3 V to 3.6 V
• Pd - Power Dissipation: 139 mW
• Product Type: ADCs - Analog to Digital Converters
• SFDR - Spurious Free Dynamic Range: 58 dB
• SINAD - Signal to Noise and Distortion Ratio: 46 dB
• Factory Pack Quantity: 50
• Subcategory: Data Converter ICs
• Unit Weight: 0.004145 oz
