TPA701D

TPA701D Overview

This product is manufactured by Texas Instruments. Audio Amplifiers Product Class is Class-AB Output power: 700 mW The product can operate at a maximum temperature of SMD/SMT. This device belongs to the 1-Channel Mono type. SOIC-8 package/case type is utilized by this product. Load impedance of 8 Ohms is supported. THD plus Noise value is 0.55 %. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.58 mm. Single input type 4.9 mm long The output type is 1-Channel Mono. Supply Type: Single Texas Instruments is a trusted brand for quality electronics This product is equipped with 1 Channel for efficient performance. Maximum supply current: 2.5 mA 2.5 V to 5.5 V operating supply voltage range Output signal type is Differential 725 mW Audio Amplifiers product type This product has a 85 dB of 50 dB, providing reliable power supply noise rejection. 75 of 100 Audio ICs as subcategory 1. 0.002677 oz of Unit Weight

TPA701D Image

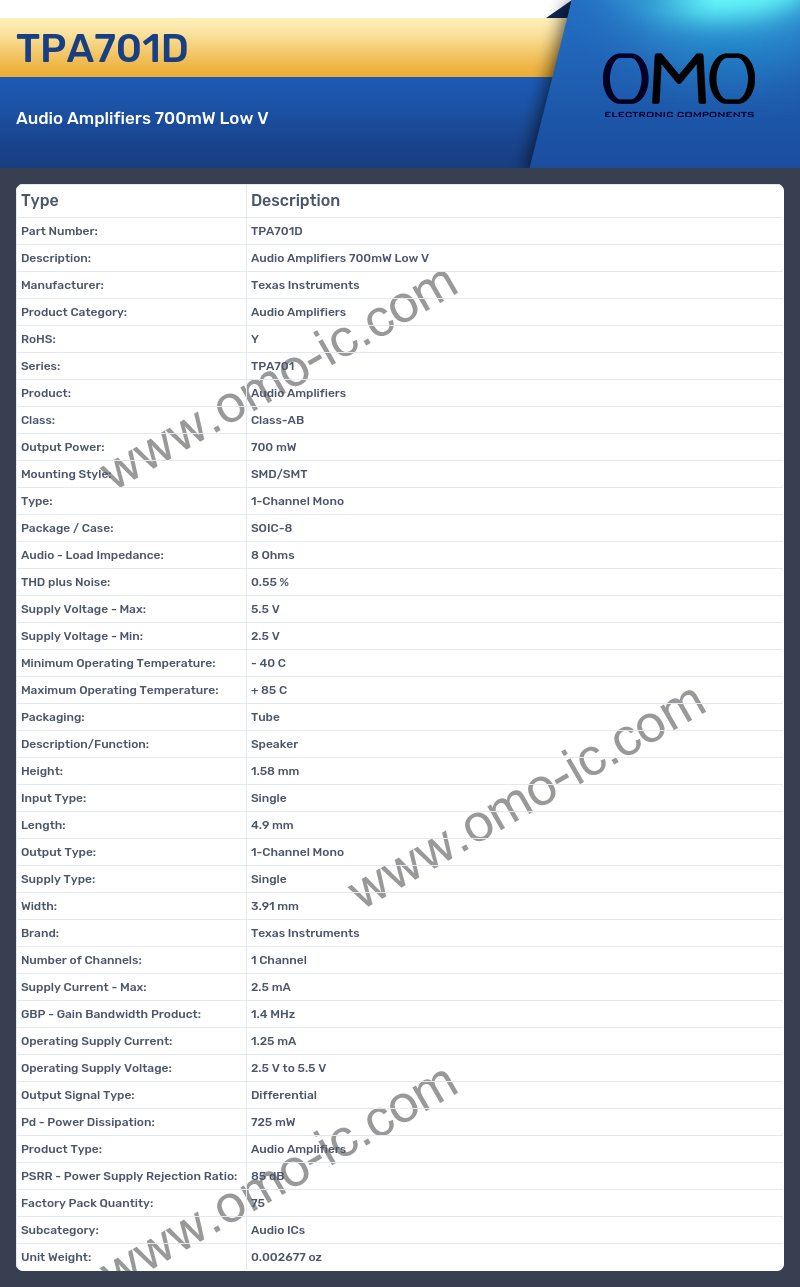

TPA701D Specifications

• Manufacturer: Texas Instruments
• Product Category: Audio Amplifiers
• RoHS: Y
• Series: TPA701
• Product: Audio Amplifiers
• Class: Class-AB
• Output Power: 700 mW
• Mounting Style: SMD/SMT
• Type: 1-Channel Mono
• Package / Case: SOIC-8
• Audio - Load Impedance: 8 Ohms
• THD plus Noise: 0.55 %
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Description/Function: Speaker
• Height: 1.58 mm
• Input Type: Single
• Length: 4.9 mm
• Output Type: 1-Channel Mono
• Supply Type: Single
• Width: 3.91 mm
• Brand: Texas Instruments
• Number of Channels: 1 Channel
• Supply Current - Max: 2.5 mA
• GBP - Gain Bandwidth Product: 1.4 MHz
• Operating Supply Current: 1.25 mA
• Operating Supply Voltage: 2.5 V to 5.5 V
• Output Signal Type: Differential
• Pd - Power Dissipation: 725 mW
• Product Type: Audio Amplifiers
• PSRR - Power Supply Rejection Ratio: 85 dB
• Factory Pack Quantity: 75
• Subcategory: Audio ICs
• Unit Weight: 0.002677 oz
