TPIC46L02DBG4

TPIC46L02DBG4 Overview

This product is manufactured by Texas Instruments. Half-Bridge Drivers This device belongs to the Non-Inverting type. The product can operate at a maximum temperature of SMD/SMT. SSOP-28 package/case type is utilized by this product. Output current: 2.5 mA Rise Time is 30 ns. 20 ns fall time Supply Voltage - Min: 4.5 V Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing Texas Instruments is a trusted brand for quality electronics 5 V operating supply voltage range Gate Drivers product type 50 of 100 PMIC - Power Management ICs as subcategory 1. 0.025045 oz of Unit Weight

TPIC46L02DBG4 Image

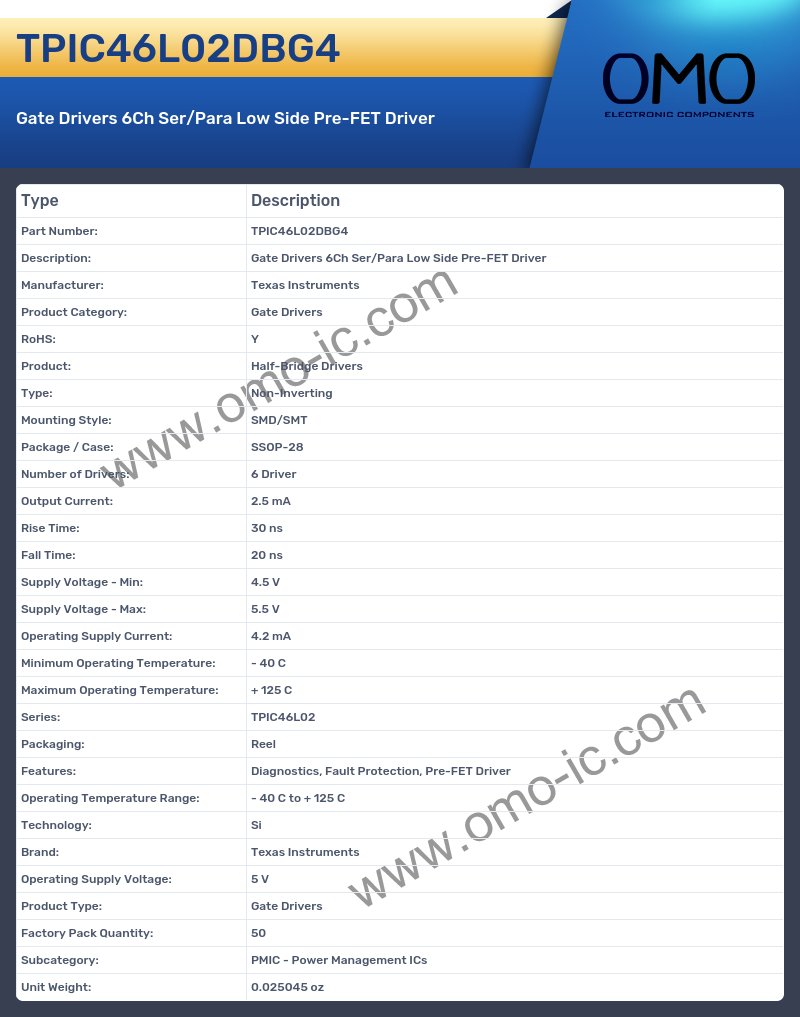

TPIC46L02DBG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: Y
• Product: Half-Bridge Drivers
• Type: Non-Inverting
• Mounting Style: SMD/SMT
• Package / Case: SSOP-28
• Number of Drivers: 6 Driver
• Output Current: 2.5 mA
• Rise Time: 30 ns
• Fall Time: 20 ns
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 5.5 V
• Operating Supply Current: 4.2 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: TPIC46L02
• Packaging: Reel
• Features: Diagnostics, Fault Protection, Pre-FET Driver
• Operating Temperature Range: - 40 C to + 125 C
• Technology: Si
• Brand: Texas Instruments
• Operating Supply Voltage: 5 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 50
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.025045 oz
