TPS2816DBVT

TPS2816DBVT Overview

This product is manufactured by Texas Instruments. This device belongs to the Inverting type. The product can operate at a maximum temperature of SMD/SMT. SOT-23-5 package/case type is utilized by this product. 1 Output is the number of outputs provided by this product. Output current: 2 A This product has a Single configuration. Rise Time is 14 ns. 14 ns fall time Supply Voltage - Min: 4 V Supply Voltage - Max: 14 V 437 mW The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing Texas Instruments is a trusted brand for quality electronics CMOS. 4 V to 14 V operating supply voltage range Gate Drivers product type 250 of 100 PMIC - Power Management ICs as subcategory 1. 0.000222 oz of Unit Weight

TPS2816DBVT Image

TPS2816DBVT Specifications

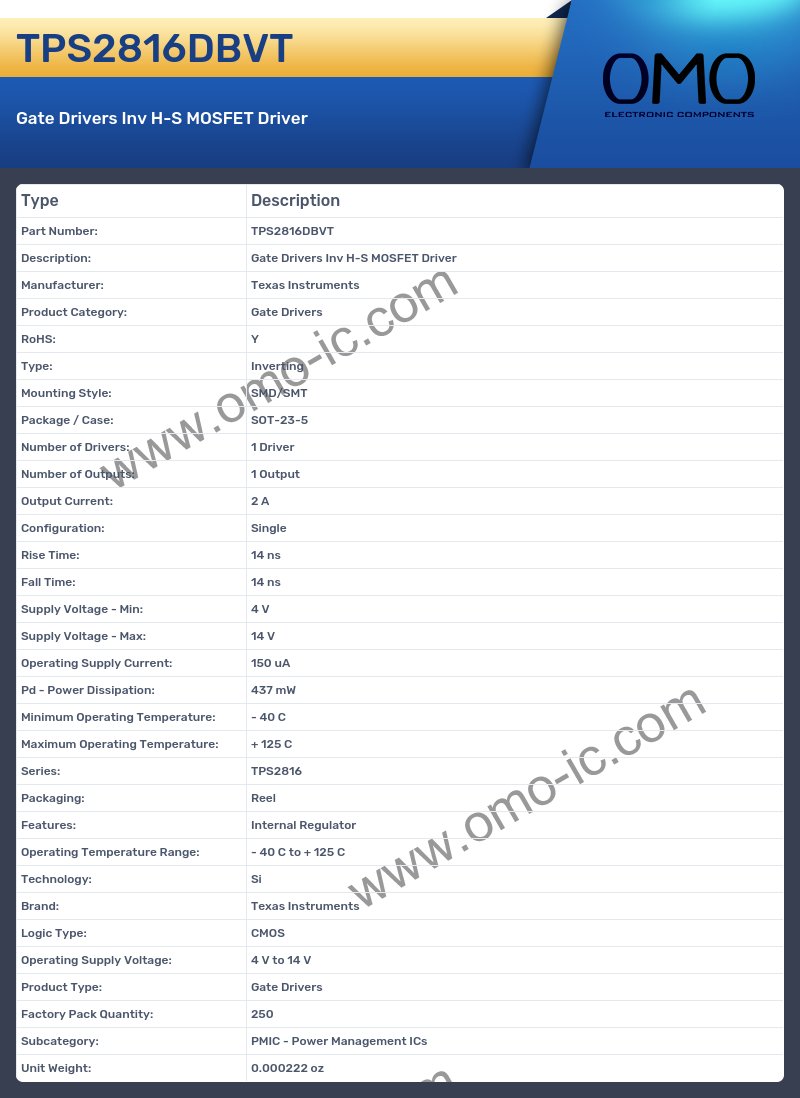

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: Y
• Type: Inverting
• Mounting Style: SMD/SMT
• Package / Case: SOT-23-5
• Number of Drivers: 1 Driver
• Number of Outputs: 1 Output
• Output Current: 2 A
• Configuration: Single
• Rise Time: 14 ns
• Fall Time: 14 ns
• Supply Voltage - Min: 4 V
• Supply Voltage - Max: 14 V
• Operating Supply Current: 150 uA
• Pd - Power Dissipation: 437 mW
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: TPS2816
• Packaging: Reel
• Features: Internal Regulator
• Operating Temperature Range: - 40 C to + 125 C
• Technology: Si
• Brand: Texas Instruments
• Logic Type: CMOS
• Operating Supply Voltage: 4 V to 14 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 250
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.000222 oz
