TPS3600D20PW

TPS3600D20PW Overview

This product is manufactured by Texas Instruments. This device belongs to the Voltage Supervisory type. The product can operate at a maximum temperature of SMD/SMT. TSSOP-14 package/case type is utilized by this product. 1.91 V threshold voltage range The output type is Active-low,Push-pull. 100 ms. Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.15 mm. 5.1 mm long Texas Instruments is a trusted brand for quality electronics 1.82 V is specified as a product attribute. The 1.78 V is a critical parameter in this product. Chip Enable signal is supported. 2 V operating supply voltage range 700 mW Supervisory Circuits product type 90 of 100 PMIC - Power Management ICs as subcategory Supply Voltage - Min: 1.65 V 1. 0.002078 oz of Unit Weight

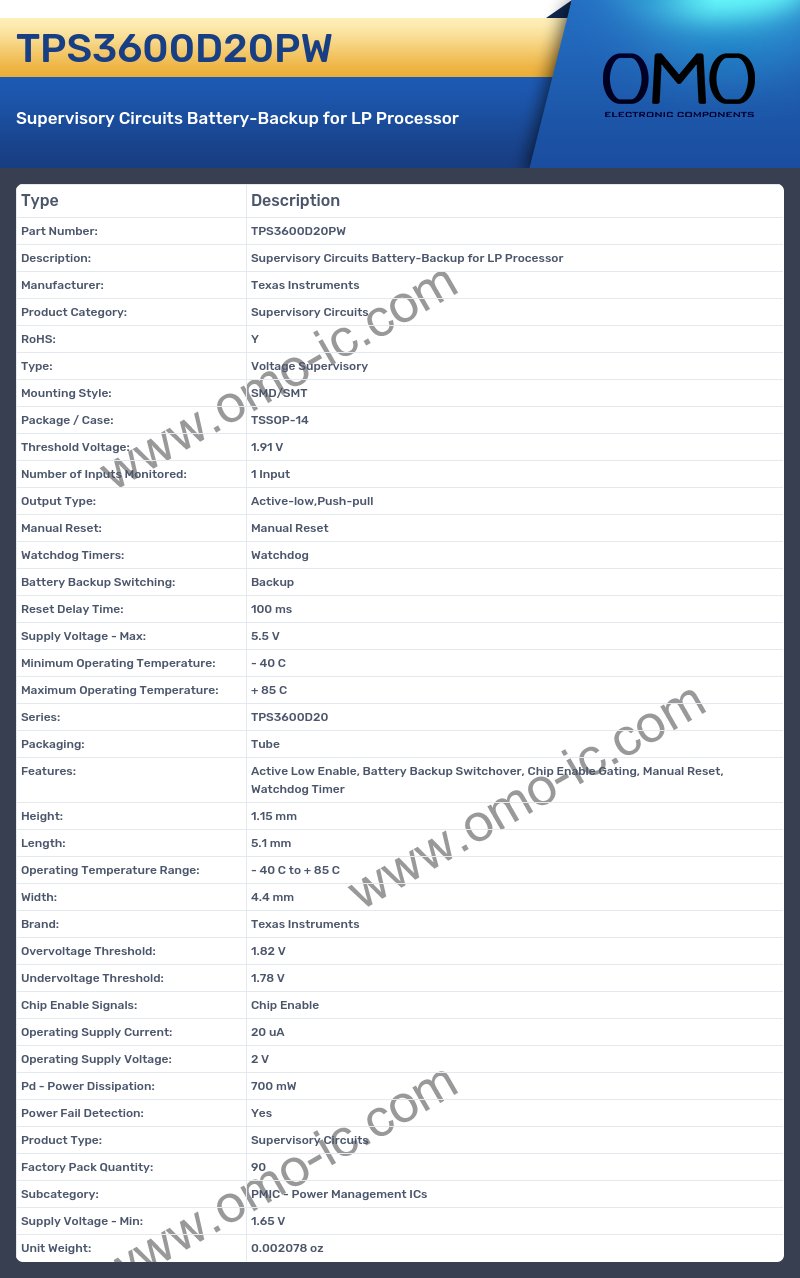

TPS3600D20PW Image

TPS3600D20PW Specifications

• Manufacturer: Texas Instruments
• Product Category: Supervisory Circuits
• RoHS: Y
• Type: Voltage Supervisory
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-14
• Threshold Voltage: 1.91 V
• Number of Inputs Monitored: 1 Input
• Output Type: Active-low,Push-pull
• Manual Reset: Manual Reset
• Watchdog Timers: Watchdog
• Battery Backup Switching: Backup
• Reset Delay Time: 100 ms
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Series: TPS3600D20
• Packaging: Tube
• Features: Active Low Enable, Battery Backup Switchover, Chip Enable Gating, Manual Reset, Watchdog Timer
• Height: 1.15 mm
• Length: 5.1 mm
• Operating Temperature Range: - 40 C to + 85 C
• Width: 4.4 mm
• Brand: Texas Instruments
• Overvoltage Threshold: 1.82 V
• Undervoltage Threshold: 1.78 V
• Chip Enable Signals: Chip Enable
• Operating Supply Current: 20 uA
• Operating Supply Voltage: 2 V
• Pd - Power Dissipation: 700 mW
• Power Fail Detection: Yes
• Product Type: Supervisory Circuits
• Factory Pack Quantity: 90
• Subcategory: PMIC - Power Management ICs
• Supply Voltage - Min: 1.65 V
• Unit Weight: 0.002078 oz
