UC3526ADWG4

UC3526ADWG4 Overview

This product is manufactured by Texas Instruments. Boost, Buck, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull Topology 2 Output is the number of outputs provided by this product. 450 kHz is 60 kHz. Output current: 200 mA The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-Wide-18 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 2.35 mm. 11.62 mm long This device belongs to the Voltage Mode PWM Controllers type. Texas Instruments is a trusted brand for quality electronics 100 ns fall time Yes regarding Moisture Sensitivity Switching Controllers product type Rise Time is 300 ns. 40 of 100 PMIC - Power Management ICs as subcategory

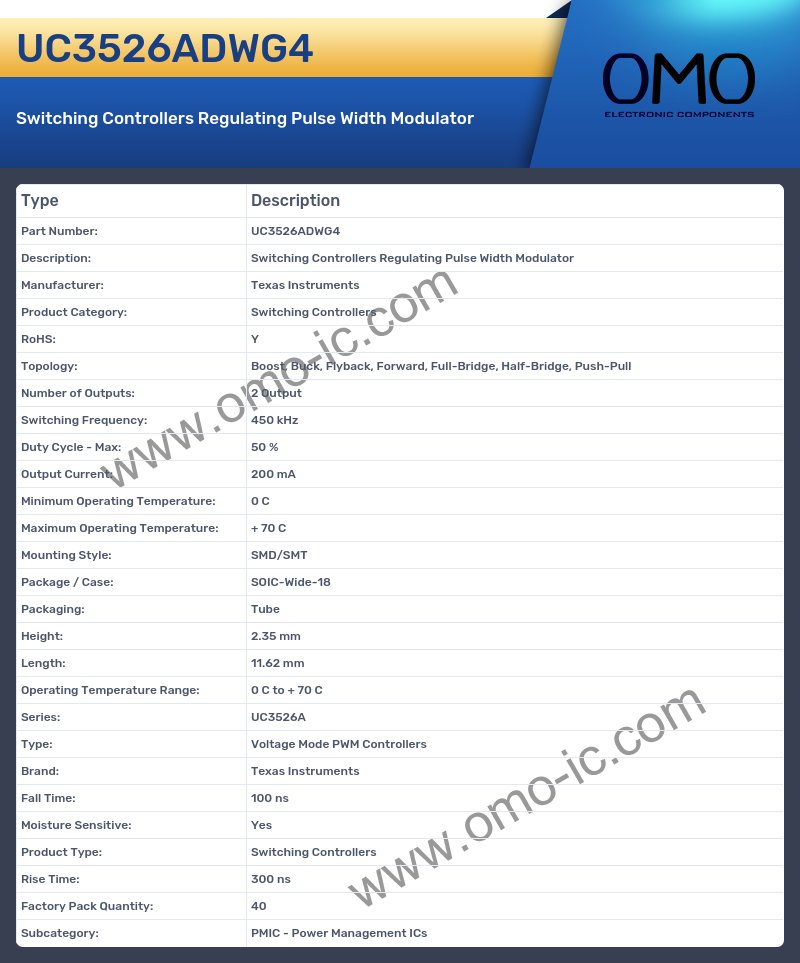

UC3526ADWG4 Image

UC3526ADWG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Controllers
• RoHS: Y
• Topology: Boost, Buck, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull
• Number of Outputs: 2 Output
• Switching Frequency: 450 kHz
• Duty Cycle - Max: 50 %
• Output Current: 200 mA
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-Wide-18
• Packaging: Tube
• Height: 2.35 mm
• Length: 11.62 mm
• Operating Temperature Range: 0 C to + 70 C
• Series: UC3526A
• Type: Voltage Mode PWM Controllers
• Brand: Texas Instruments
• Fall Time: 100 ns
• Moisture Sensitive: Yes
• Product Type: Switching Controllers
• Rise Time: 300 ns
• Factory Pack Quantity: 40
• Subcategory: PMIC - Power Management ICs
