UC3705N

UC3705N Overview

This product is manufactured by Texas Instruments. This device belongs to the Inverting, Non-Inverting type. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. 1 Output is the number of outputs provided by this product. Output current: 1.5 A This product has a Single configuration. Rise Time is 40 ns. 40 ns fall time Supply Voltage - Min: 5 V Supply Voltage - Max: 40 V 1000 mW The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. Tube packaging for easy dispensing Texas Instruments is a trusted brand for quality electronics TTL. 5 V to 40 V operating supply voltage range Gate Drivers product type 50 of 100 PMIC - Power Management ICs as subcategory 1. 0.018646 oz of Unit Weight

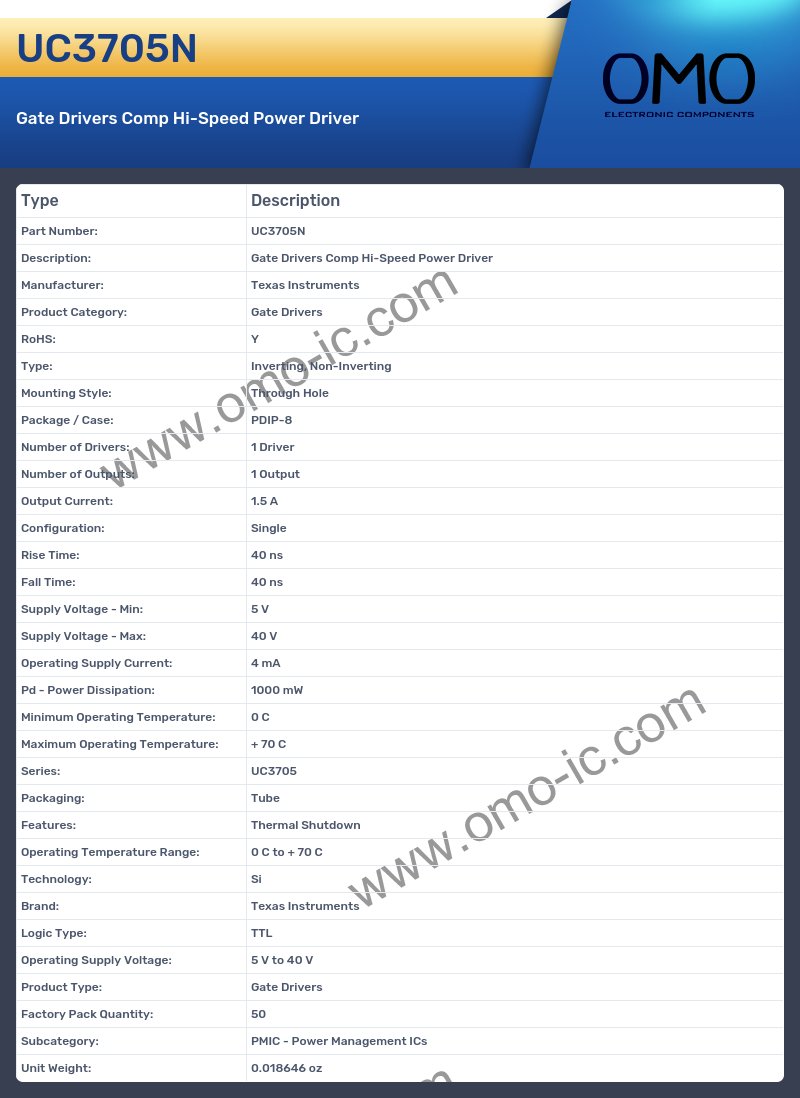

UC3705N Image

UC3705N Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: Y
• Type: Inverting, Non-Inverting
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Number of Drivers: 1 Driver
• Number of Outputs: 1 Output
• Output Current: 1.5 A
• Configuration: Single
• Rise Time: 40 ns
• Fall Time: 40 ns
• Supply Voltage - Min: 5 V
• Supply Voltage - Max: 40 V
• Operating Supply Current: 4 mA
• Pd - Power Dissipation: 1000 mW
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Series: UC3705
• Packaging: Tube
• Features: Thermal Shutdown
• Operating Temperature Range: 0 C to + 70 C
• Technology: Si
• Brand: Texas Instruments
• Logic Type: TTL
• Operating Supply Voltage: 5 V to 40 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 50
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.018646 oz
