UCC21541DW

UCC21541DW Overview

This product is manufactured by Texas Instruments. Isolated Gate Drivers This device belongs to the High Side, Low Side type. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. 2 Output is the number of outputs provided by this product. Output current: 2.5 A Rise Time is 8 ns. 15 ns fall time Supply Voltage - Min: 3 V Supply Voltage - Max: 5.5 V Maximum propagation delay: 40 ns 1775 mW The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing Output Voltage is 9.2 V to 18 V Texas Instruments is a trusted brand for quality electronics CMOS, TTL. Yes regarding Moisture Sensitivity Gate Drivers product type Rds On value of 10 Ohms 40 of 100 PMIC - Power Management ICs as subcategory

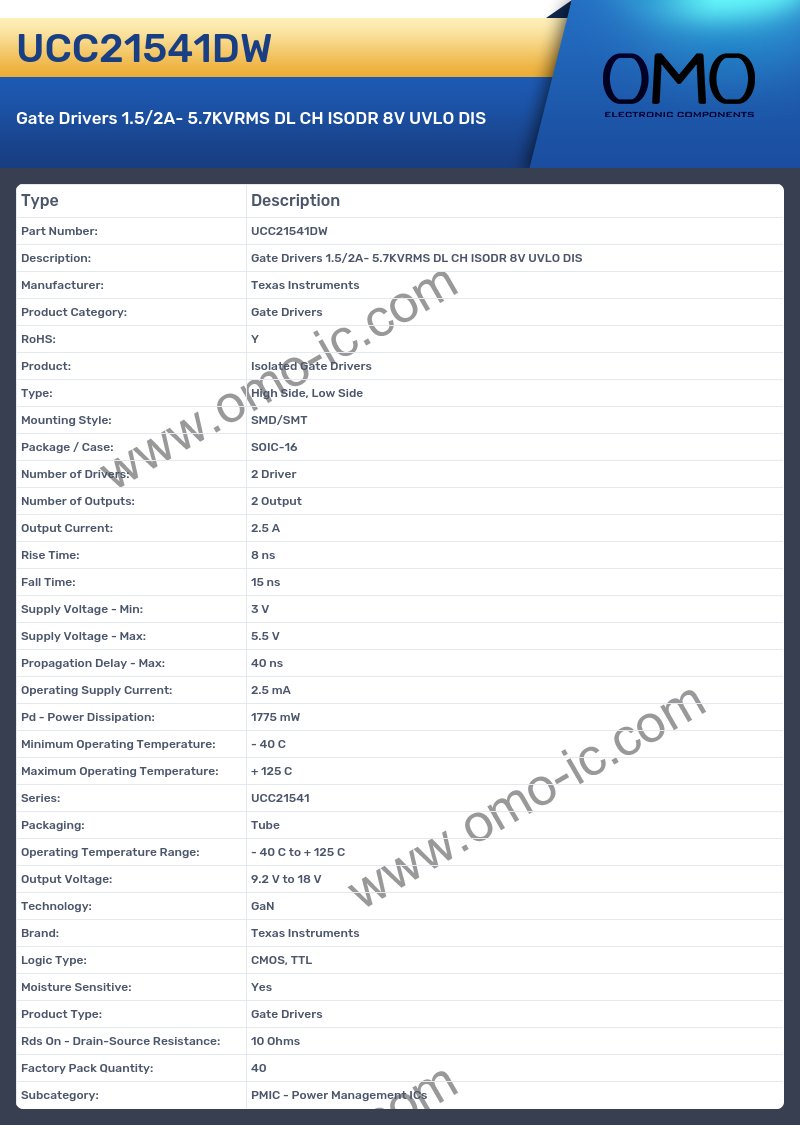

UCC21541DW Image

UCC21541DW Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: Y
• Product: Isolated Gate Drivers
• Type: High Side, Low Side
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Number of Drivers: 2 Driver
• Number of Outputs: 2 Output
• Output Current: 2.5 A
• Rise Time: 8 ns
• Fall Time: 15 ns
• Supply Voltage - Min: 3 V
• Supply Voltage - Max: 5.5 V
• Propagation Delay - Max: 40 ns
• Operating Supply Current: 2.5 mA
• Pd - Power Dissipation: 1775 mW
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: UCC21541
• Packaging: Tube
• Operating Temperature Range: - 40 C to + 125 C
• Output Voltage: 9.2 V to 18 V
• Technology: GaN
• Brand: Texas Instruments
• Logic Type: CMOS, TTL
• Moisture Sensitive: Yes
• Product Type: Gate Drivers
• Rds On - Drain-Source Resistance: 10 Ohms
• Factory Pack Quantity: 40
• Subcategory: PMIC - Power Management ICs
