UCC25630-4DDBT

UCC25630-4DDBT Overview

This product is manufactured by Texas Instruments. Half Bridge, Resonant Topology 2 Output is the number of outputs provided by this product. 35 kHz to 1 MHz is 60 kHz. 13 V to 26 V Input Voltage Output current: 600 mA The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. Reel packaging for easy dispensing Isolated is the isolation property. Resonant Controllers Texas Instruments is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. 25 ns fall time Yes regarding Moisture Sensitivity 15 V operating supply voltage range Switching Controllers product type Rise Time is 35 ns. 250 of 100 PMIC - Power Management ICs as subcategory 1. 0.005965 oz of Unit Weight

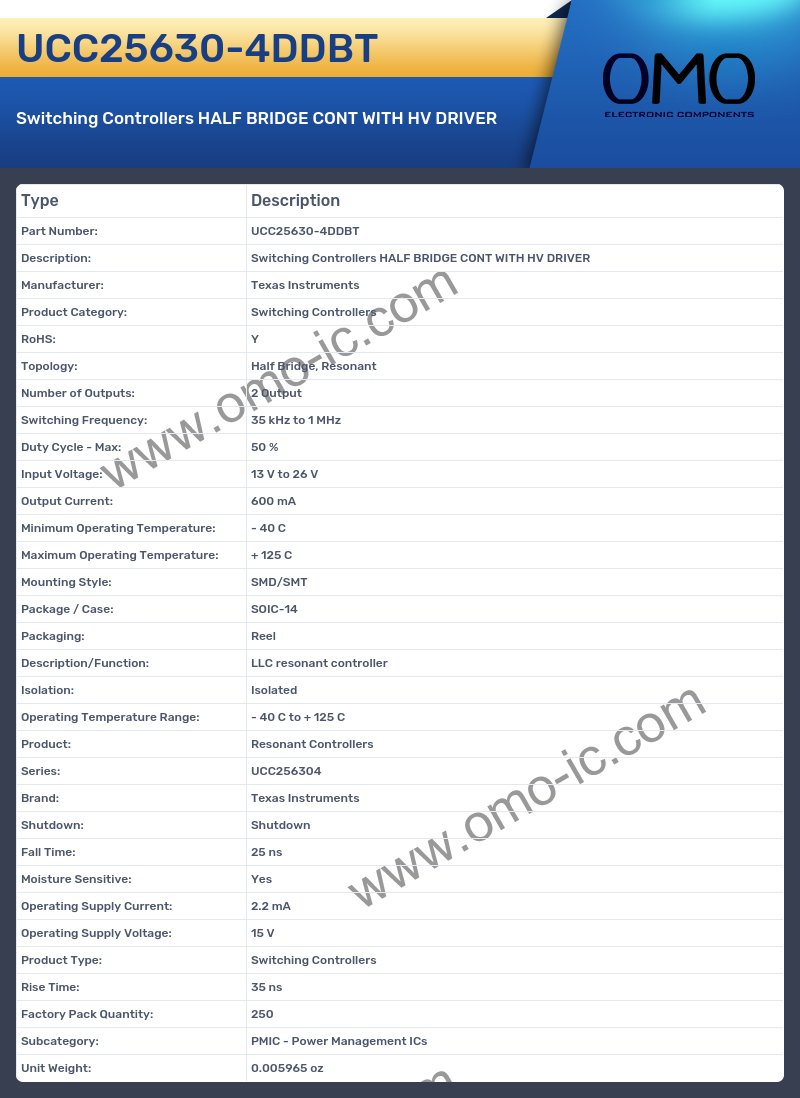

UCC25630-4DDBT Image

UCC25630-4DDBT Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Controllers
• RoHS: Y
• Topology: Half Bridge, Resonant
• Number of Outputs: 2 Output
• Switching Frequency: 35 kHz to 1 MHz
• Duty Cycle - Max: 50 %
• Input Voltage: 13 V to 26 V
• Output Current: 600 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-14
• Packaging: Reel
• Description/Function: LLC resonant controller
• Isolation: Isolated
• Operating Temperature Range: - 40 C to + 125 C
• Product: Resonant Controllers
• Series: UCC256304
• Brand: Texas Instruments
• Shutdown: Shutdown
• Fall Time: 25 ns
• Moisture Sensitive: Yes
• Operating Supply Current: 2.2 mA
• Operating Supply Voltage: 15 V
• Product Type: Switching Controllers
• Rise Time: 35 ns
• Factory Pack Quantity: 250
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.005965 oz
