UCC2570DG4

UCC2570DG4 Overview

This product is manufactured by Texas Instruments. Boost, Flyback, Forward Topology 1 Output is the number of outputs provided by this product. 500 kHz is 60 kHz. Output current: 1000 mA The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1.58 mm. 8.65 mm long This device belongs to the Voltage Mode PWM Controllers type. Texas Instruments is a trusted brand for quality electronics 20 ns fall time 15 V operating supply voltage range Switching Controllers product type Rise Time is 20 ns. 1 of 100 PMIC - Power Management ICs as subcategory 1. 0.004318 oz of Unit Weight

UCC2570DG4 Image

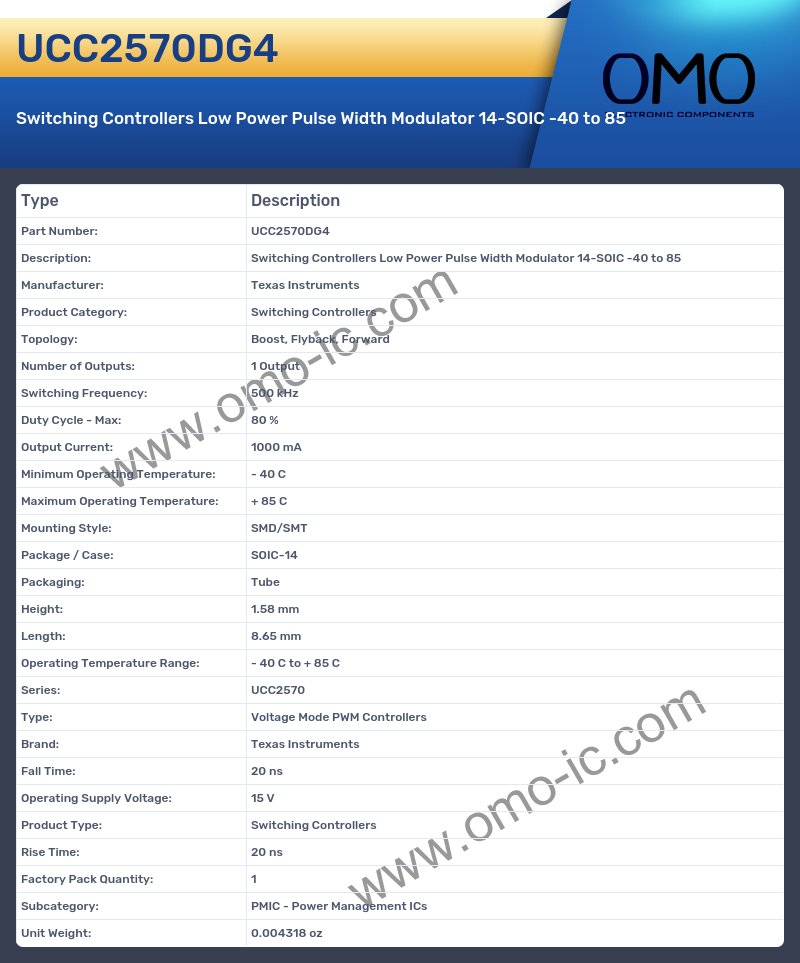

UCC2570DG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Controllers
• Topology: Boost, Flyback, Forward
• Number of Outputs: 1 Output
• Switching Frequency: 500 kHz
• Duty Cycle - Max: 80 %
• Output Current: 1000 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-14
• Packaging: Tube
• Height: 1.58 mm
• Length: 8.65 mm
• Operating Temperature Range: - 40 C to + 85 C
• Series: UCC2570
• Type: Voltage Mode PWM Controllers
• Brand: Texas Instruments
• Fall Time: 20 ns
• Operating Supply Voltage: 15 V
• Product Type: Switching Controllers
• Rise Time: 20 ns
• Factory Pack Quantity: 1
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.004318 oz
