UCC2806DW

UCC2806DW Overview

This product is manufactured by Texas Instruments. Boost, Flyback, Forward Topology 2 Output is the number of outputs provided by this product. 1000 kHz is 60 kHz. Output current: 500 mA The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. Tube packaging for easy dispensing This device belongs to the Current Mode PWM Controllers type. Texas Instruments is a trusted brand for quality electronics 35 ns fall time Yes regarding Moisture Sensitivity Switching Controllers product type Rise Time is 35 ns. 40 of 100 PMIC - Power Management ICs as subcategory 1. 0.016709 oz of Unit Weight

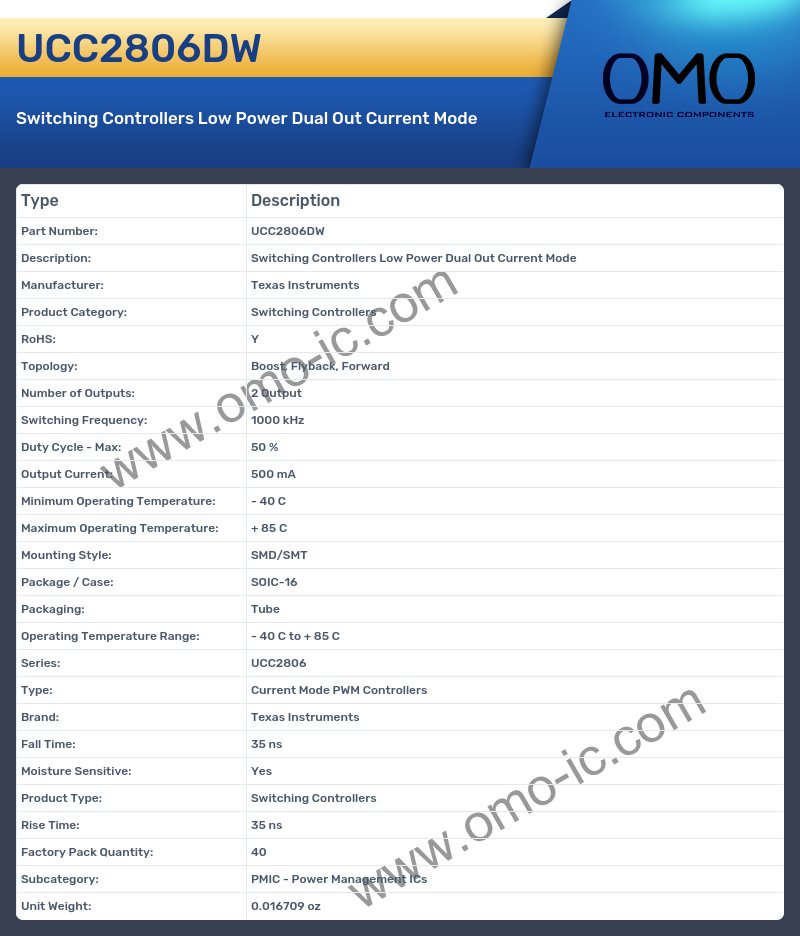

UCC2806DW Image

UCC2806DW Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Controllers
• RoHS: Y
• Topology: Boost, Flyback, Forward
• Number of Outputs: 2 Output
• Switching Frequency: 1000 kHz
• Duty Cycle - Max: 50 %
• Output Current: 500 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Packaging: Tube
• Operating Temperature Range: - 40 C to + 85 C
• Series: UCC2806
• Type: Current Mode PWM Controllers
• Brand: Texas Instruments
• Fall Time: 35 ns
• Moisture Sensitive: Yes
• Product Type: Switching Controllers
• Rise Time: 35 ns
• Factory Pack Quantity: 40
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.016709 oz
