UCC2809D-1 Overview

This product is manufactured by Texas Instruments. Boost, Flyback, Forward Topology 1 Output is the number of outputs provided by this product. 1000 kHz is 60 kHz. Output current: 800 mA The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1.58 mm. 4.9 mm long This device belongs to the Economy Primary Side PWM Controller type. Texas Instruments is a trusted brand for quality electronics Switching Controllers product type 75 of 100 PMIC - Power Management ICs as subcategory 1. 0.002561 oz of Unit Weight

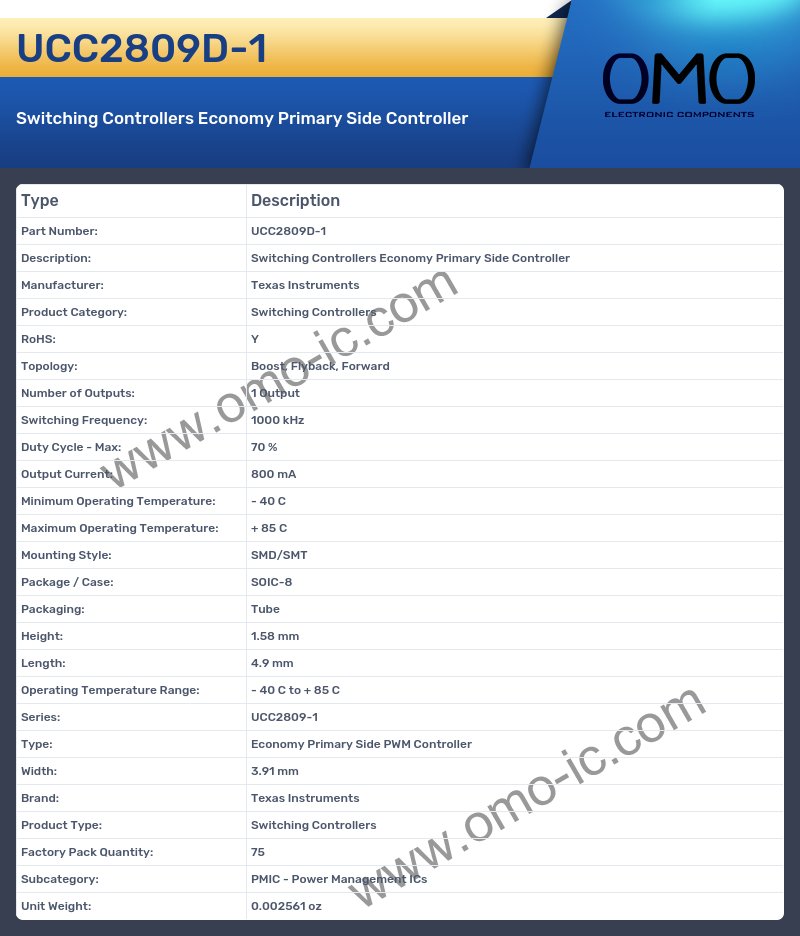

UCC2809D-1 Image

UCC2809D-1 Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Controllers
• RoHS: Y
• Topology: Boost, Flyback, Forward
• Number of Outputs: 1 Output
• Switching Frequency: 1000 kHz
• Duty Cycle - Max: 70 %
• Output Current: 800 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Packaging: Tube
• Height: 1.58 mm
• Length: 4.9 mm
• Operating Temperature Range: - 40 C to + 85 C
• Series: UCC2809-1
• Type: Economy Primary Side PWM Controller
• Width: 3.91 mm
• Brand: Texas Instruments
• Product Type: Switching Controllers
• Factory Pack Quantity: 75
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.002561 oz
