UCC284SDR-5EP

UCC284SDR-5EP Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Output Voltage is - 5 V Output current: 500 mA 1 Output is the number of outputs provided by this product. Polarity type: Negative Maximum input voltage is - 15 V The output type is Fixed. The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 100 C. Minimum Dropout Voltage: 200 mV Reel packaging for easy dispensing The height of the product is 1.58 mm. 4.9 mm long Texas Instruments is a trusted brand for quality electronics Maximum dropout voltage is 500 mV at 500 mA This product has an 200 uA of 5 uA for precise signal processing. Load regulation is 0.25 %. Yes regarding Moisture Sensitivity LDO Voltage Regulators product type 2500 of 100 PMIC - Power Management ICs as subcategory This product is also known by the V62/09609-01XE number of 934069005115. 1. 0.002561 oz of Unit Weight

UCC284SDR-5EP Image

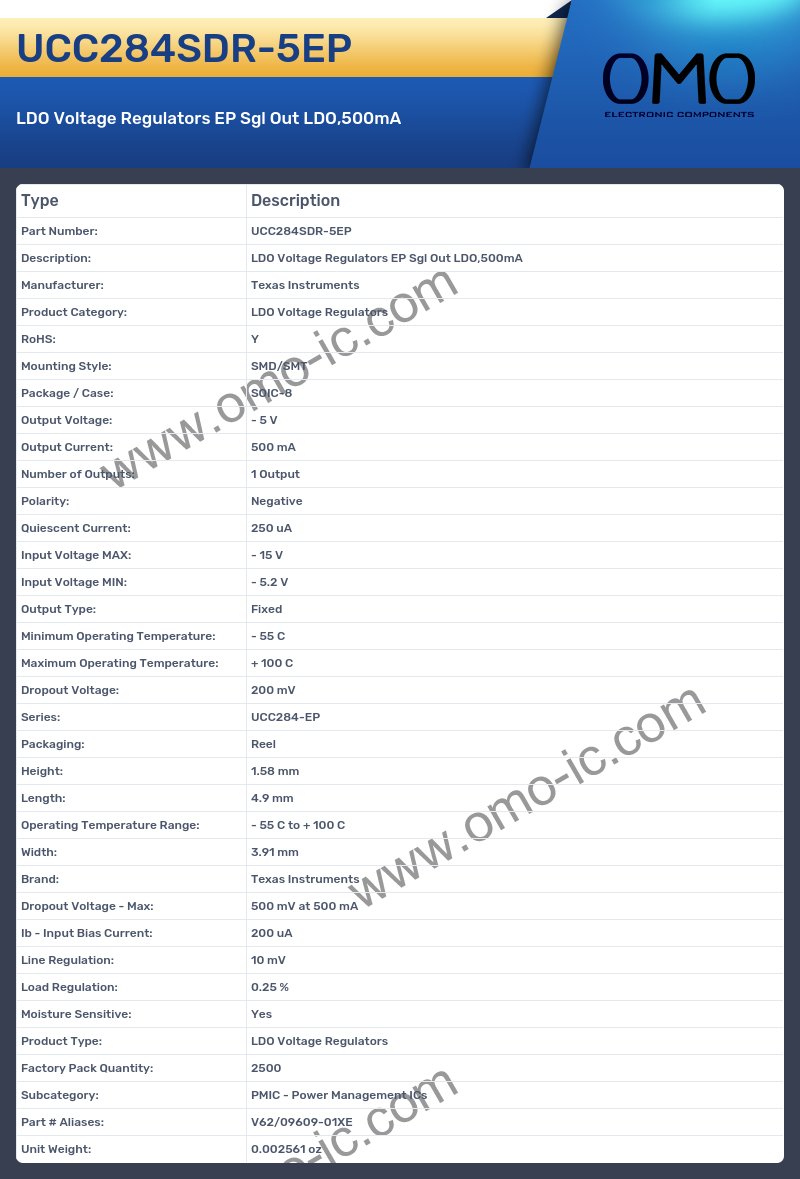

UCC284SDR-5EP Specifications

• Manufacturer: Texas Instruments
• Product Category: LDO Voltage Regulators
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Output Voltage: - 5 V
• Output Current: 500 mA
• Number of Outputs: 1 Output
• Polarity: Negative
• Quiescent Current: 250 uA
• Input Voltage MAX: - 15 V
• Input Voltage MIN: - 5.2 V
• Output Type: Fixed
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 100 C
• Dropout Voltage: 200 mV
• Series: UCC284-EP
• Packaging: Reel
• Height: 1.58 mm
• Length: 4.9 mm
• Operating Temperature Range: - 55 C to + 100 C
• Width: 3.91 mm
• Brand: Texas Instruments
• Dropout Voltage - Max: 500 mV at 500 mA
• Ib - Input Bias Current: 200 uA
• Line Regulation: 10 mV
• Load Regulation: 0.25 %
• Moisture Sensitive: Yes
• Product Type: LDO Voltage Regulators
• Factory Pack Quantity: 2500
• Subcategory: PMIC - Power Management ICs
• Part # Aliases: V62/09609-01XE
• Unit Weight: 0.002561 oz
