UCC37325P

UCC37325P Overview

This product is manufactured by Texas Instruments. This device belongs to the Low Side type. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. 2 Output is the number of outputs provided by this product. Output current: 4 A Rise Time is 23 ns. 23 ns fall time Supply Voltage - Min: 4 V Supply Voltage - Max: 15 V 780 mW The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. Tube packaging for easy dispensing Texas Instruments is a trusted brand for quality electronics CMOS. 4 V to 15 V operating supply voltage range Gate Drivers product type 50 of 100 PMIC - Power Management ICs as subcategory 1. 0.015535 oz of Unit Weight

UCC37325P Image

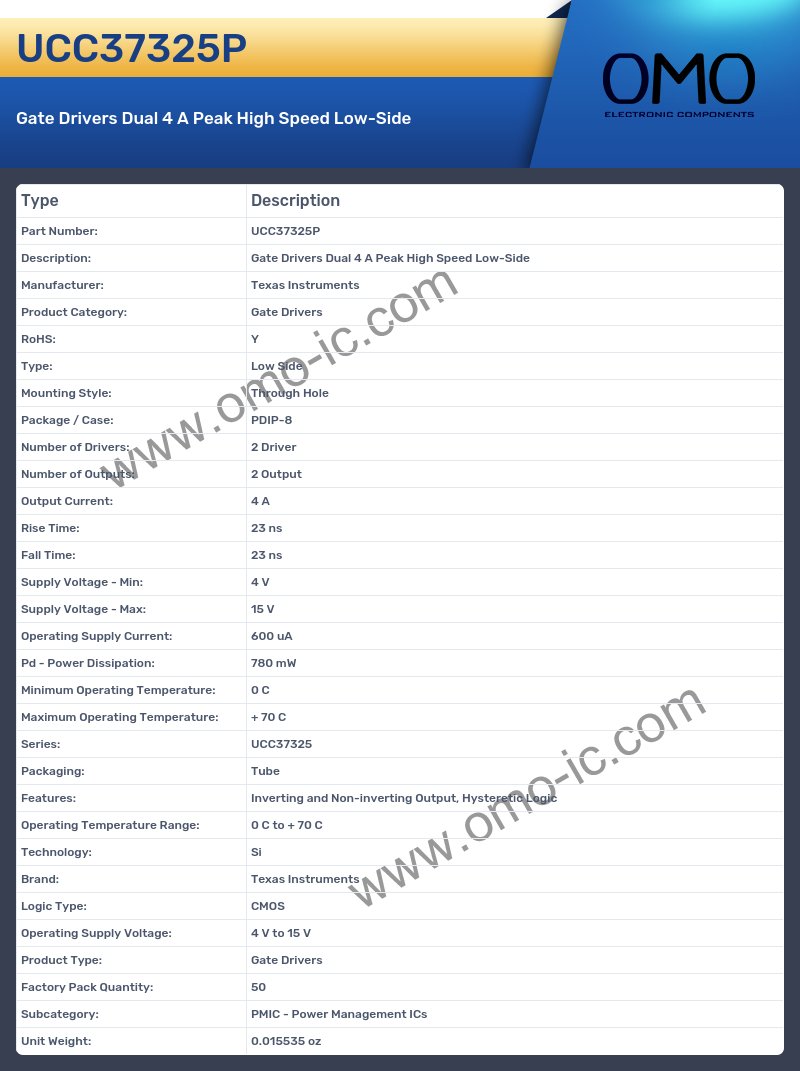

UCC37325P Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: Y
• Type: Low Side
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Number of Drivers: 2 Driver
• Number of Outputs: 2 Output
• Output Current: 4 A
• Rise Time: 23 ns
• Fall Time: 23 ns
• Supply Voltage - Min: 4 V
• Supply Voltage - Max: 15 V
• Operating Supply Current: 600 uA
• Pd - Power Dissipation: 780 mW
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Series: UCC37325
• Packaging: Tube
• Features: Inverting and Non-inverting Output, Hysteretic Logic
• Operating Temperature Range: 0 C to + 70 C
• Technology: Si
• Brand: Texas Instruments
• Logic Type: CMOS
• Operating Supply Voltage: 4 V to 15 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 50
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.015535 oz
