UCD7201PWPG4

UCD7201PWPG4 Overview

This product is manufactured by Texas Instruments. This device belongs to the Low Side type. The product can operate at a maximum temperature of SMD/SMT. HTSSOP-14 package/case type is utilized by this product. 2 Output is the number of outputs provided by this product. Output current: 4 A This product has a Dual configuration. Rise Time is 10 ns. 10 ns fall time Supply Voltage - Min: 4.5 V Supply Voltage - Max: 16 V 2670 mW The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 105 C. Tube packaging for easy dispensing Texas Instruments is a trusted brand for quality electronics CMOS, TTL. Yes regarding Moisture Sensitivity 4.5 V to 16 V operating supply voltage range Gate Drivers product type 90 of 100 PMIC - Power Management ICs as subcategory 1. 0.002046 oz of Unit Weight

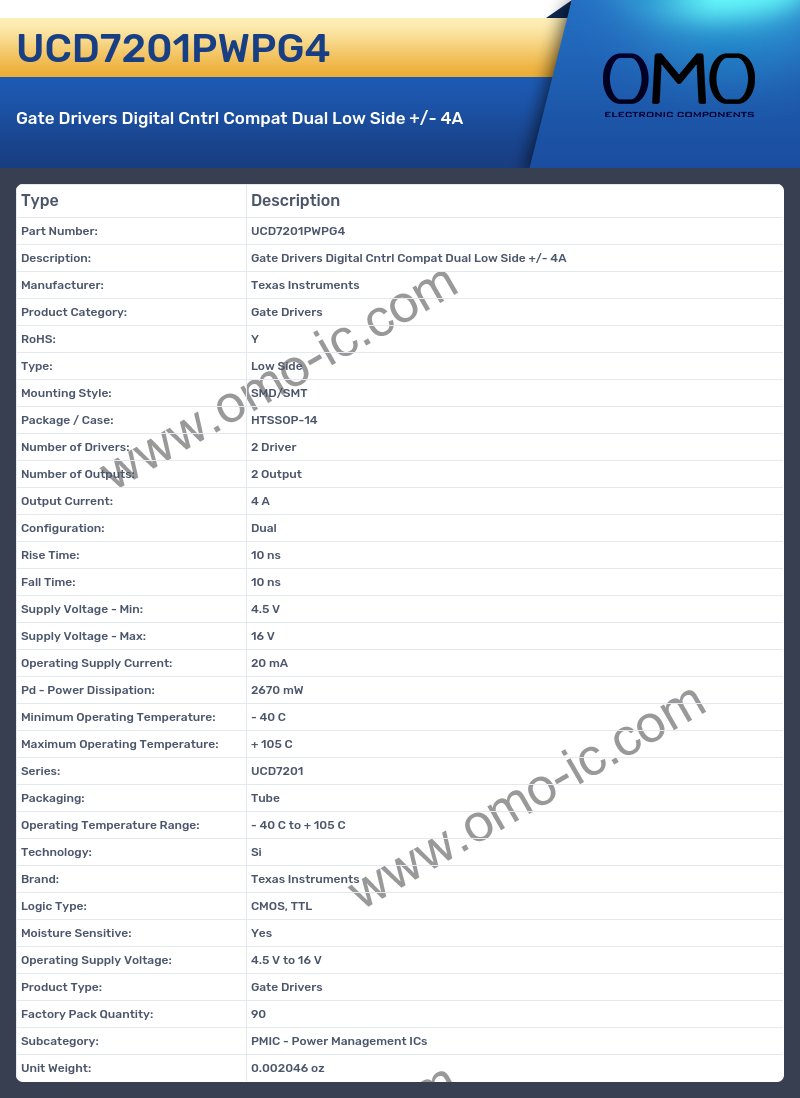

UCD7201PWPG4 Image

UCD7201PWPG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: Y
• Type: Low Side
• Mounting Style: SMD/SMT
• Package / Case: HTSSOP-14
• Number of Drivers: 2 Driver
• Number of Outputs: 2 Output
• Output Current: 4 A
• Configuration: Dual
• Rise Time: 10 ns
• Fall Time: 10 ns
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 16 V
• Operating Supply Current: 20 mA
• Pd - Power Dissipation: 2670 mW
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 105 C
• Series: UCD7201
• Packaging: Tube
• Operating Temperature Range: - 40 C to + 105 C
• Technology: Si
• Brand: Texas Instruments
• Logic Type: CMOS, TTL
• Moisture Sensitive: Yes
• Operating Supply Voltage: 4.5 V to 16 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 90
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.002046 oz
