A6986TR Overview

Product belongs to the Automotive, AEC-Q100 series. Type: Switching Regulator Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002212 oz SMD/SMT Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications HTSSOP-16 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 16-HTSSOP Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 225kHz ~ 2.2MHz for optimal performance. The Positive. Minimum fixed output voltage is 0.85V . The value of Yes is included as a product attribute. The minimum input voltage is 4V. The 38V. Power-off control: Shutdown Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Output voltage: Adj 2 A is 92 nA. Input Voltage Range: 4 V to 38 V Maximum Input Voltage: 38 V Output current: 2 A Switching frequency is 250 kHz to 2 MHz The product's 4 V is 5.1 V.

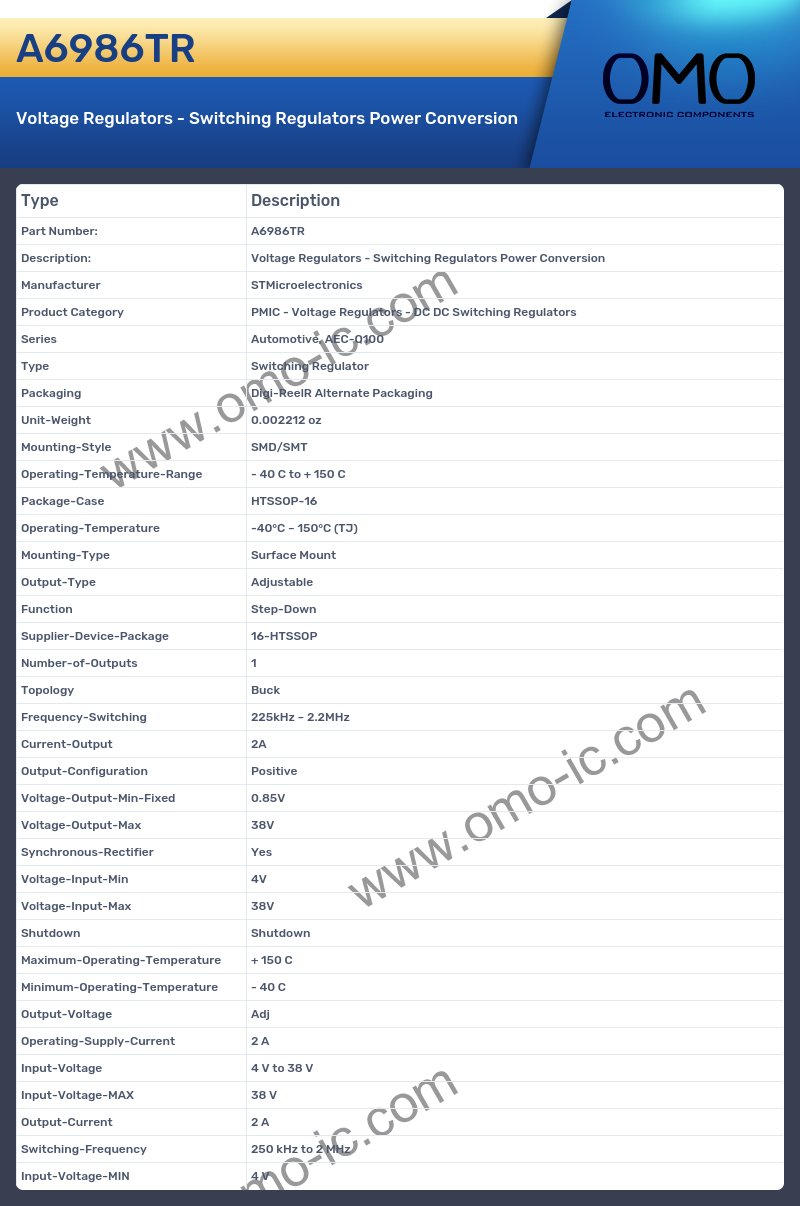

A6986TR Image

A6986TR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series Automotive, AEC-Q100
• Type Switching Regulator
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002212 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 150 C
• Package-Case HTSSOP-16
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 16-HTSSOP
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 225kHz ~ 2.2MHz
• Current-Output 2A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.85V
• Voltage-Output-Max 38V
• Synchronous-Rectifier Yes
• Voltage-Input-Min 4V
• Voltage-Input-Max 38V
• Shutdown Shutdown
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage Adj
• Operating-Supply-Current 2 A
• Input-Voltage 4 V to 38 V
• Input-Voltage-MAX 38 V
• Output-Current 2 A
• Switching-Frequency 250 kHz to 2 MHz
• Input-Voltage-MIN 4 V
