ADL5601ARKZ-R7

ADL5601ARKZ-R7 Overview

Product belongs to the ADL5601 series. Type: Gain Block Amplifier Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004603 oz SMD/SMT Mounting-Style SOT-89-3 This product's 50MHz ~ 4GHz range is 0Hz to 2.2GHz. Number of channels: 1 Channel Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: SOT-89-3 This product has a 83mA of 200μA. The device offers a 15dB of 26dB. Test-Frequency is 900MHz. P1dB is 19dB (79.4mW) RF-Type: General Purpose Power-off control: 600 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. 83 mA is 92 nA. The operating frequency is 50 MHz to 4000 MHz. The ADL5601-EVALZ. NF-Noise-Figure is 3.7 dB 43 dBm OIP3 third-order intercept The - 20 dB

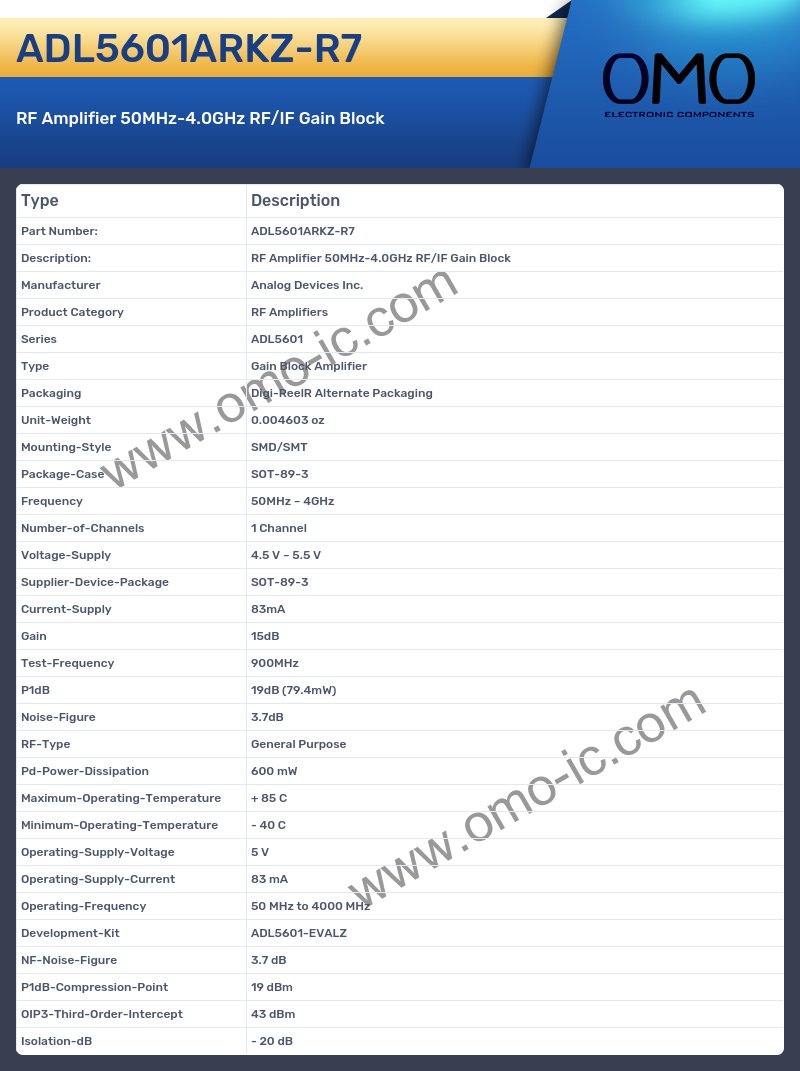

ADL5601ARKZ-R7 Image

ADL5601ARKZ-R7 Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Amplifiers
• Series ADL5601
• Type Gain Block Amplifier
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004603 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-89-3
• Frequency 50MHz ~ 4GHz
• Number-of-Channels 1 Channel
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package SOT-89-3
• Current-Supply 83mA
• Gain 15dB
• Test-Frequency 900MHz
• P1dB 19dB (79.4mW)
• Noise-Figure 3.7dB
• RF-Type General Purpose
• Pd-Power-Dissipation 600 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Operating-Supply-Current 83 mA
• Operating-Frequency 50 MHz to 4000 MHz
• Development-Kit ADL5601-EVALZ
• NF-Noise-Figure 3.7 dB
• P1dB-Compression-Point 19 dBm
• OIP3-Third-Order-Intercept 43 dBm
• Isolation-dB - 20 dB
