ADS1211E Overview

Product belongs to the ADS1211 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.008529 oz SMD/SMT Mounting-Style SSOP-28 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 4 Channel Supplier device package: 28-SSOP This product's 16k. Data-Interface: SPI 24 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration MUX-PGA-ADC The architecture of this product is Sigma-Delta . External, Internal is the reference type. 1 units Power-off control: 60 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial 2-Wire 3-Wire 4-Wire SPI interface type Number-of-Converters: 1 Converter 16 kS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 4.75 V to 5.25 V Integral Nonlinearity: +/- 0.0015 %FSR Reference voltage is 2.5 V . Differential nonlinearity: +/- 1 LSB

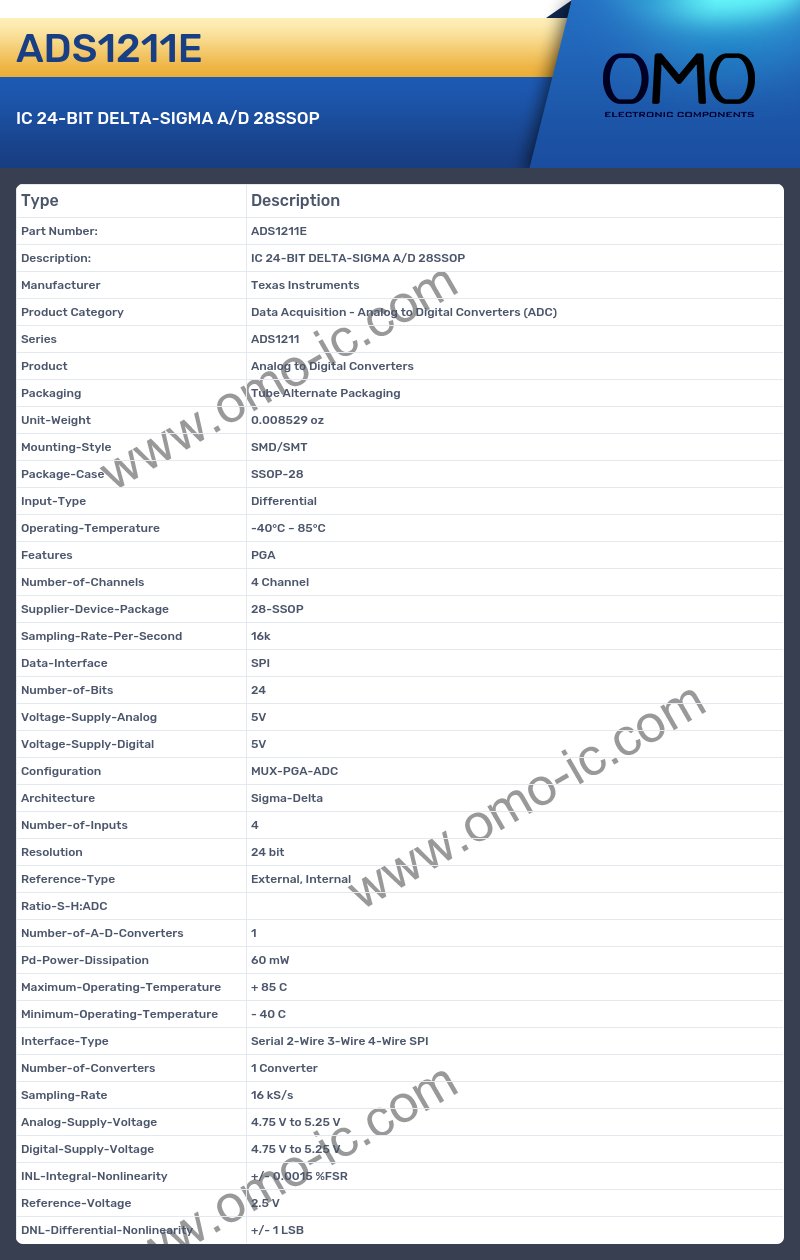

ADS1211E Image

ADS1211E Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS1211
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.008529 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-28
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features PGA
• Number-of-Channels 4 Channel
• Supplier-Device-Package 28-SSOP
• Sampling-Rate-Per-Second 16k
• Data-Interface SPI
• Number-of-Bits 24
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration MUX-PGA-ADC
• Architecture Sigma-Delta
• Number-of-Inputs 4
• Resolution 24 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 60 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 2-Wire 3-Wire 4-Wire SPI
• Number-of-Converters 1 Converter
• Sampling-Rate 16 kS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 4.75 V to 5.25 V
• INL-Integral-Nonlinearity +/- 0.0015 %FSR
• Reference-Voltage 2.5 V
• DNL-Differential-Nonlinearity +/- 1 LSB
