ADS1254E

ADS1254E Overview

Product belongs to the ADS1254 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.004437 oz SMD/SMT Mounting-Style SSOP-20 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 4 Channel Supplier device package: 20-SSOP/QSOP This product's 20k. Data-Interface: SPI 24 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 1.8 V ~ 3.6 V. Configuration MUX-ADC The architecture of this product is Sigma-Delta . External is the reference type. 1 units Power-off control: 500 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial 2-Wire SPI interface type Number-of-Converters: 1 Converter 20 kS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 1.8 V to 3.6 V Integral Nonlinearity: +/- 0.0015 %FSR Reference voltage is 4.096 V . Differential nonlinearity: +/- 1 LSB

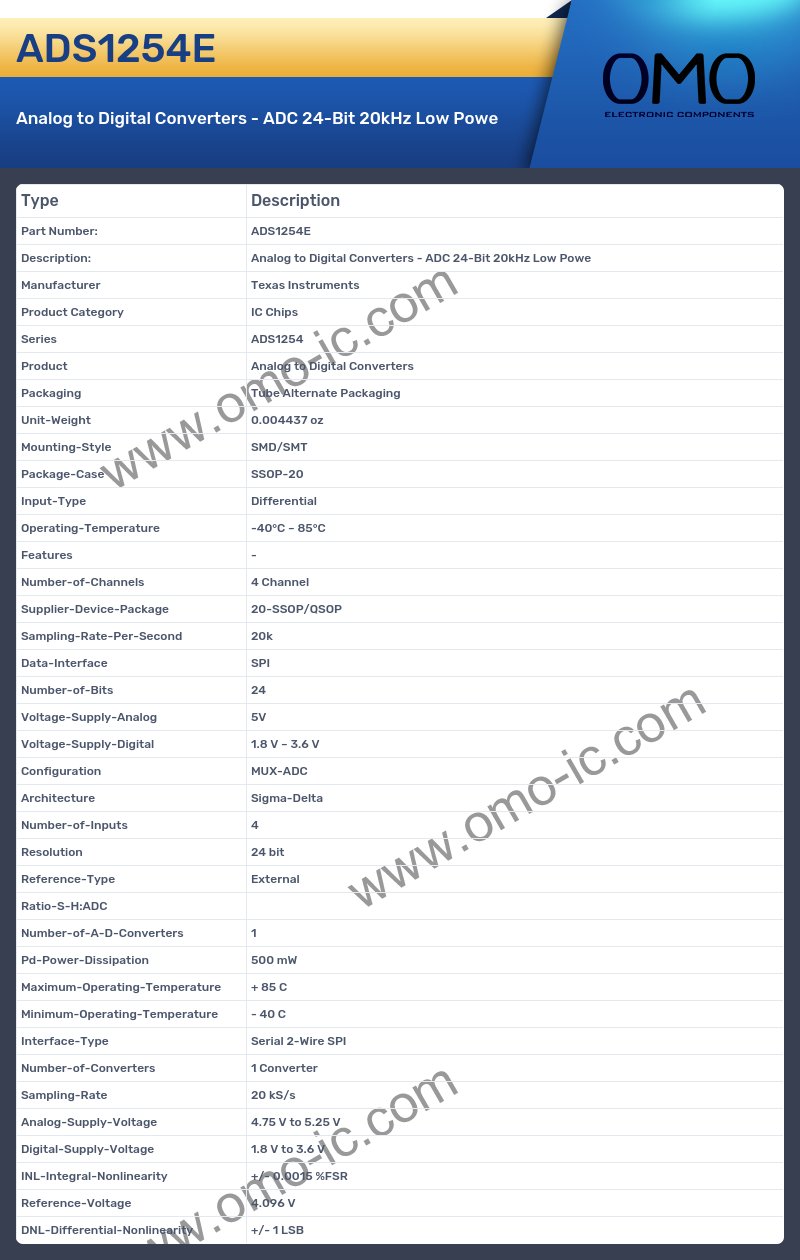

ADS1254E Image

ADS1254E Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series ADS1254
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004437 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-20
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 4 Channel
• Supplier-Device-Package 20-SSOP/QSOP
• Sampling-Rate-Per-Second 20k
• Data-Interface SPI
• Number-of-Bits 24
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 1.8 V ~ 3.6 V
• Configuration MUX-ADC
• Architecture Sigma-Delta
• Number-of-Inputs 4
• Resolution 24 bit
• Reference-Type External
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 500 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 2-Wire SPI
• Number-of-Converters 1 Converter
• Sampling-Rate 20 kS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 1.8 V to 3.6 V
• INL-Integral-Nonlinearity +/- 0.0015 %FSR
• Reference-Voltage 4.096 V
• DNL-Differential-Nonlinearity +/- 1 LSB
