ADS1602IPFBR

ADS1602IPFBR Overview

Product belongs to the ADS1602 series. This product is categorized as Analog to Digital Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.004847 oz SMD/SMT Mounting-Style TQFP-48 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 48-TQFP (7x7) This product's 2.5M. Data-Interface: SPI 16 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 2.7 V ~ 3.3 V. Configuration ADC The architecture of this product is Sigma-Delta . External, Internal is the reference type. 1 units Power-off control: 610 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial 3-Wire interface type Signal-to-Noise Ratio of 92 dB The ADS1602EVM. Number-of-Converters: 1 Converter 2.5 MS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 2.7 V to 5.25 V Integral Nonlinearity: 0.75 LSB Differential nonlinearity: 0.25 LSB

ADS1602IPFBR Image

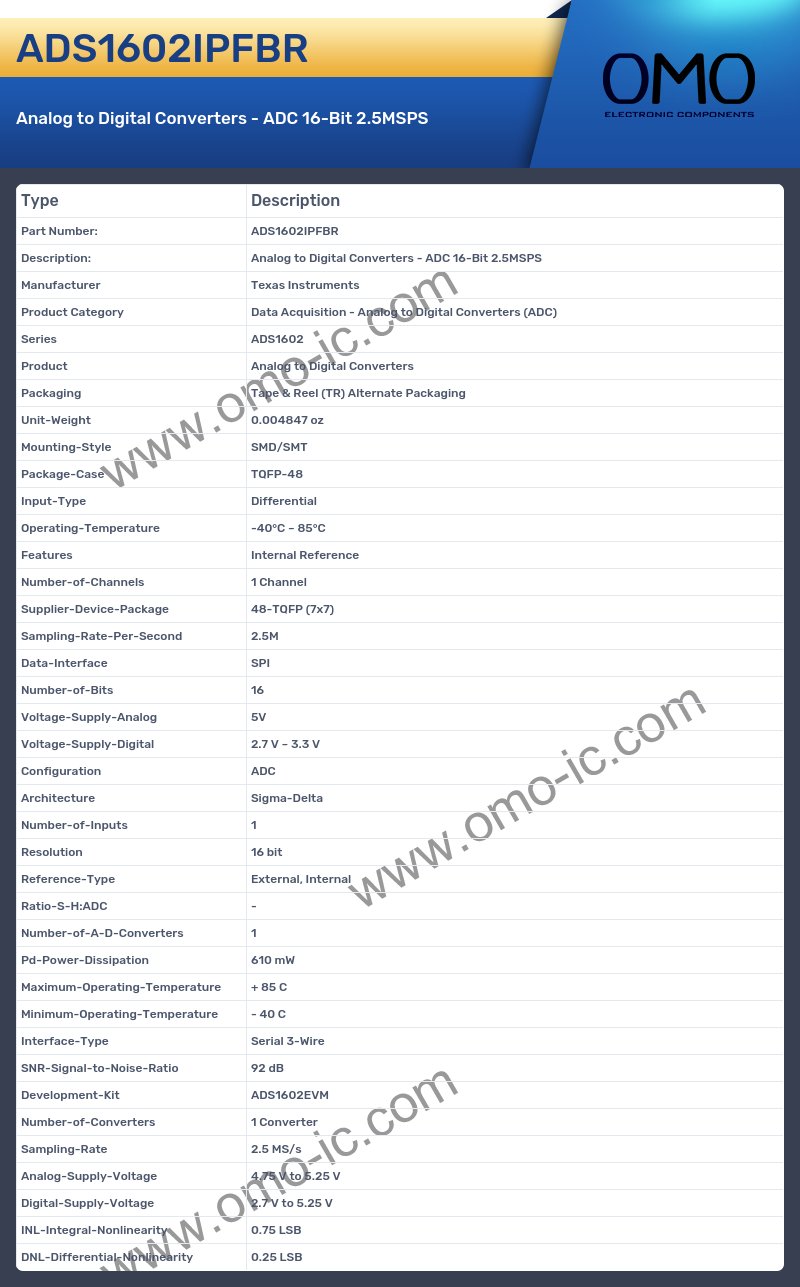

ADS1602IPFBR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS1602
• Product Analog to Digital Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.004847 oz
• Mounting-Style SMD/SMT
• Package-Case TQFP-48
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features Internal Reference
• Number-of-Channels 1 Channel
• Supplier-Device-Package 48-TQFP (7x7)
• Sampling-Rate-Per-Second 2.5M
• Data-Interface SPI
• Number-of-Bits 16
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 2.7 V ~ 3.3 V
• Configuration ADC
• Architecture Sigma-Delta
• Number-of-Inputs 1
• Resolution 16 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC -
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 610 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 3-Wire
• SNR-Signal-to-Noise-Ratio 92 dB
• Development-Kit ADS1602EVM
• Number-of-Converters 1 Converter
• Sampling-Rate 2.5 MS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 2.7 V to 5.25 V
• INL-Integral-Nonlinearity 0.75 LSB
• DNL-Differential-Nonlinearity 0.25 LSB
