ADS5281IPFP Overview

Product belongs to the ADS5281 series. This product is categorized as Analog to Digital Converters Tray Alternate Packaging is the packaging method for this product Weight of 0.012984 oz SMD/SMT Mounting-Style HTQFP-80 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: LVDS Number of channels: 8 Channel Supplier device package: 80-HTQFP (12x12) This product's 50M. Data-Interface: LVDS - Serial, SPI 12 bits The Voltage-Supply-Analog is 3 V ~ 3.6 V. The Voltage Supply Digital for this product is 1.7 V ~ 1.9 V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 8 units Power-off control: 649.5 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial interface type Signal-to-Noise Ratio of 70 dB Number-of-Converters: 8 Converter 50 MS/s Sampling Rate Analog supply voltage: 3.3 V Digital Supply Voltage: 1.7 V to 1.9 V Integral Nonlinearity: +/- 1.5 LSB Differential nonlinearity: +/- 0.75 LSB

ADS5281IPFP Image

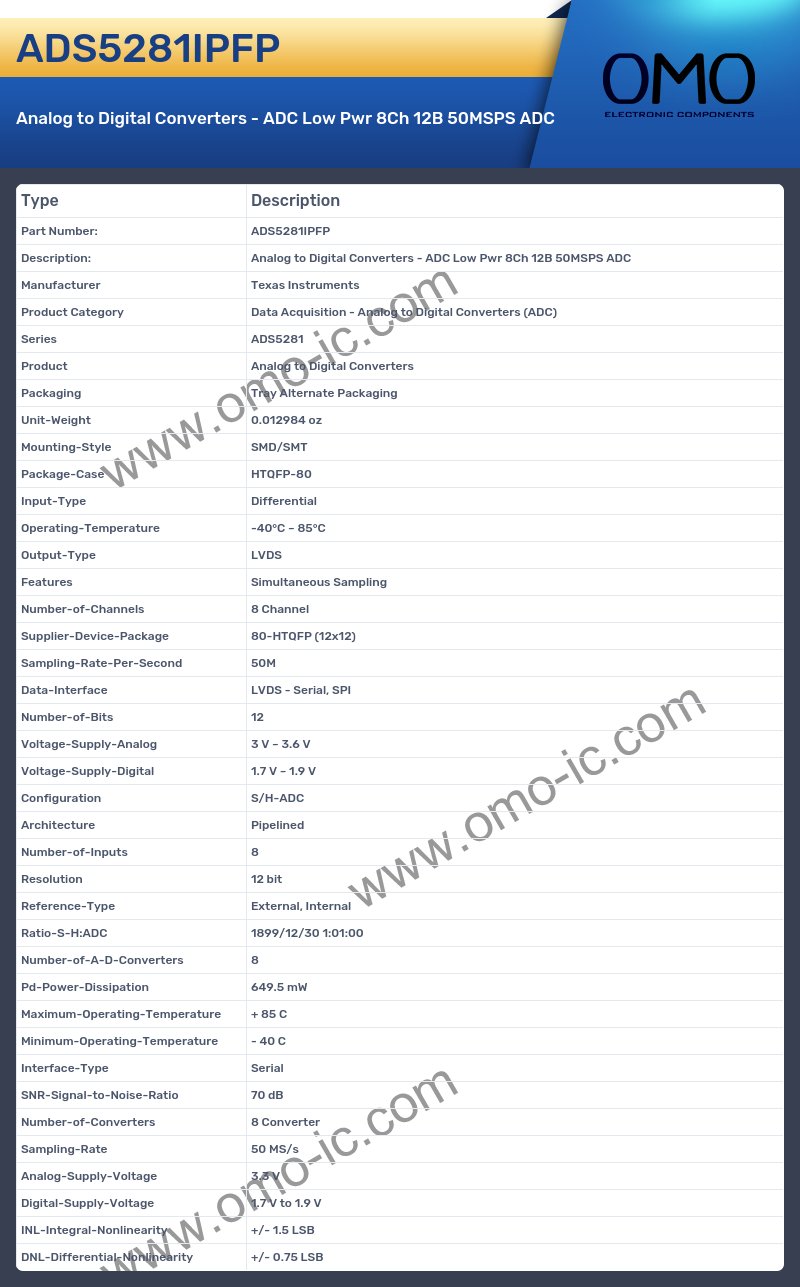

ADS5281IPFP Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS5281
• Product Analog to Digital Converters
• Packaging Tray Alternate Packaging
• Unit-Weight 0.012984 oz
• Mounting-Style SMD/SMT
• Package-Case HTQFP-80
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Output-Type LVDS
• Features Simultaneous Sampling
• Number-of-Channels 8 Channel
• Supplier-Device-Package 80-HTQFP (12x12)
• Sampling-Rate-Per-Second 50M
• Data-Interface LVDS - Serial, SPI
• Number-of-Bits 12
• Voltage-Supply-Analog 3 V ~ 3.6 V
• Voltage-Supply-Digital 1.7 V ~ 1.9 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 8
• Resolution 12 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 8
• Pd-Power-Dissipation 649.5 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial
• SNR-Signal-to-Noise-Ratio 70 dB
• Number-of-Converters 8 Converter
• Sampling-Rate 50 MS/s
• Analog-Supply-Voltage 3.3 V
• Digital-Supply-Voltage 1.7 V to 1.9 V
• INL-Integral-Nonlinearity +/- 1.5 LSB
• DNL-Differential-Nonlinearity +/- 0.75 LSB
