ADS5401EVM

ADS5401EVM Overview

Product belongs to the ADS5401 series. This product is categorized as Evaluation Modules Type: ADC This product is designed ADS540x amplifier. This product's 800M. Data-Interface: DDR LVDS 12 bits 1 units Input range: 1 Vpp Included item: Board. IC package type: ADS5401 This product operates at a 5 V supply voltage for reliable performance. This product is an Provides a platform for evaluating a two-channel 12-bit ADC operating at sampling rates of up to 800 MSPS. This tool is designed for the ADS540x. SPI USB interface type

ADS5401EVM Image

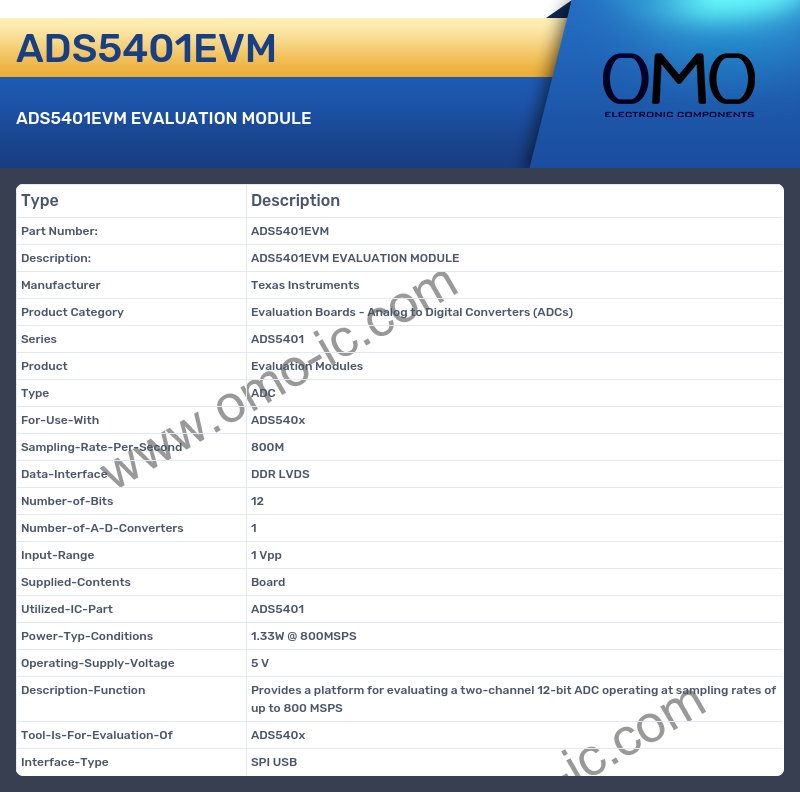

ADS5401EVM Specifications

• Manufacturer Texas Instruments
• Product Category Evaluation Boards - Analog to Digital Converters (ADCs)
• Series ADS5401
• Product Evaluation Modules
• Type ADC
• For-Use-With ADS540x
• Sampling-Rate-Per-Second 800M
• Data-Interface DDR LVDS
• Number-of-Bits 12
• Number-of-A-D-Converters 1
• Input-Range 1 Vpp
• Supplied-Contents Board
• Utilized-IC-Part ADS5401
• Power-Typ-Conditions 1.33W @ 800MSPS
• Operating-Supply-Voltage 5 V
• Description-Function Provides a platform for evaluating a two-channel 12-bit ADC operating at sampling rates of up to 800 MSPS
• Tool-Is-For-Evaluation-Of ADS540x
• Interface-Type SPI USB
