ADS5541IPAP

ADS5541IPAP Overview

Product belongs to the ADS5541 series. This product is categorized as Analog to Digital Converters Tray Alternate Packaging is the packaging method for this product Weight of 0.009108 oz SMD/SMT Mounting-Style HTQFP-64 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 64-HTQFP (10x10) This product's 105M. Data-Interface: Parallel 14 bits The Voltage-Supply-Analog is 3 V ~ 3.6 V. The Voltage Supply Digital for this product is 3 V ~ 3.6 V. Configuration S/H-ADC The architecture of this product is Pipelined . Internal is the reference type. 1 units Power-off control: 611 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 73.6 dB The ADS5541EVM. Number-of-Converters: 1 Converter 105 MS/s Sampling Rate Analog supply voltage: 3.3 V Digital Supply Voltage: 3 V to 3.6 V Integral Nonlinearity: +/- 5 LSB Differential nonlinearity: - 0.9 /1.1 LSB

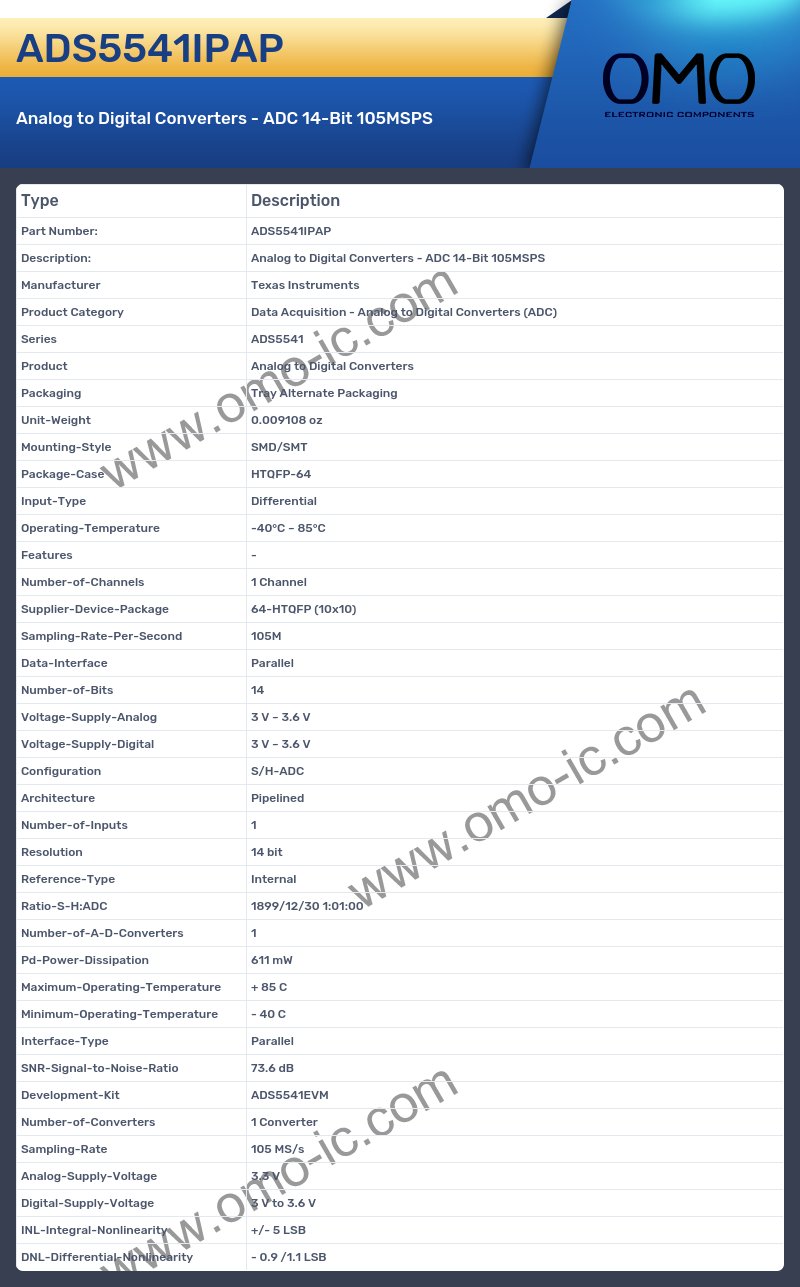

ADS5541IPAP Image

ADS5541IPAP Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS5541
• Product Analog to Digital Converters
• Packaging Tray Alternate Packaging
• Unit-Weight 0.009108 oz
• Mounting-Style SMD/SMT
• Package-Case HTQFP-64
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 64-HTQFP (10x10)
• Sampling-Rate-Per-Second 105M
• Data-Interface Parallel
• Number-of-Bits 14
• Voltage-Supply-Analog 3 V ~ 3.6 V
• Voltage-Supply-Digital 3 V ~ 3.6 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 1
• Resolution 14 bit
• Reference-Type Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 611 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 73.6 dB
• Development-Kit ADS5541EVM
• Number-of-Converters 1 Converter
• Sampling-Rate 105 MS/s
• Analog-Supply-Voltage 3.3 V
• Digital-Supply-Voltage 3 V to 3.6 V
• INL-Integral-Nonlinearity +/- 5 LSB
• DNL-Differential-Nonlinearity - 0.9 /1.1 LSB
